Description

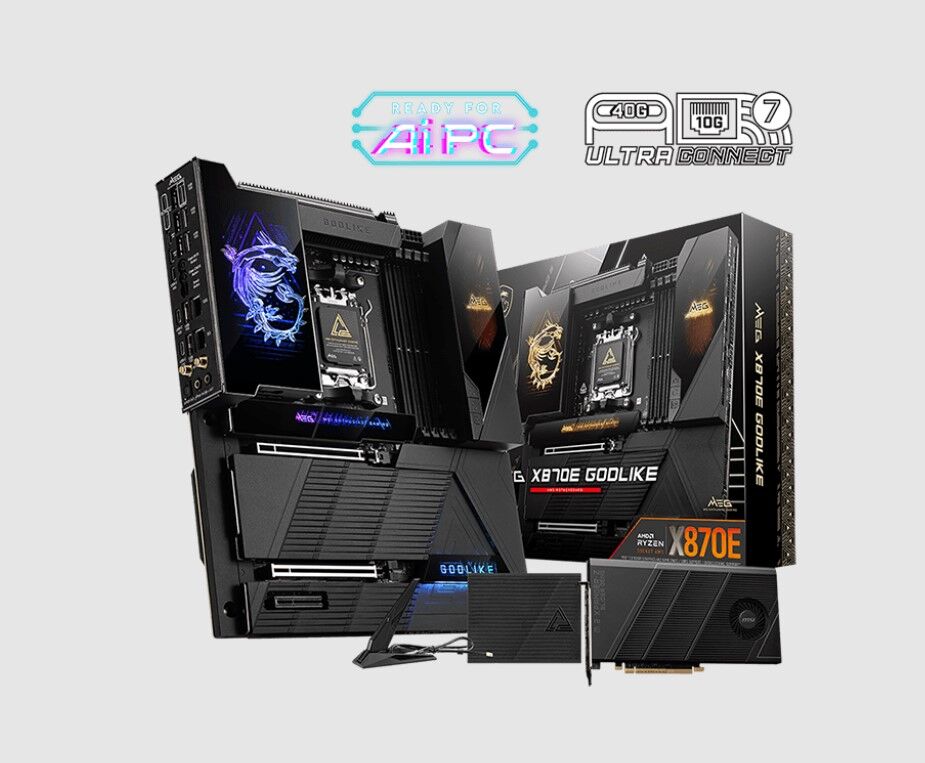

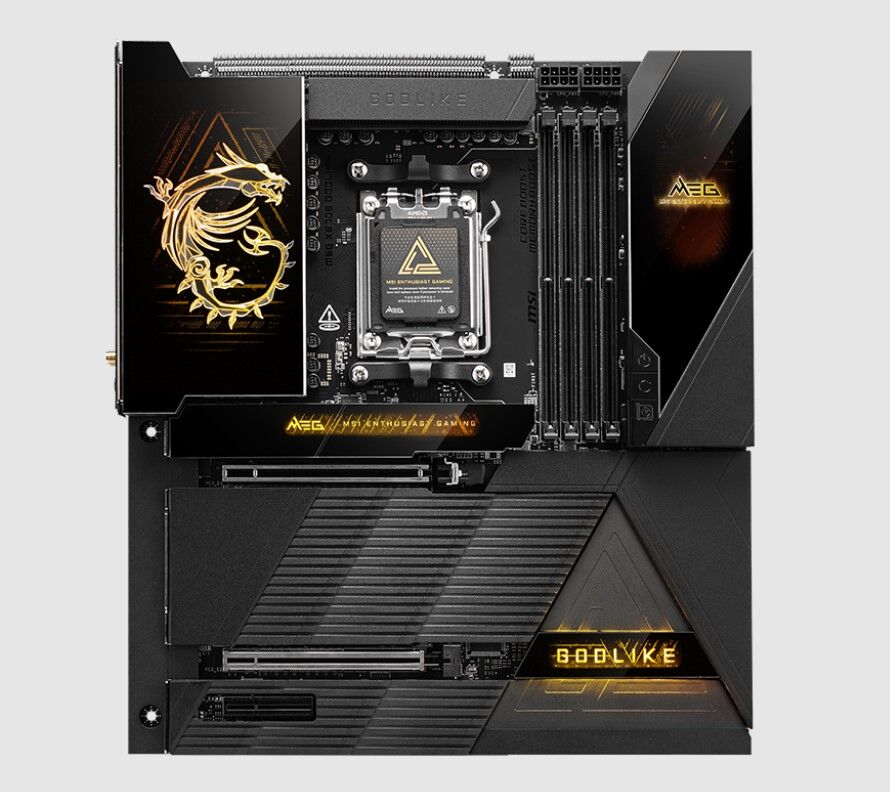

MSI MEG X870E GODLIKE, AMD X870E Socket AM5 Motherboard 4x DDR5~256GB, 2x PCIe x16, 7x M.2, 4x USB 2.0, 9x USB-C


Chipset

AMD X870E


CPU

Supports AMD Ryzen„ 9000 8000 7000 Series Desktop Processors

Socket AM5


Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB


Onboard Graphics

2x Type-C DisplayPort

USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz


Slot

2x PCI-E x16 slot

1x PCI-E x4 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)


Audio

Realtek ALC4082 Codec ESS9219Q Combo DAC HPA

7.1-Channel USB High-Performance Audio


Storage

7x M.2


RAID

Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices

Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices

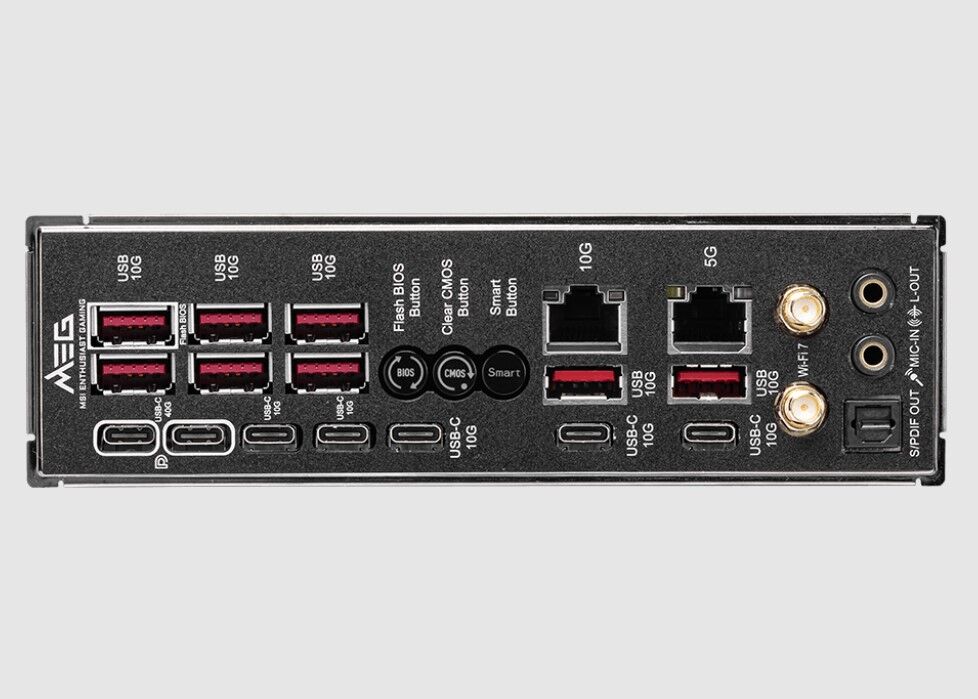

USB

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Front)

8x USB 10Gbps Type A (Rear)

5x USB 10Gbps Type C (Rear)

1x USB 10Gbps Type C (Front)

1x USB 20Gbps Type C (Front)

2x USB 40Gbps Type C (Rear)


LAN

1x Marvell AQC113CS 10Gbps LAN

1x Realtek 8126 5Gbps LAN


WIRELESS LAN BLUETOOTH

Wi-Fi 7 Solution

The Wireless module is pre-installed in the M.2 (Key-E) slot



OPERATING SYSTEM

Support for Windows 11 64-bit


PCB Info

ATX

304.8mmx277mm

Specifications
SKU MBM-X870EGODLIKE
Barcode # 4711377276221
Brand MSI
Shipping weight 1.9200kg
Shipping width 0.174m
Shipping height 0.368m
Shipping length 0.444m

MSI MEG X870E GODLIKE, AMD X870E Socket AM5 Motherboard 4x DDR5~256GB, 2x PCIe x16, 7x M.2, 4x USB 2.0, 9x USB-C

$2,400.00
RRP $2,860.00 save 16%
Only 1 Left!
