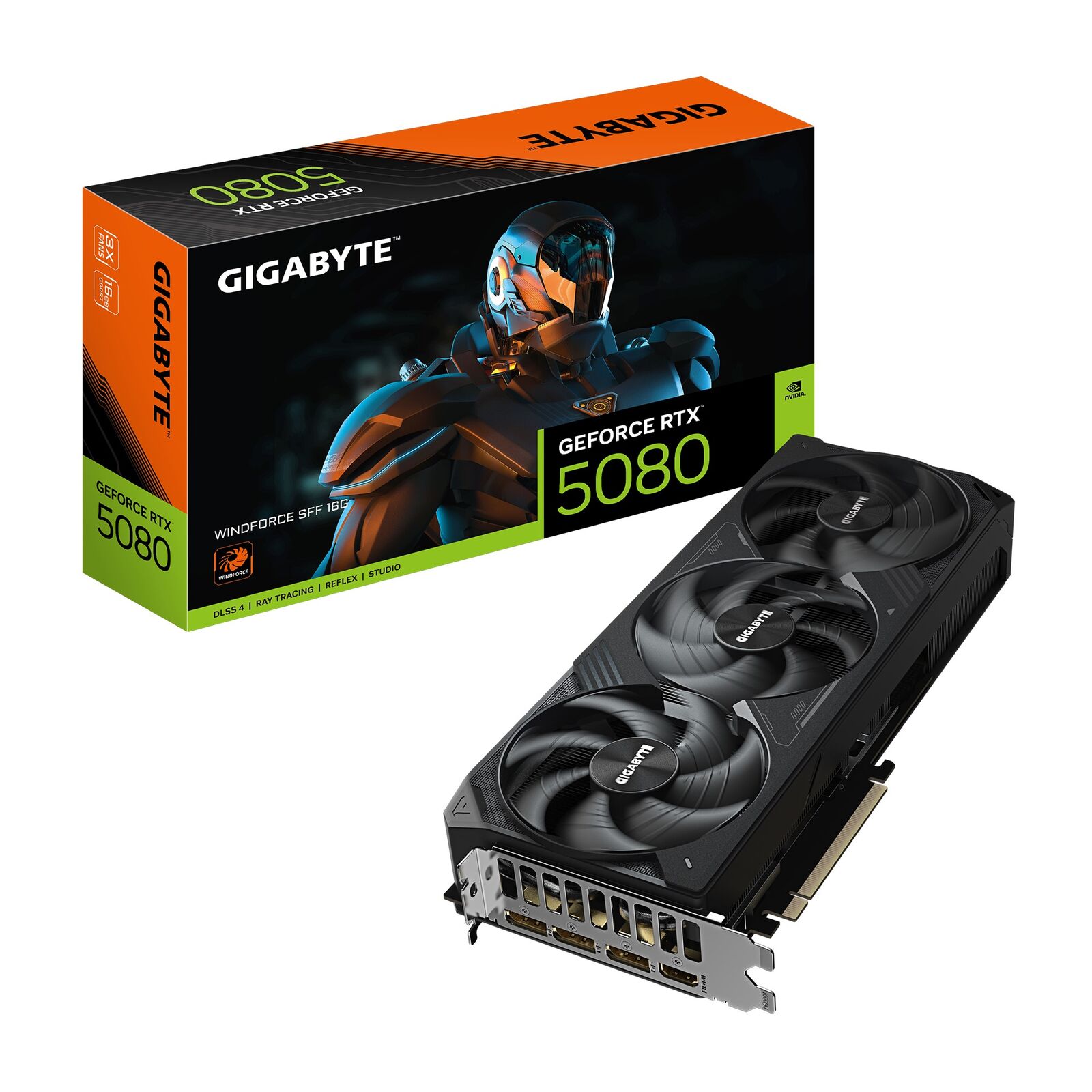

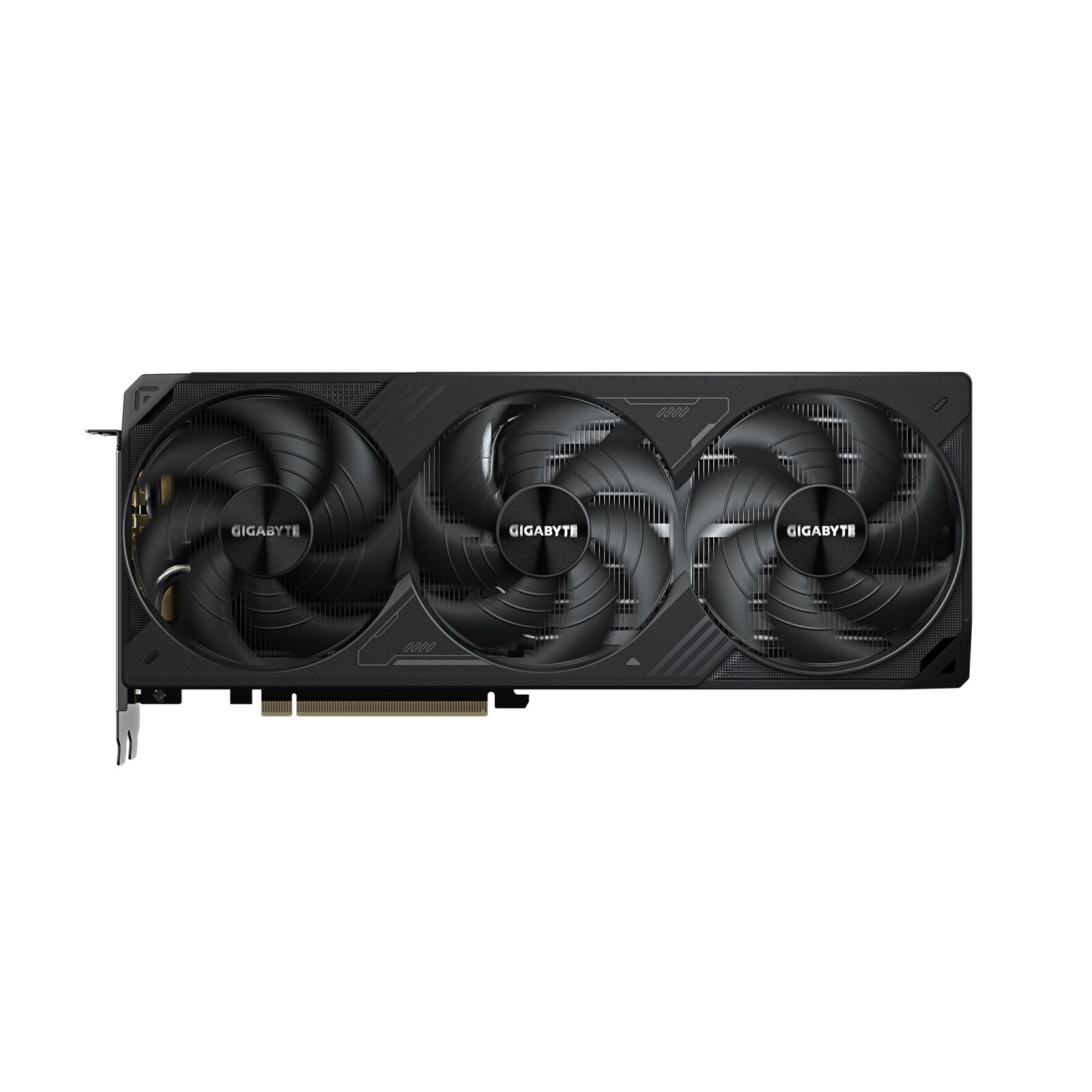

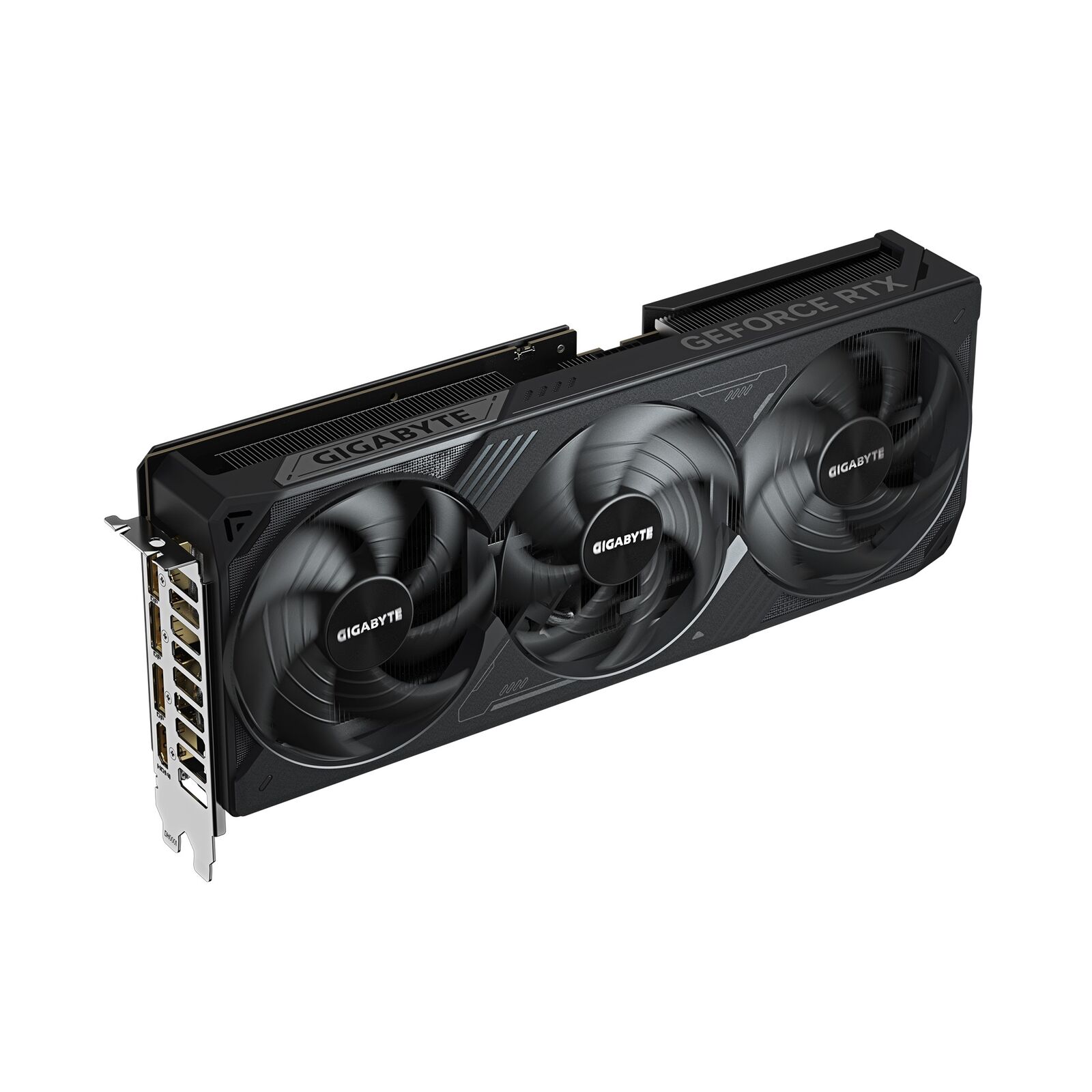

Gigabyte GeForce RTX„ 5080 WINDFORCE SFF 16G, 2617 MHz, CUDA 10752. 30 Gbps, GDDR7, 256 bit PCI-E 5.0, PSU 850W, DisplayPort 2.1b x3 HDMI 2.1b x1

SPECIFICATION

Graphics Processing

GeForce RTX„ 5080

Core Clock

2617 MHz

CUDA Cores

10752

Memory Clock

30 Gbps

Memory Size

16GB

Memory Type

GDDR7

Memory Bus

256 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680 x 4320

Multi-view

4

Card size

L=304 W=126 H=50 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

OpenGL 4.6

Recommended PSU

850W

Power Connectors

16 pin1

Output

DisplayPort 2.1b x3

HDMI 2.1b x1

Accessories

1. VGA manual

2. 1x 12V-2x6 to 3x PCIe 8pin adapter

3. Versatile VGA holder

4. Versatile VGA holder manual

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX„ 5080

Integrated with 16GB GDDR7 256bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade thermal conductive gel

Dual BIOS (Performance Silent)

NVIDIA SFF-ready

Reinforced structure

Versatile VGA holder

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle fts wing. This design reduces air resistance and noise levels, resulting in up to a 53.6pct increase in air pressure and a 12.5pct increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE VAPOR CHAMBER COMPOSITE COPPER HEAT PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENCE IN ESSENTIAL

DUAL BIOS (Performance Silent)

The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.

NVIDIA SFF-READY

Complying with NVIDIA fts small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I O bracket, provides exceptional structural integrity.

VERSATILE VGA HOLDER

Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.
