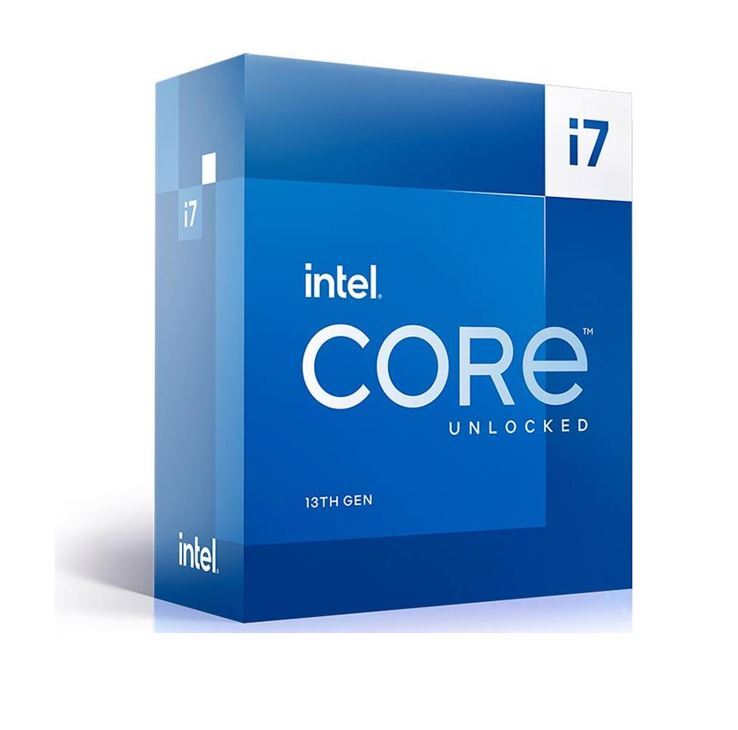

Product Collection 13th Generation Intel Core„ i7 Processors

Code Name Products formerly Raptor Lake

Vertical Segment Desktop

Total Cores 16

# of Performance-cores 8

# of Efficient-cores 8

Total Threads 24

Max Turbo Frequency 5.40 GHz

Intel Turbo Boost Max Technology 3.0 Frequency ¡ 5.40 GHz

Performance-core Max Turbo Frequency 5.30 GHz

Efficient-core Max Turbo Frequency 4.20 GHz

Performance-core Base Frequency 3.40 GHz

Efficient-core Base Frequency 2.50 GHz

Cache 30 MB Intel Smart Cache

Total L2 Cache 24 MB

Processor Base Power 125 W

Maximum Turbo Power 253 W

Embedded Options Available No

Max Memory Size (dependent on memory type) 128 GB

Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s

Max # of Memory Channels 2

Max Memory Bandwidth 89.6 GB/s

ECC Memory Supported ¡ Yes

Processor Graphics ¡ Intel UHD Graphics 770

Graphics Base Frequency 300 MHz

Graphics Max Dynamic Frequency 1.60 GHz

Graphics Output eDP 1.4b | DP 1.4a | HDMI 2.1

Execution Units 32

Max Resolution (HDMI)¡ 4096 x 2160 @ 60Hz

Max Resolution (DP)¡ 7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)¡ 5120 x 3200 @ 120Hz

DirectX* Support 12

OpenGL* Support 4.5

OpenCL* Support 3

Multi-Format Codec Engines 2

Intel Quick Sync Video Yes

Intel Clear Video HD Technology Yes

# of Displays Supported ¡ 4

Device ID 0xA780

Direct Media Interface (DMI) Revision 4

Max # of DMI Lanes 8

Scalability 1S Only

PCI Express Revision 5.0 and 4.0

PCI Express Configurations ¡ Up to 1x16+4 | 2x8+4

Max # of PCI Express Lanes 20
