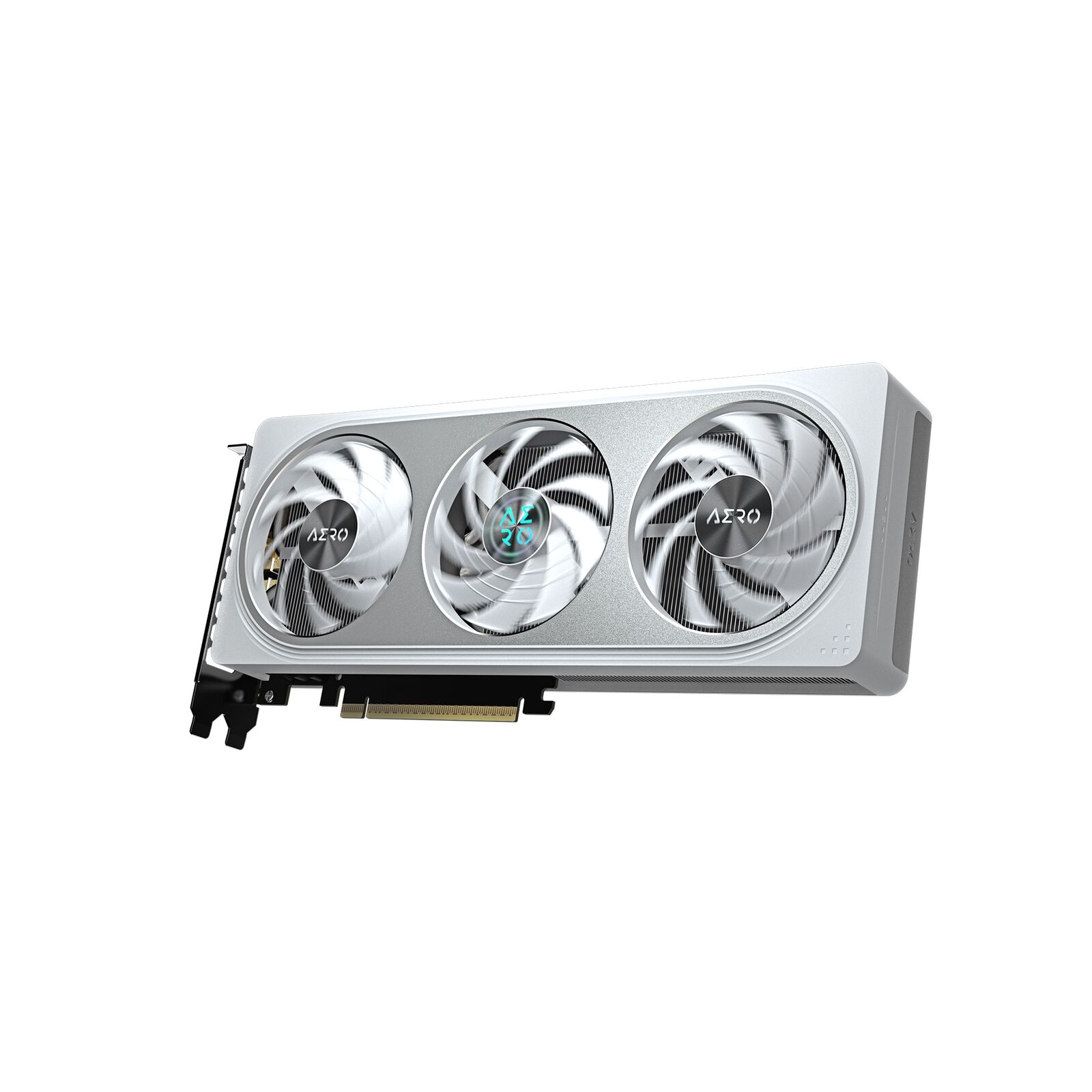

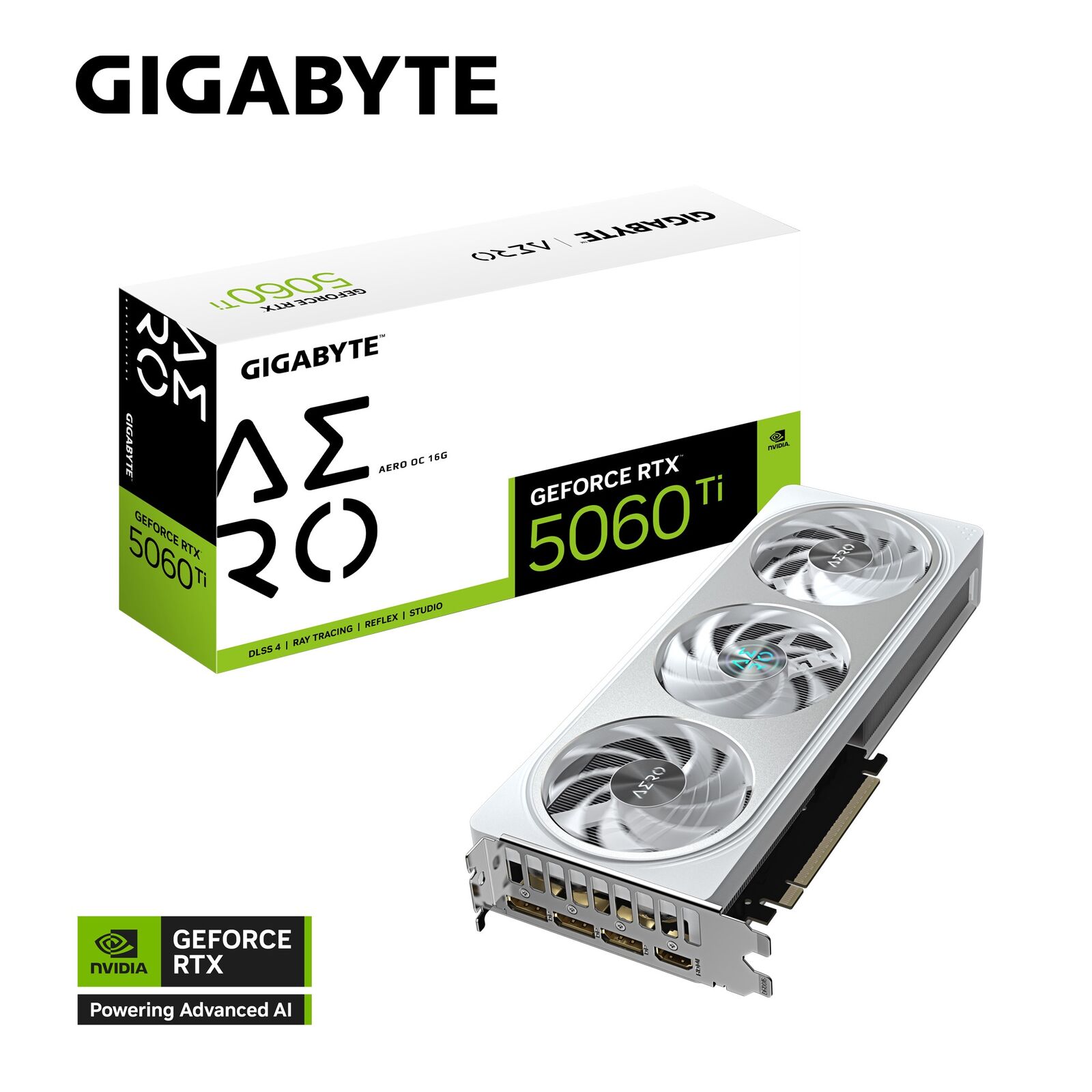

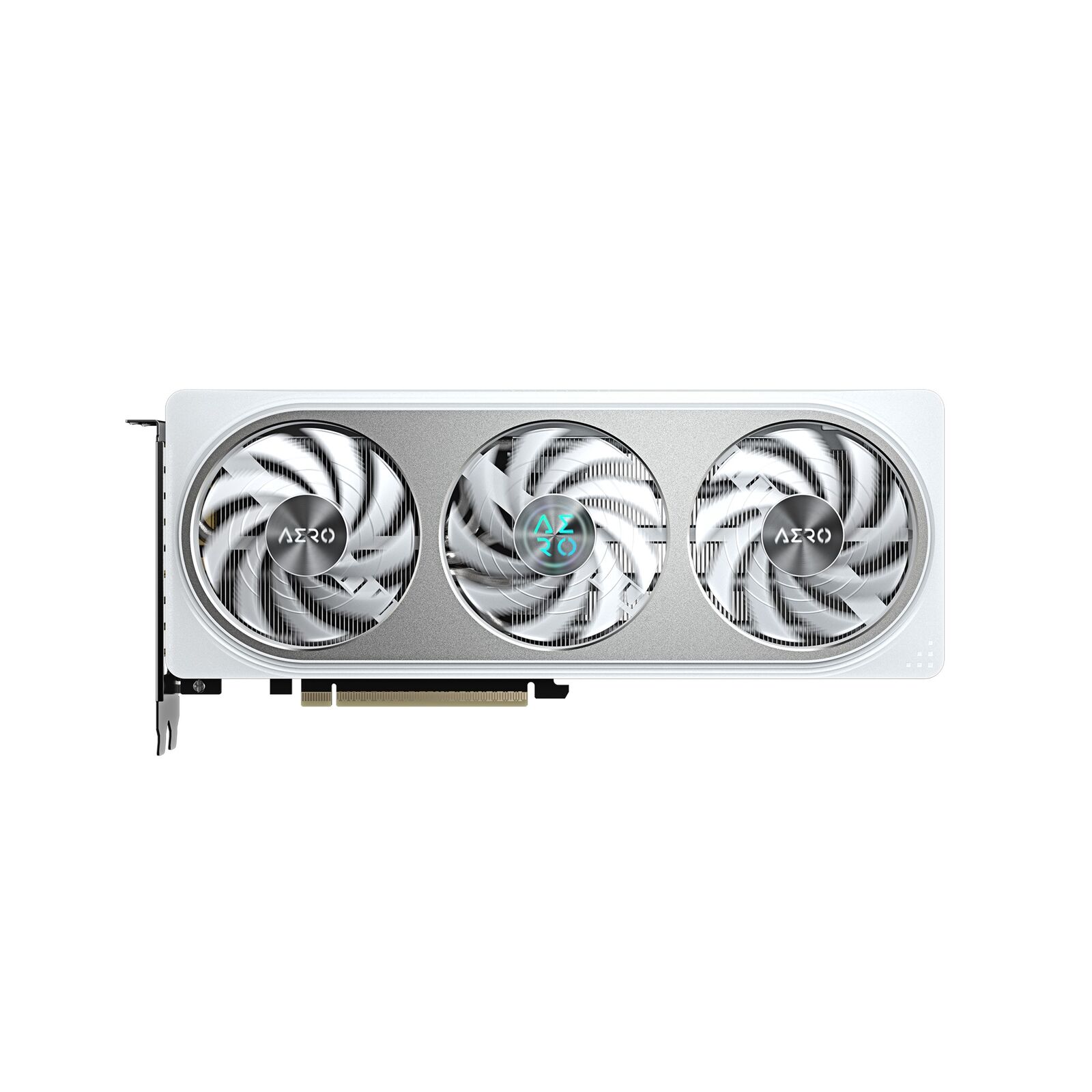

Gigabyte GeForce RTX„ 5060 Ti AERO OC 16G, 2647 MHz, CUDA TBD, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b 3 HDMI 2.1b 1

SPECIFICATION

Graphics Processing

GeForce RTX„ 5060 Ti

Core Clock

2647 MHz (Reference card :2572 MHz)

CUDA Cores

TBD

Memory Clock

28 Gbps

Memory Size

16 GB

Memory Type

GDDR7

Memory Bus

128 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=281 W=117 H=40 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

650W

Power Connectors

8 Pin1

Output

DisplayPort 2.1b 3

HDMI 2.1b 1

Accessories

Quick guide

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX„ 5060 Ti

Integrated with 16GB GDDR7 128bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade Thermal conductive gel

RGB Lighting

Dual BIOS (Performance Silent)

Reinforced structure

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

WINDFORCE

COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

Drawing inspiration from water, the back panel fts ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water fts shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan fts rotation creates expanding ripples, infusing natural movement into the details.

RGB LIGHTING

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I O bracket, provides exceptional structural integrity.
