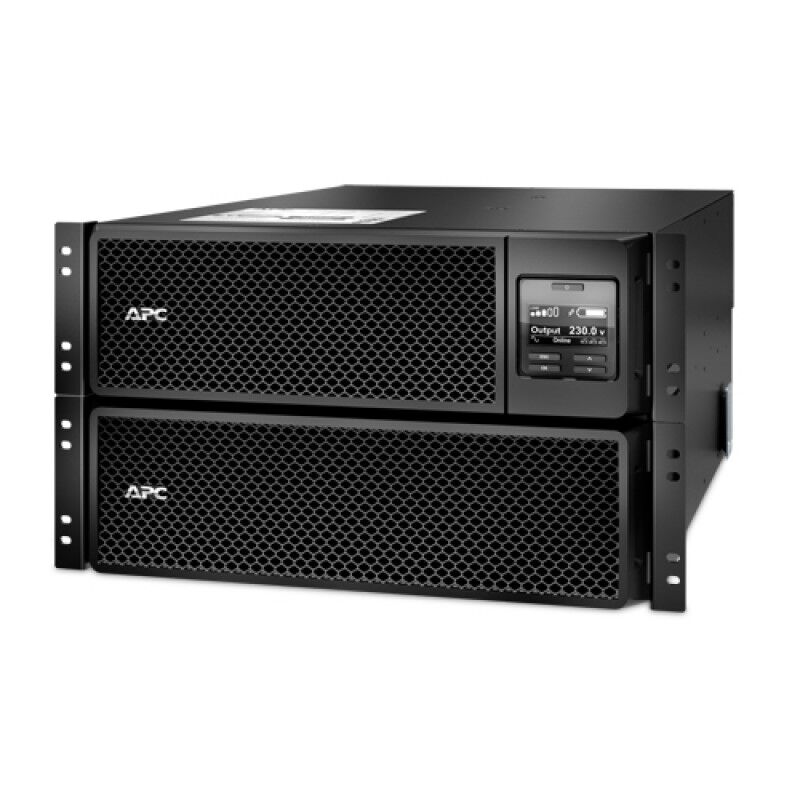

APC Smart-UPS On-Line, 10kVA 10kW, Rackmount 6U, 230V 400V, 6x C134x C19 IEC outlets, Network CardSmartSlot, Extended runtime, W rail kit

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 10000VA 10000W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown.

Main Input Voltage 230 V 400 V 3 phases

Other Input Voltage 220 V 240 V 380 V 415 V

Main Output Voltage 230 V

Other Output Voltage 220 V 240 V

Rated power in W 10000 W

Rated power in VA 10000 VA

Output connection type- 6 IEC 60320 C13, 3 IEC Jumpers, 4 IEC 60320 C19

Output connector type Hard wire 3-wire (H N E) 1

Number of rack unit 6U

Provided equipment- CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web SNMP management card

Network frequency 40...70 Hz auto-sensing

Number of input connectors 1 hard wire 3-wire (1P N E) 1 hard wire 5-wire (3P N E)

Input voltage limits 100...275 V adjustable (half load) 173...476 V adjustable (half load)

Maximum configurable power in VA 10000 VA

Maximum configurable power in W 10000 W

Output frequency 50 60 Hz - 3 Hz sync to mains

Wave type Sine wave

Harmonic distortion Less than 2 pct

Crest factor 3 : 1

Bypass type Internal bypass (automatic and manual)

Ambient air temperature for operation 0¦40 degreeC

Relative humidity 0¦95 pct non-condensing

Operating altitude 0...10000 ft

Ambient air temperature for storage -15¦45 degreeC

Storage Relative Humidity 0¦95 pct non-condensing

Storage altitude 0.00¦15240.00 m

Acoustic level 55 dBA

Heat dissipation 1947 Btu h

Replacement Battery -APCRBC140

Compatible Spare parts- ACF127, W870-8135

Compatible Wireless Communication Adapter-AP9834
