Description

8Ware 350m CAT6A Ethernet LAN Cable Roll Blue Bare Copper Twisted Core PVC Jacket


CAT6A cables support networking at gigabit speeds and are backwards compatible with CAT5E cables. Colour coded blue for immediate and easy identification.


Item A

Conductor Construction(mm) 1/0.508±0.005

Material Bare Copper

Cabling OD (mm) 0.508

Insulation Material HDPE

OD(mm) 0.90±0.05

Avg. Thickness (mm) 0.18

Color 1ã�2ã�3ã�4

Cores Twisted Yes

Drain Construction(mm) -----

Material -----

Al Constructive Side -----

Overlap Rate -----

Mylar Overlap Rate -----

Assemble Cabling OD (mm) 5.00 (Ref.) + Filler

Mylar Overlap Rate -----

Al Constructive Side -----

Drain Construction(mm) -----

Material -----

Braid Construction(mm) -----

Material -----

Coverage -----

Jacket Material PVC (Bright)

OD(mm) 6.20±0.20

Avg. Thickness (mm) 0.6

Color BLUE (PVC001-6027)PT287C

Jet Print Color BLACK


Electrical Characters:

1. Voltage Rating: 30V Temperature Rating: 60„ƒ

2. Dielectric Strength: AC-500V/MIN

3. Insulation resistance: 100M (OHMS * KM MIN at 20„ƒï¼‰


Physical Characters:

Test Object Jacket

Specifications
SKU CB8W-CAT6A-EXT350SH
Barcode # 9341756019986
Brand 8ware
Shipping weight 17.1000kg
Shipping width 0.500m
Shipping height 0.340m
Shipping length 0.500m
Assembled length 4.000m
Assembled height 2.400m
Assembled width 4.000m

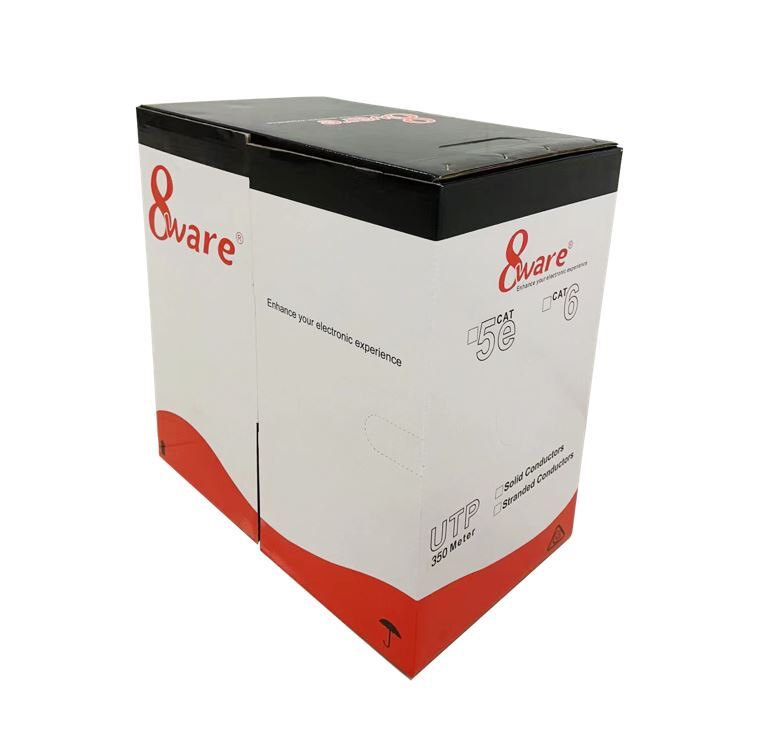

8Ware 350m CAT6A Ethernet LAN Cable Reel Box Blue Bare Copper Twisted Core PVC Jacket 305m

$254.04
RRP $475.20 save 47%

or 4 payments of $63.51 with Learn more

In Stock

Product Information

SKU:

CB8W-CAT6A-EXT350SH

Brand:

8ware

Barcode #:

9341756019986

Shipping Weigth:

17.1000kg

Warranty:

12
