Description

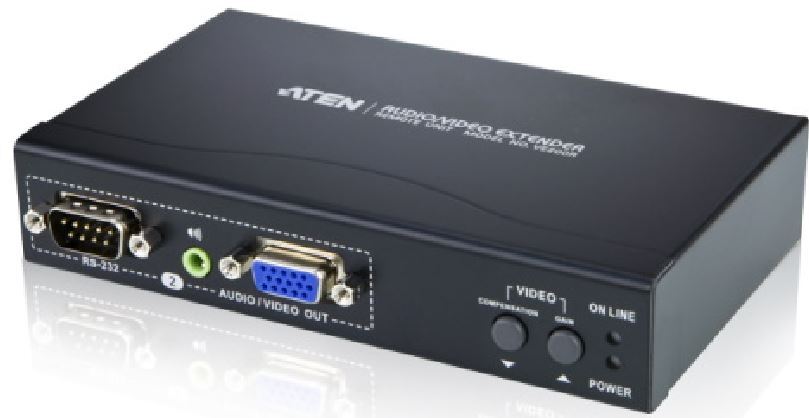

Aten VGA/Audio/RS-232 Cat 5 Receiver with Dual Output (1280 x 1024@200m) (LS)


Features:

Transmission distance up to 200 m*

High-quality video “ up to 1920x1200@60Hz at 30 m, 1600x1200@60Hz at 150 m, 1280x1024@60Hz at 200 m

Audio and serial enabled

Supports dual outputs

Two gain control modes for sharpest picture quality

Video gain and compensation adjustable via OSD

IR receiver for quick and easy video quality adjustment

IR remote control for screen on/off and video adjustment at remote site

Automatic and adjustable gain control “ adjust signal strength to compensate for distance

Provide a RS-232 channel for selection**

Follows VESA FDMI mount standard

Supports DDC for the local monitor

Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors


Video Output

Interfaces 2 x HDB-15 Female (Blue)

Impedance 75 �

Video

Max. Bandwidth 300 MHz

Max. Resolutions / Distance Up to 1920 x 1200@30m; 1600 x 1200@150m

Audio Outputs

Interfaces 2 x Mini Stereo Jack Female (Green)

Control

RS-232 2 x DB-9 Male (Black)

Connectors

Power 1 x DC Jack (Black)

Power Consumption DC5.3V:3.65W:17BTU

Environmental

Operating Temperature 0-50°C

Storage Temperature -20 - 60°C

Humidity 0 - 80% RH, Non-Condensing

Physical Properties

Housing Metal

Weight 0.35 kg ( 0.77 lb )

Dimensions (L x W x H) 13.90 x 8.80 x 2.86 cm

(5.47 x 3.46 x 1.13 in.)

Carton Lot 5 pcs

Specifications
SKU KVA-VE200R-AT-U
Barcode # 4710423776487
Brand Aten
Shipping weight 0.7600kg
Assembled length 0.240m
Assembled height 0.162m
Assembled width 0.064m

Aten VGA/Audio/RS-232 Cat 5 Receiver with Dual Output (1280 x 1024@200m) (LS)

$76.56
RRP $299.00 save 74%

or 4 payments of $19.14 with Learn more

Sold Out
