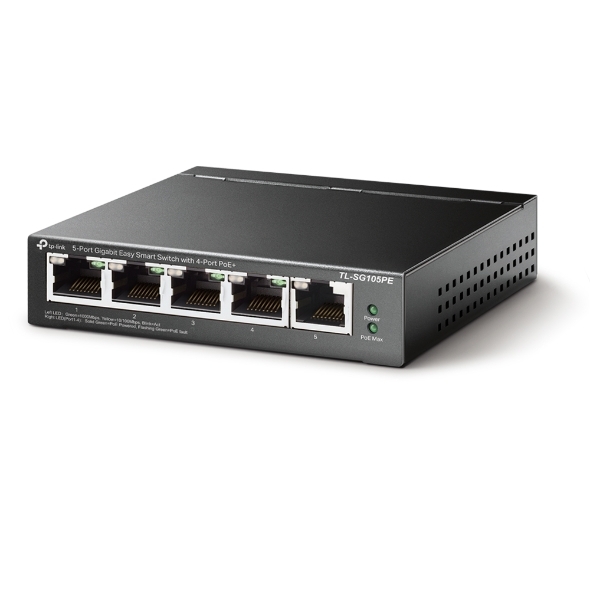

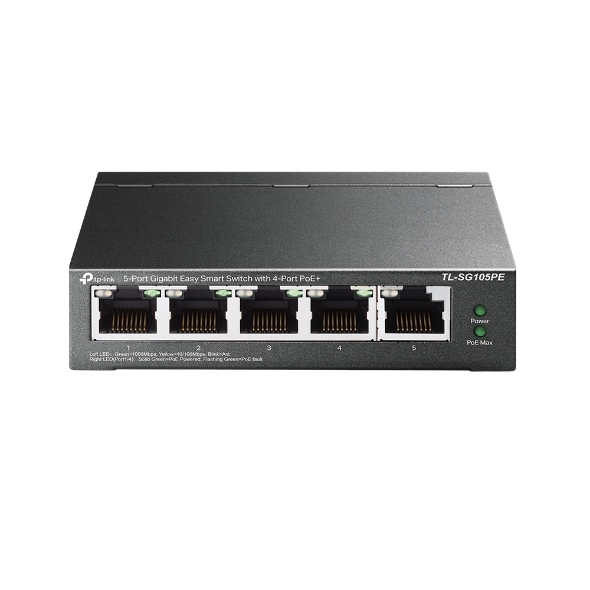

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Five 10/100/1000Mbps RJ45 ports

Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable

Supports PoE power up to 65 W for all PoE ports

Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

Simple network set-up on top of plug-and-play connectivity

Web-based user interface and Easy Smart Configuration Utility simplify configuration

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,

IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at

Interface Five 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A)

PoE Ports (RJ45) Standard: 802.3 af/at compliant

PoE Ports: Port 1- Port 4

PoE Power Budget: 65 W

Max Power Consumption 4.52 W (220V/50Hz with no PD connected)

75.16 W (220V/50Hz with 65 W PD connected)

Max Heat Dissipation 15.41 BTU/h (with no PD connected)

256.30 BTU/h (with 65 W PD connected)

PERFORMANCE

Switching Capacity 10 Gbps

Packet Forwarding Rate 7.44 Mpps

MAC Address Table 2 K

Packet Buffer Memory 1.5 Mb

Jumbo Frame 16 KB

SOFTWARE FEATURES

Quality of Service Support Port-Based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

PoE Auto Recovery

Extend Mode

VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Management Web-based GUI
