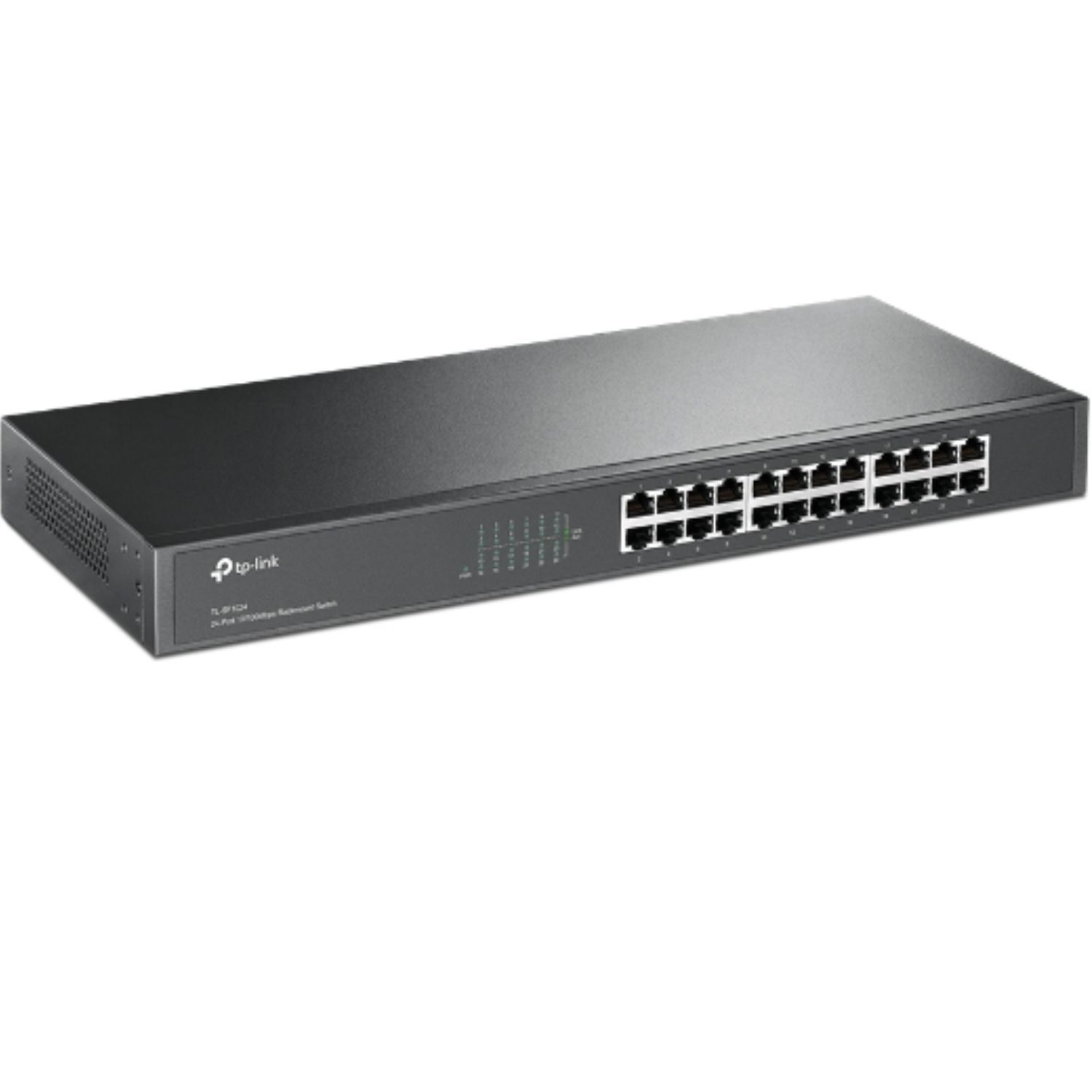

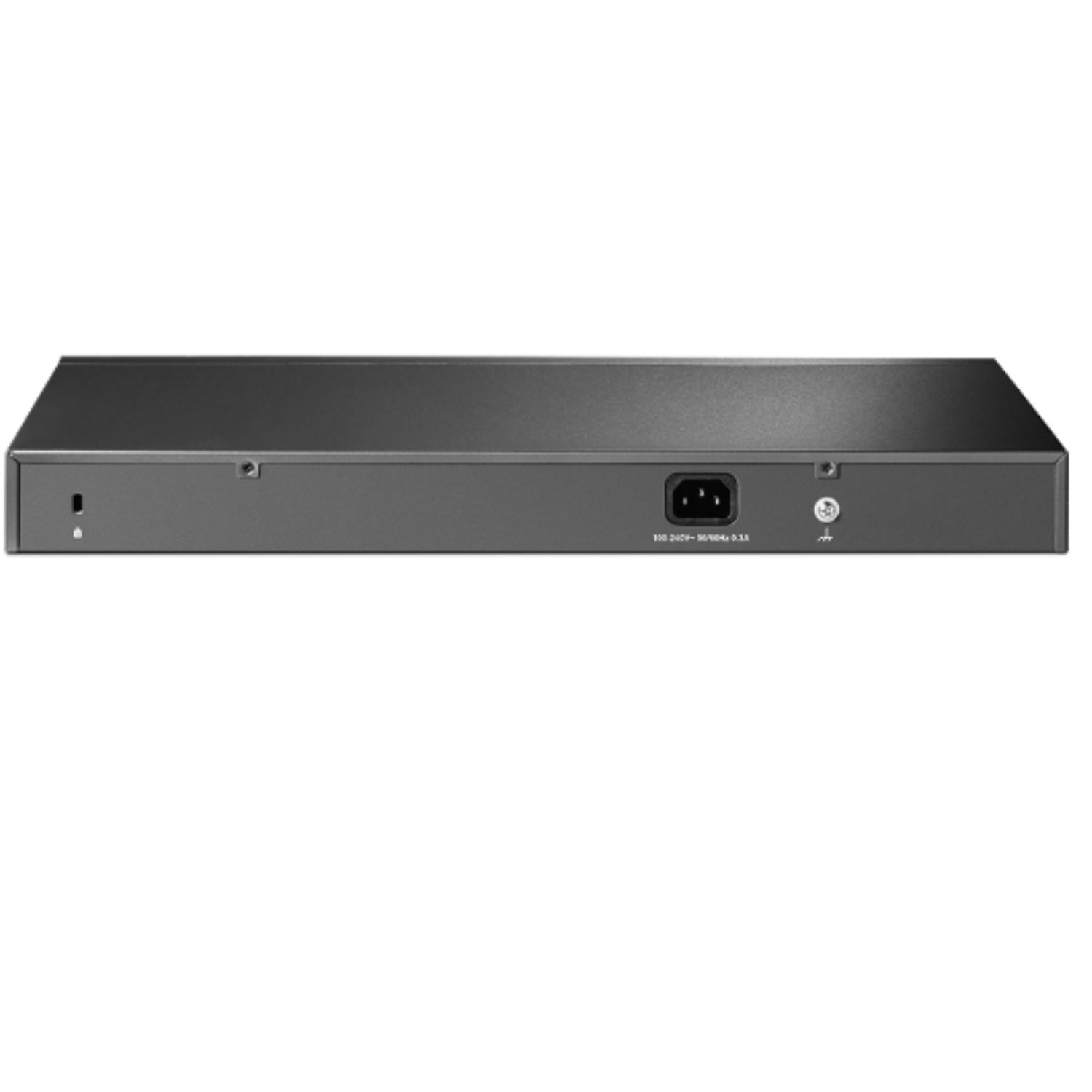

TP-Link TL-SF1024 24-Port 10/100Mbps Rackmount Switch Unmanaged

24 10/100Mbps RJ45 ports

Innovative energy-efficient technology saves power up to 75%

Supports MAC address self-learning and auto MDI/MDIX

Standard 19-inch rack-mountable steel case

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Interface 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity Fanless

Power Supply 100-240VAC, 50/60Hz

Power Consumption Maximum: 3.53W (220V/50Hz)

Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)

PERFORMANCE

Switching Capacity 4.8Gbps

Packet Forwarding Rate 3.57Mpps

MAC Address Table 8K

Buffer Memory 2Mb

Green Technology Innovative energy-efficient technology saves power up to 75%

Transfer Method Store-and-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents 24-Port 10/100Mbps Rackmount Switch

Power Cord

Installation Guide

Rackmount Kit

Rubber Feet

System Requirements Microsoft Windows 8, 7,Vista„, XP or MAC OS, NetWare, UNIX or Linux.

Environment Operating Temperature: 0„ƒ~40„ƒ (32„‰~104„‰);

Storage Temperature: -40„ƒ~70„ƒ (-40„‰~158„‰);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing

What This Product Does

The 24-Port 10/100Mbps Rackmount Switch TL-SF1024 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
