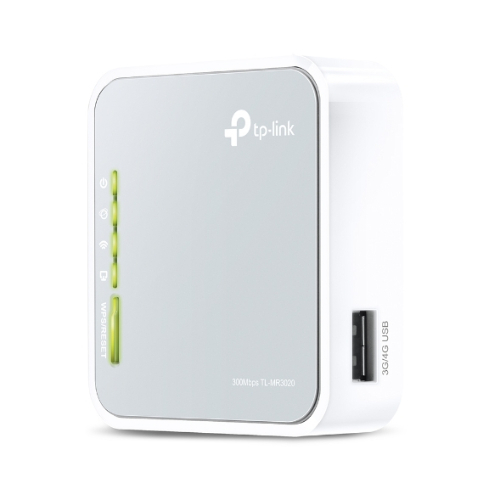

TP-Link TL-MR3020 Portable 3G/4G Wireless N Router 2.4GHz (150Mbps) 802.11bgn 1x100Mbps WAN/LAN 1xUSB 1xmini USB Internal Antennas

Please note this product does not include a modem.

Share a 3G/4G* mobile connection, compatible with 120+ LTE/HSPA+/HSPA/UMTS/EVDO 3G/4G USB modems, tested in the field

Travel-size Design, small and light enough to take on the road, enables users to share a 3G/4G* mobile connection wherever 3G/4G* coverage is available

Wireless speed is up to 150Mbps

Three modes available for different situations: 3G/4G* Router, WISP Client Router and Travel Router Mode (AP Mode)

With 3G/4G* and WAN failover back-up strategy, TL-MR3020 can provide a sustained internet connection.

HARDWARE FEATURES

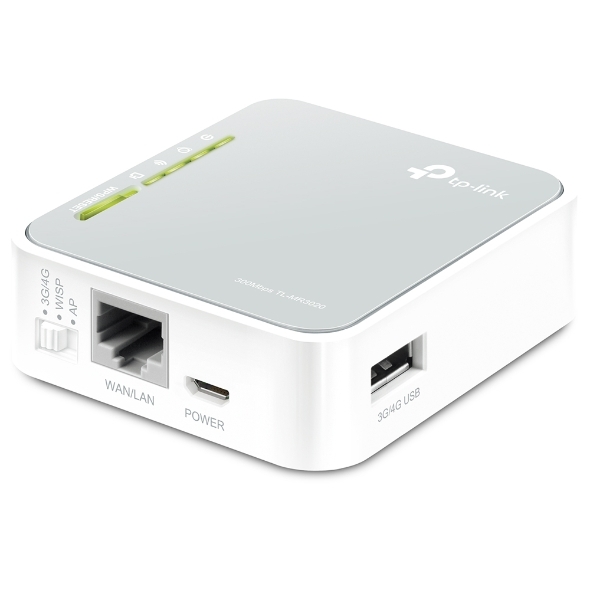

Interface 1 10/100Mbps WAN/LAN Port, USB 2.0 Port for 3G/4G modem, a mini USB Port for power supply.

Button Reset Button, Mode Switch

External Power Supply 5VDC/1.0A

Dimensions ( W x D x H ) 2.9 x 2.6 x 0.9 in. (74 x 67 x22 mm)

Antenna Type Internal Antenna

WIRELESS FEATURES

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency 2.4-2.4835GHz

Transmit Power <20dBm

Wireless Modes 3G Router, Travel Router (AP), WISP Client Router

Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering

SOFTWARE FEATURES

Security Firewall, MAC filtering, Denial of Service (DoS)

DHCP Server, DHCP Client List, Address Reservation

Port Forwarding Virtual Server, Port Triggering, DMZ, UPnP

Access Control Parental Control, Host List, Access Schedule, Rule Management

OTHERS

Certification CE, FCC, RoHS

Package Contents TL-MR3020 router, QIG, Power Adapter, USB Cable, Resource CD, Ethernet Cable

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista„ or Windows 7, 10, MAC OS, NetWare, UNIX or Linux.

Environment Operating temperature:-10„ƒ~60„ƒ

Storage Temperature: -40„ƒ~80„ƒ

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
