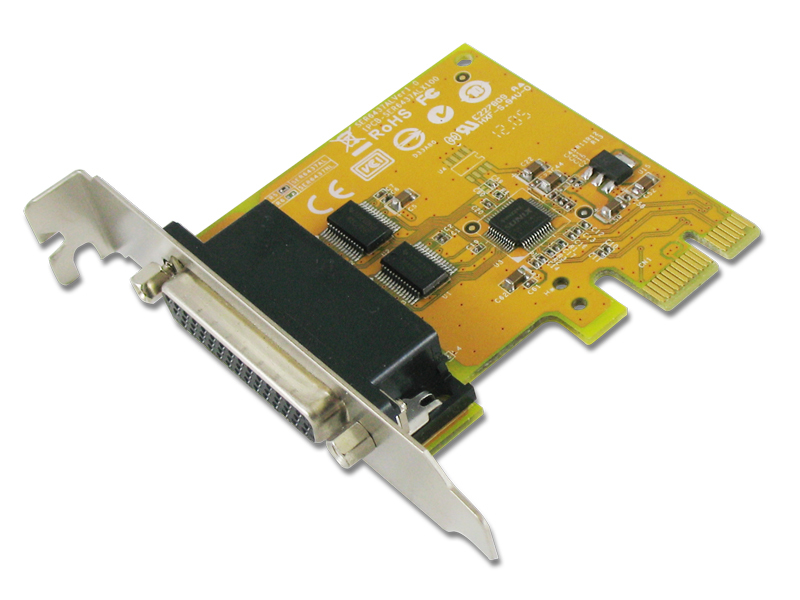

Sunix SER6437A PCIE 2-port RS-232 Low Profile PCI Express Board

Expands two independent RS-232 serial ports with communication speeds up to 115.2Kbps.

With high reliable SUNIX SUN2212 native PCI Express 16C950 UART controller.

Designed to meet PCI Express Base Specification Revision 2.0.

Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.

On-chip hardware auto flow control to guarantee no data loss.

Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.

Plug-n-Play, I/O address and IRQ assigned by BIOS.

Low profile bracket design idea for slim or portable PC.

Certified by CE, FCC, RoHS, and Microsoft WHQL approval.

Support Microsoft Windows, Linux, and DOS.

General

Interface RS-232

Controller SUNIX SUN2212 (16C950 UART Compatible)

BUS PCI Express Spec 2.0, Single-Lane (x1)

IRQ & IO Assigned by System

Serial Communication

Interface RS-232

No. of Port 2-port

FIFO 128byte Hardware

Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI

Baud rate 50bps ~ 115.2Kbps

Stop bit 1, 1.5, 2

Parity even, odd, none, mark, space

Flow Control None, Xon/Xoff, RTS/CTS

Protection ±15KV ESD protection for each signal Human Body Model (HBM)

±15KV IEC1000-4-2 Air Gap Discharge

±8KV IEC1000-4-2 Contact Discharge

PCB Connector DB44 Female

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)

Windows Server 2003 / 2008 / 2012 / 2016 (X64)

Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009

Linux Linux 2.x / 3.x / 4.x / 5.3

DOS DOS

*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris

*IBM OS/2 WARP 3/WARP 4

Dimension

PCB Dimension 65 x 88 mm

Bracket Low Profile 80 mm

Bracket Space 1
