Description

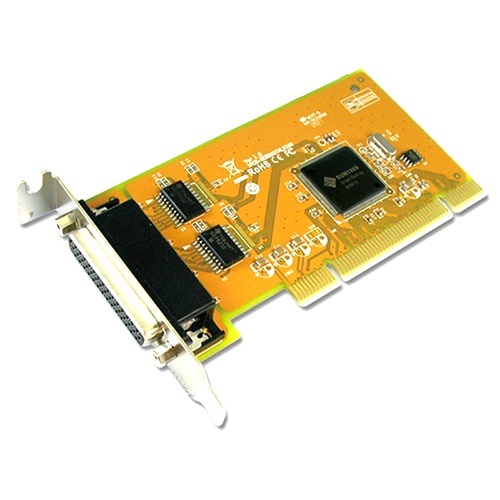

Sunix COMCARD-2LP Dual Port Serial IO Card Low Profile PCI Card - 2Port RS-232 Universal PCI Low Profile Serial Board Expands 2 independent RS-232 serial port with communication speeds up to 115.2Kbps. High reliability SUN1989 16C950 compatible UART controller on-board. Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification. Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power. On-chip hardware auto flow control to guarantee no data loss. Built-in ± 2KV ESD protection for all serial signals. Description Product Description 2-port RS-232 Universal PCI Low Profile Serial Board Serial Communication Interface RS-232 Controller SUNIX SUN1989 (16C950 UART Compatible) Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 No. of Port 1-port IRQ & IO Assigned by System FIFO 128 byte (Hardware) Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI Baud rate 50 bps to 115.2 Kbps Data bit 5,6,7,8 Stop bit 1,1.5,2 Parity None, Even, Odd, Space, Mark Flow Control None, Xon/Xoff, RTS/CTS Protection ±2KV ESD protection for each signal Human Body Model (HBM) PCB connector DB44 Female Driver Support Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64) Windows Server 2003 / 2008 / 2012 / 2016 (X64) Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 Linux Linux 2.x / 3.x / 4.x / 5.3 DOS DOS *UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris *IBM OS/2 WARP 3/WARP 4 '*' marked as a project supported operating system. Please contact us if you have any further need. Regulatory Approvals Hardware CE, FCC, VCCI, BSMI Software Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) Environment Operation Temperature 0 to 60°C (32 to 140°F) Operation Humidity 5 to 95% RH Storage Temperature -20 to 85°C (-4 to 185°F) PCB Dimension 120 x 63 mm Bracket Low Profile 80 mm Bracket Space 1
Specifications
SKU IDSUN-COMCARD-2LP
Barcode # 765542000000
Brand Sunix
Shipping weight 0.3300kg
Assembled length 220.000m
Assembled height 40.000m
Assembled width 1.500m

Sunix COMCARD-2LP Dual Port Serial IO Card Low Profile PCI Card - 2Port RS-232 Universal PCI Low Profile Serial Board (LS)

$35.96
RRP $42.24 save 15%

or 4 payments of $8.99 with Learn more

Sold Out

Product Information

SKU:

IDSUN-COMCARD-2LP

Brand:

Sunix

Barcode #:

765542000000

Shipping Weigth:

0.3300kg

Warranty:

12
