Description

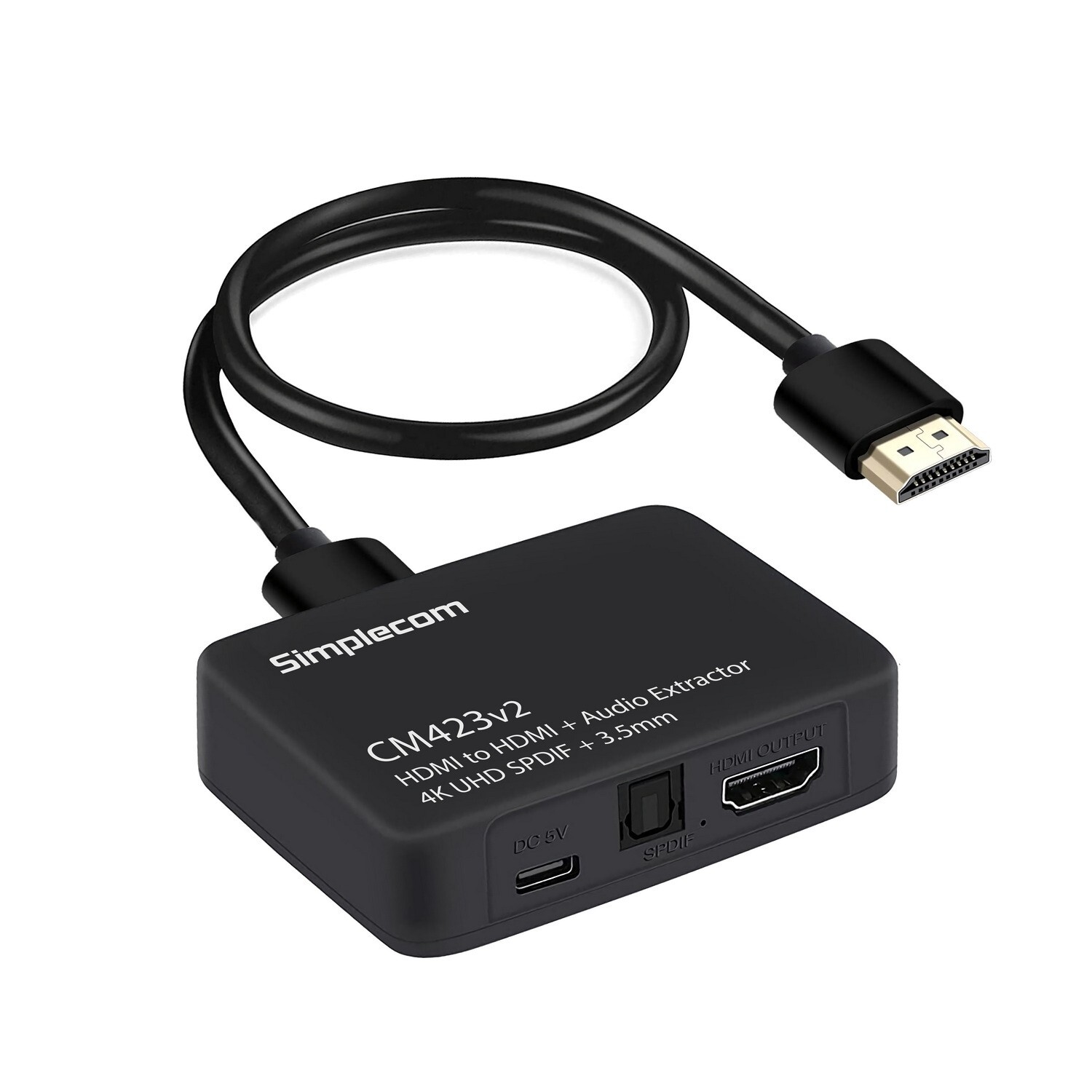

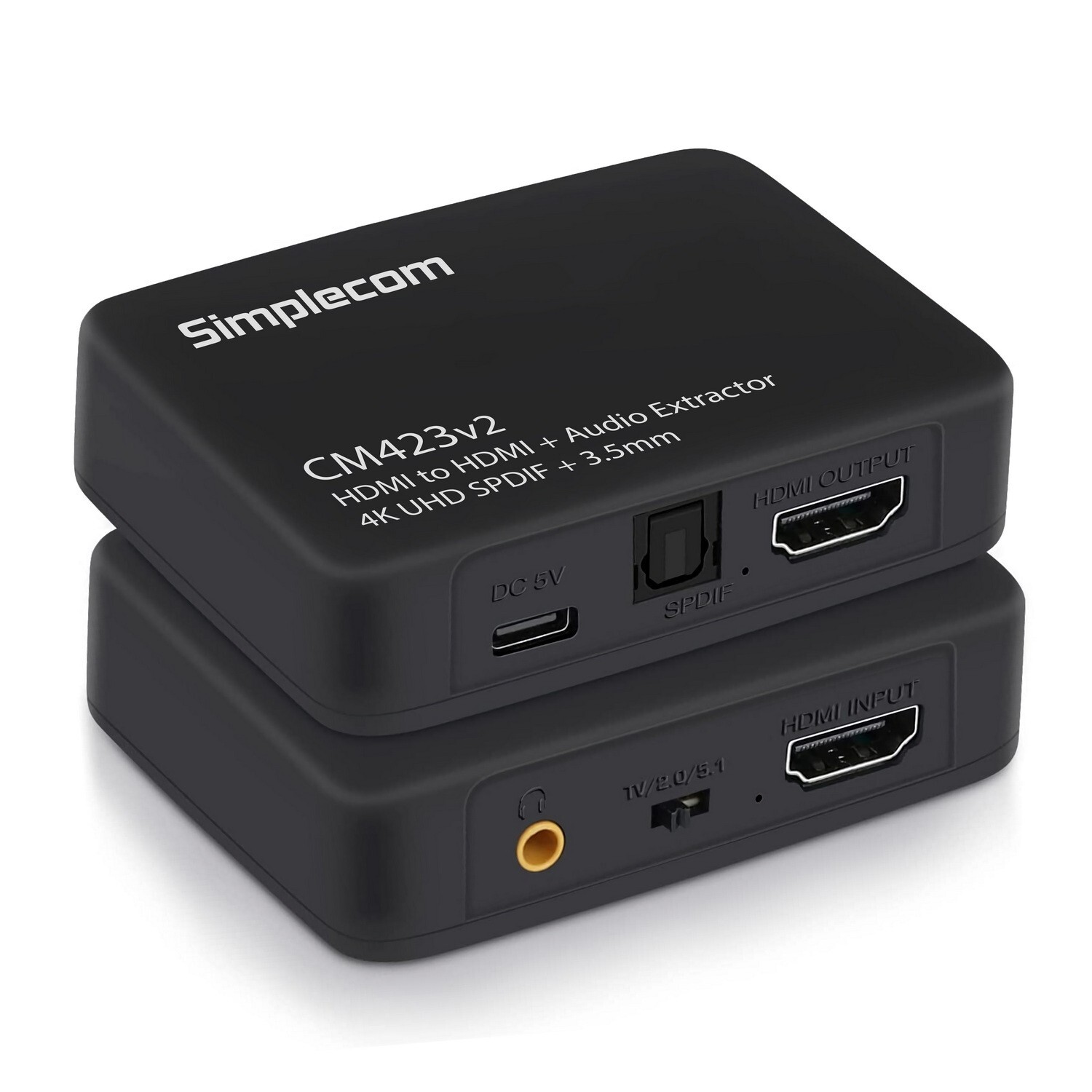

Simplecom CM423v2 HDMI Audio Extractor 4K HDMI to HDMI and Optical SPDIF + 3.5mm Stereo


Features

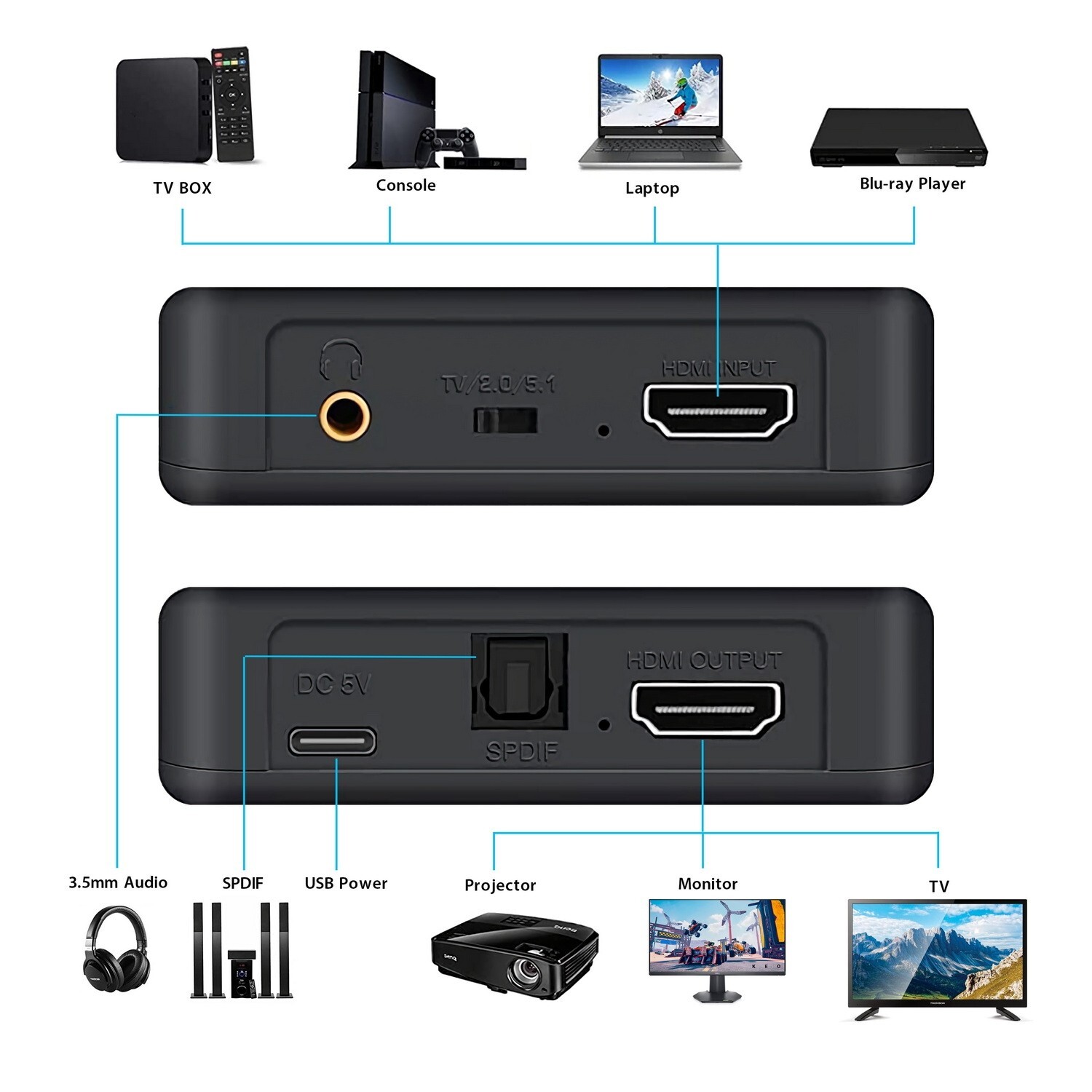

Optical SPDIF and 3.5mm audio output extracted from HDMI input

One HDMI output for HDMI pass-through

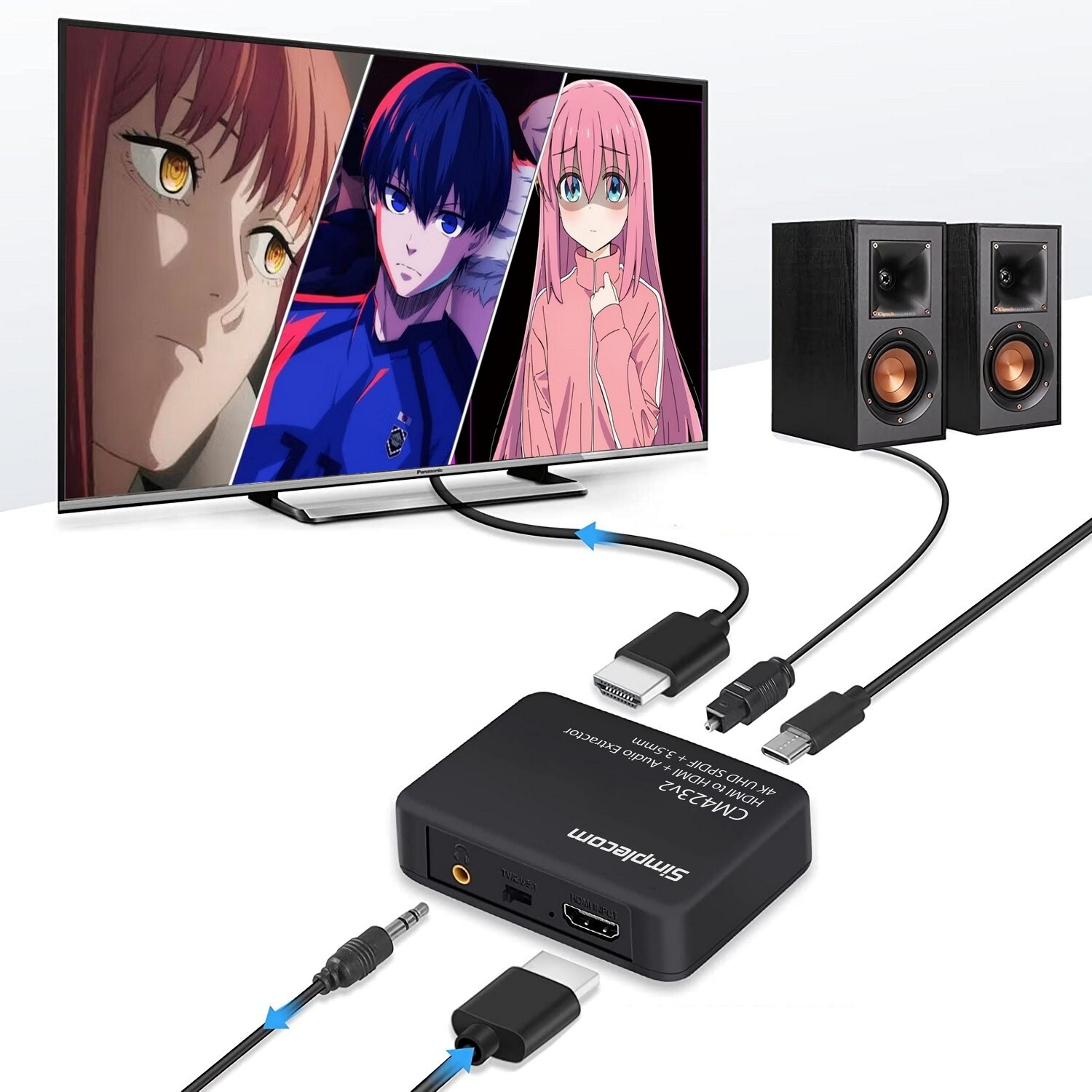

Ideal solution for connecting external speaker system with analog or optical input

SPDIF and 3.5mm jack can output audio simultaneously for 2.0CH audio

HDMI 1.4b and HDCP 1.4 Compliant

Supports HDMI resolution up to 4K Ultra HD

Powered by USB, plug and play

Supports compressed and uncompressed audio format, such as DTS-HD, Dolby TrueHD, Dolby Digital, PCM, LPCM

Specifications


HDMI Version: HDMI 1.4b

HDCP Version: HDCP 1.4

EDID Support: EDID 1.4

Input: 1x HDMI Female

Audio Outputs: 1x SPDIF (Optical), and 1 x 3.5mm Stereo Audio (Analog)

Video Output: 1x HDMI Female (HDMI pass-through)

HDMI Resolution Support: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p

Audio Format Support: DTS-HD, Dolby TrueHD, Dolby AC3, PCM, LPCM, DTS, DSD

Max Bandwidth: 400 MHz

Max Baud Rate: 10.2 Gbps

Input/Output TMDS signal: 0.5~1.5Volts p-p (TTL)

Input/Output DDC signal: 5Volts p-p (TTL)

Max working current: 350mA

Operation Temperature: -10°C ~ 50°C

Dimension: 75 x 55 x 25mm (LxWxH)

Weight: 43g



Package Contents


1x HDMI Audio Extractor

1x 0.5M HDMI Cable

1x USB Power cable

1x USB Wall Charger

1x User Manual

Specifications
SKU CBSI-CM423V2
Barcode # 9350414003014
Brand Simplecom
Shipping weight 0.7600kg
Shipping width 0.228m
Shipping height 0.142m
Shipping length 0.248m
Assembled length 1.480m
Assembled height 0.420m
Assembled width 1.280m

Simplecom CM423v2 HDMI Audio Extractor 4K HDMI to HDMI and Optical SPDIF 3.5mm Stereo
