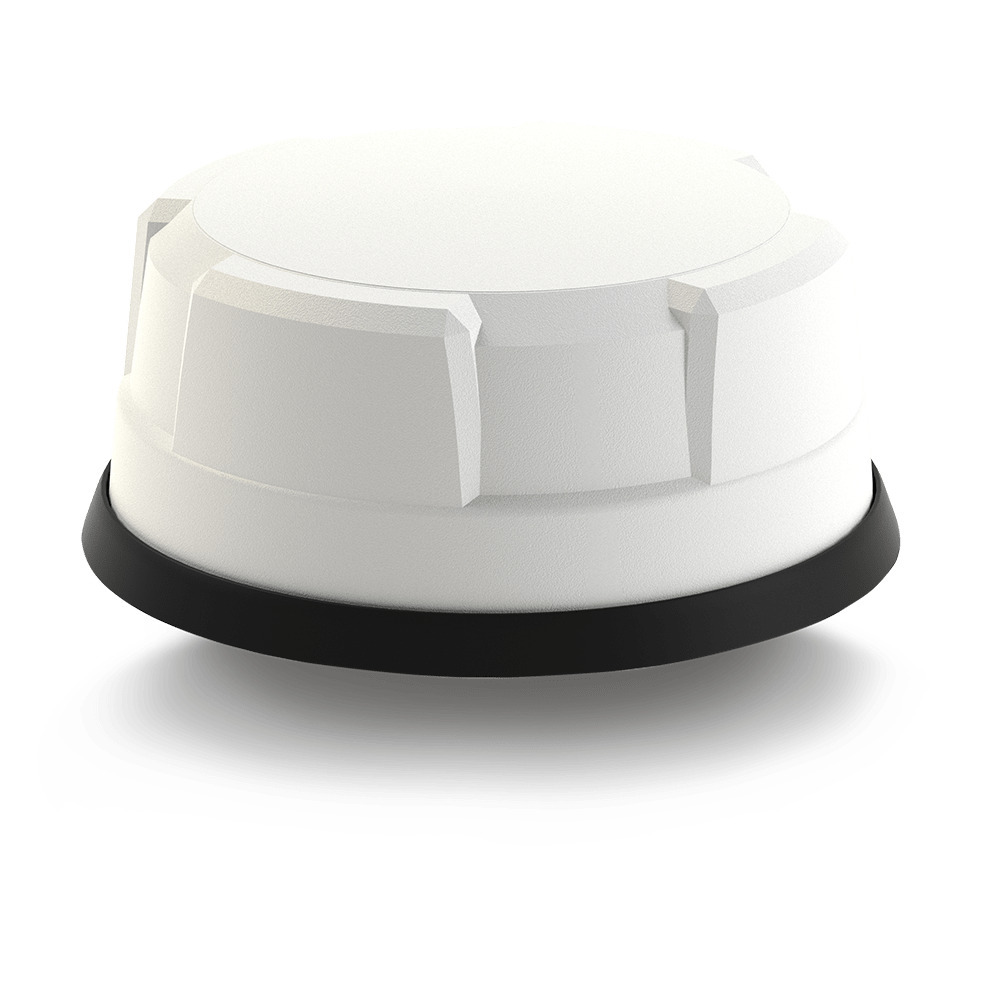

PANORAMA 7-in-1 5G DOME Antenna White, 4—4 MiMo 4G 5G, up to 6—6 MiMo WiFi, optional GPS GNSS Vehicle Ant,SMA (m) 617-960 1710-6000MHz, IK10, IP69K(loose 5m cables)

The MAKO 5G Dome is a range of high-performance 4—4 MiMo antennas covering 617-960 1710-6000MHz with optional GPS GNSS and optional 2—2, 3—3 or 4—4, or 6—6 MiMo Diversity at 2.4 5.0 7.2GHz.

The MAKO 5G Dome consists of up to 11 elements four isolated high-performance antenna elements covering 617-960 1710-6000MHz offer MiMo Diversity at cellular LTE frequencies, up to 6 optional dual band elements covering 2.4 5.0 7.2GHz support MiMo Diversity operation for WiFi and optional high-performance GPS GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.

Designed for latest generation LTE Cat 18 20 routers and devices

Low profile antenna with up to 11 functions in 1

4—4 MiMo 4G 5G LTE cellular, Optional GPS GNSS optional MiMo 2.4 7.2GHz in one housing

Kits with extension cables available for a range of LTE routers

Flame retardant cables compliant to UNECE R118

Pre-terminated antenna connectors fitted as standard

Cable flags attached for easy cable identification and installation

Extension cable available upon request

Single Hole Panel Mount Installation

Suitable for FirstNet (USA) and ESN (UK) Public Safety Networks

Ground Plane Independent | Suitable for Conductive or Non-Conductive Surfaces

ELECTRICAL DATA

Pattern Omnidirectional

Max Input Power(W) 10

Frequency Range | Gain 617 “ 960MHz | 4dBi 1710 “ 3800MHz | 8dBi 4900 “ 6000MHz | 9dBi

Cellular LTE Elements 4 x 4 MIMO

WIFI Elements No 2 x 2 MIMO 4 x 4 MIMO 6 x 6 MIMO 5 x 5 MIMO 3 x 3 MIMO

UHF Elements No

GPS DATA

GPS Frequency Range 1562-1612MHz

LNA GAIN (dB) 26

Number of GPS Elements 1 Module No

MECHANICAL DATA

Colour Black White

Height 80 (mm) | 3.15 (in)

Diameter 180 (mm) | 7.09 (in)

Operating Temperature -40 degree 80 degreeC (-40.0 degree 176.0 degreeF)

CABLE DATA

Cable Length “ LTE min: 0.3 (m) | 0.98 (ft) max: 5 (m) | 16.4 (ft)

Cable length “ GPS min: 0.3 (m) | 0.98 (ft) max: 5 (m) | 16.4 (ft)

Cable Length “ WIFI min: 0.3 (m) | 0.98 (ft) max: 5 (m) | 16.4 (ft)

Cable Type (LTE) FR RG174 RG174

Cable Type (GPS) FR RG174

Cable Type (WIFI) FR RG174 RG174

Quantity of Cell Cable 4

Quantity of GPS GNSS Extension 1

Quantity of WIFI Extension max: 6

TERMINATION DATA

Connector (WIFI) Reverse Polarity SMA FAKRA I SMA (f)

Connector (GPS) SMA (m) FAKRA C FME (f)

Connector (LTE) SMA (m) FAKRA D N (f)

MOUNTING DATA

Mounting Type Fixed Panel

Mounting Type Temp Magnetic

Mounting Methods Magnetic Panel

APPROVALS DATA

IP Rating IK10 IP69K

Cable Flammability EN45545-2 HL3 UN ECE R118 EN6722

TECHNOLOGY DATA

Technology GPS 4G 5G 5G 2G 3G 2G 3G 4G Band 71 600MHz ready FirstNet GNSS WIFI MIMO WIFI

LG-IN2445-W-LC White 4 x 4 MIMO 1 Module 2 x 2 MIMO

5m 5m 5m

SMA (m) SMA (m) Reverse Polarity SMA

Cables Loose Cables Loose Cables Loose
