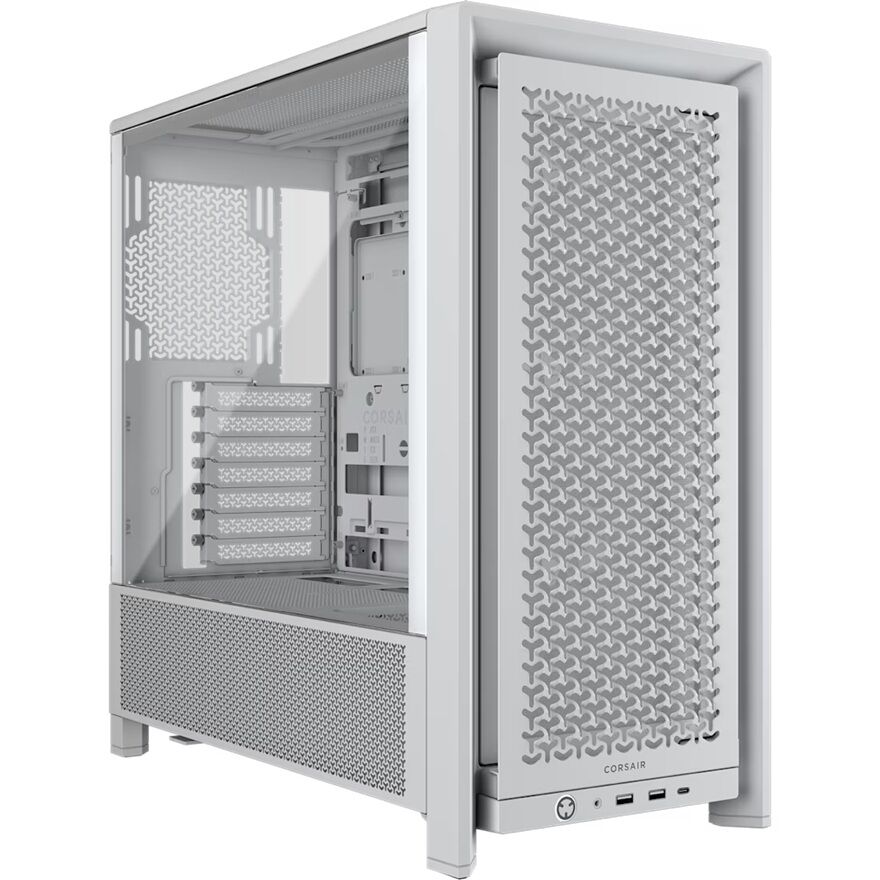

FRAME 4000D RS Modular Mid-Tower PC Case - White, ATX, 430mm GPU, 170mm CPU cooler, 360mm rad, 1x USB-C 3.2 Gen 2

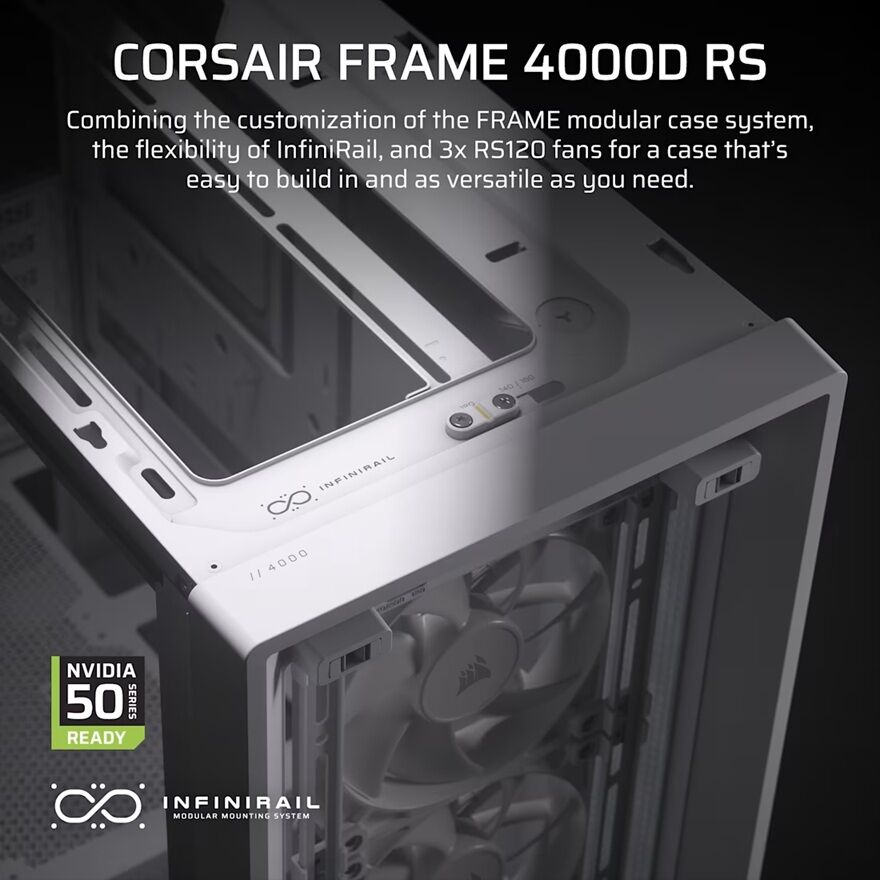

The CORSAIR FRAME 4000D RS is a fully-modular and spacious mid-tower PC case featuring InfiniRail„ Fan Mounting System and compatible with reverse connector motherboards.

Includes

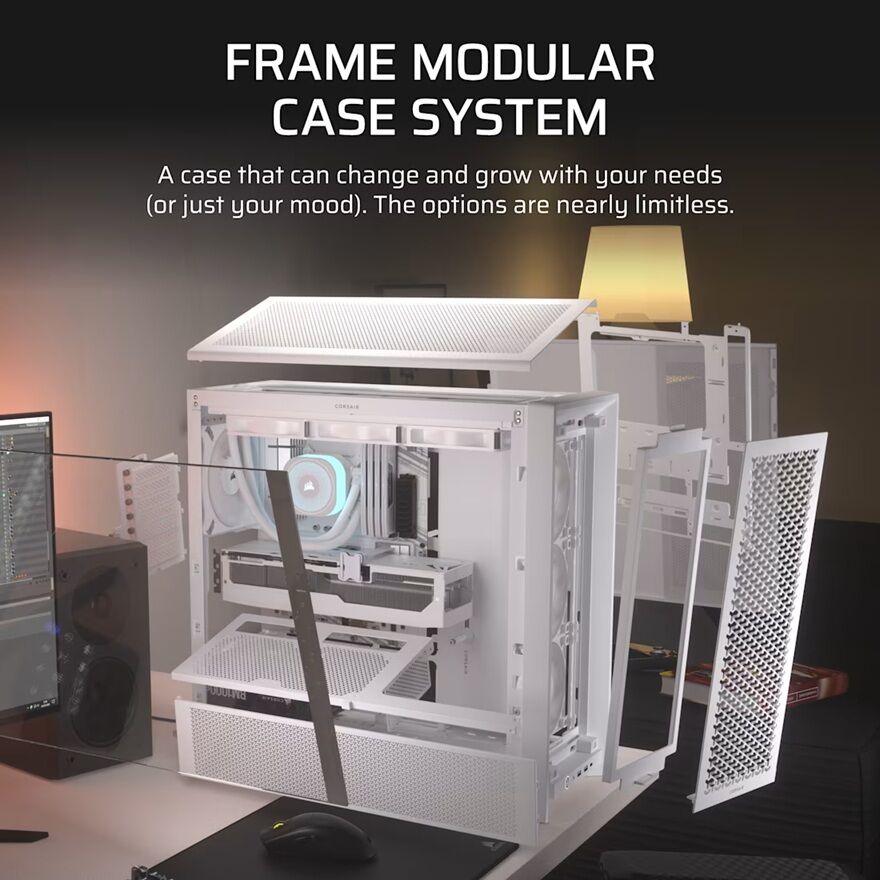

Fully-modular design for next-level customization

InfiniRail„ Fan Mounting System for easier building

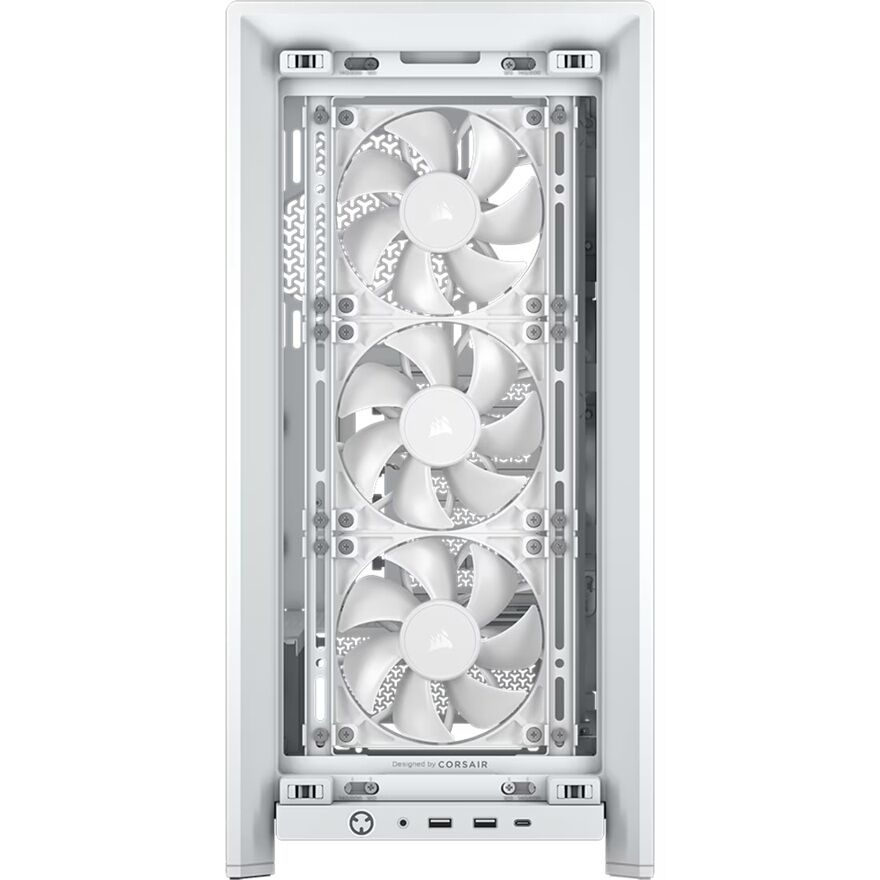

Includes three RS120 performance fans

Dual 360mm radiator support

GPU anti-sag stabilization arm

Compatible with reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH

TECH SPECIFICATIONS

Case Supported

Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height

486

Case Length

490

Case Width

239

Material

Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

Motherboard Support

Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Color

WHITE

Case Size

Mid-Tower

Radiator Compatibility

120mm, 140mm, 240mm, 280mm, 360mm

Case Window

Tempered Glass

Compatible Liquid Coolers

H60, H100, H115, H150, NAUTILUS, TITAN

Case Warranty

2 Year

Internal 3.5 ft Drive Bays

2

Internal 2.5 ft Drive Bays

4

Maximum CPU Cooler Height

170mm

Maximum PSU Length

220mm

Case Front IO

(1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in out

Maximum GPU Length

430mm

Weight

10.38kg

Case Expansion Slots

7 Horizontal or 3 Vertical

Case Power Supply

ATX

Radiator Support - Top

360mm, 280mm, 240mm

Radiator Support - Front

360mm, 280mm, 240mm

Radiator Support - Bottom

None

Radiator Support - Side

360mm, 280mm, 240mm

Radiator Support - Rear

140mm, 120mm

Fan Support - Top

3x 120mm, 2x 140mm

Fan Support - Front

3x 120mm, 2x 140mm, 2x 200mm

Fan Support - Bottom

2x 120mm

Fan Support - Side

3x 120mm 2x 140mm

Fan Support - Rear

1x 120mm, 1x 140mm

Front IO Motherboard Connections

1x HD Audio 1x USB 3.2 Gen1 1x USB-3.2 Gen2 Type-E 1x F_PANEL

Reverse Connector Motherboard Support

Yes

Included Fans

RS Series

Dust Filtration

Yes

Cable Routing Space

37mm

RapidRoute Included

No

Left Side Panel

Tempered Glass

Right Side Panel

Steel

Vertical Mount Support

Supported (Riser Card Sold Separately)
