Simplecom SD511 M.2 SSD Docking Station NVMe and SATA Dual Protocol USB 3.2 Gen 2 10Gbps

Quick Overview

Dual Protocol support for both NVMe and SATA M.2 SSD

Compatible with M Key or BM Key M.2 SSD

USB-C interface compliant with USB 3.2 Gen 2 standard

Supports data transfer rates up to 10Gbps

USB-C and USB-A combo cable, convenient for use on different devices

Supports USAP for faster data transfer speed and maximum performance

Supports TRIM command for improved data writing to extend SSD life

Plug and play, no driver required

LED indicator for power and activity status

USB powered, no external power required

Description

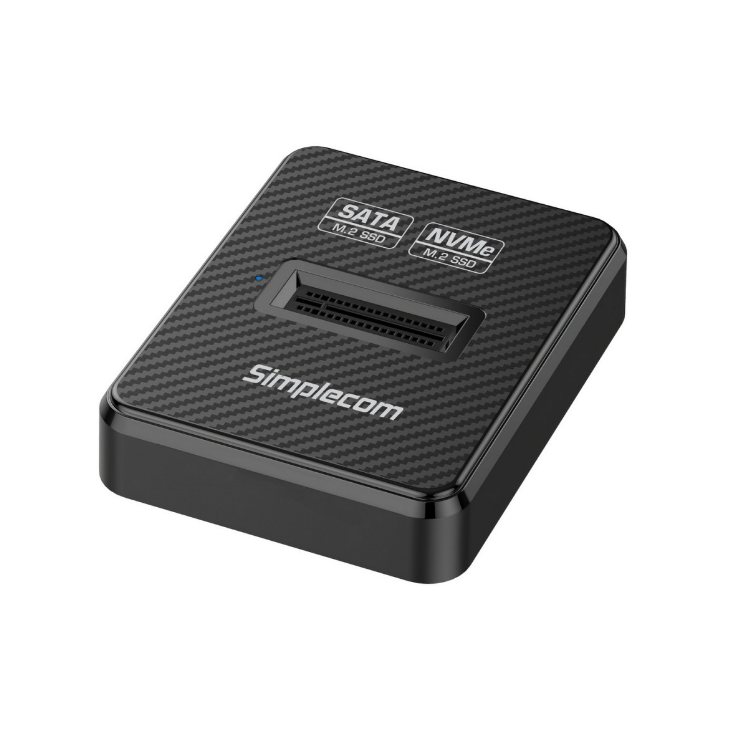

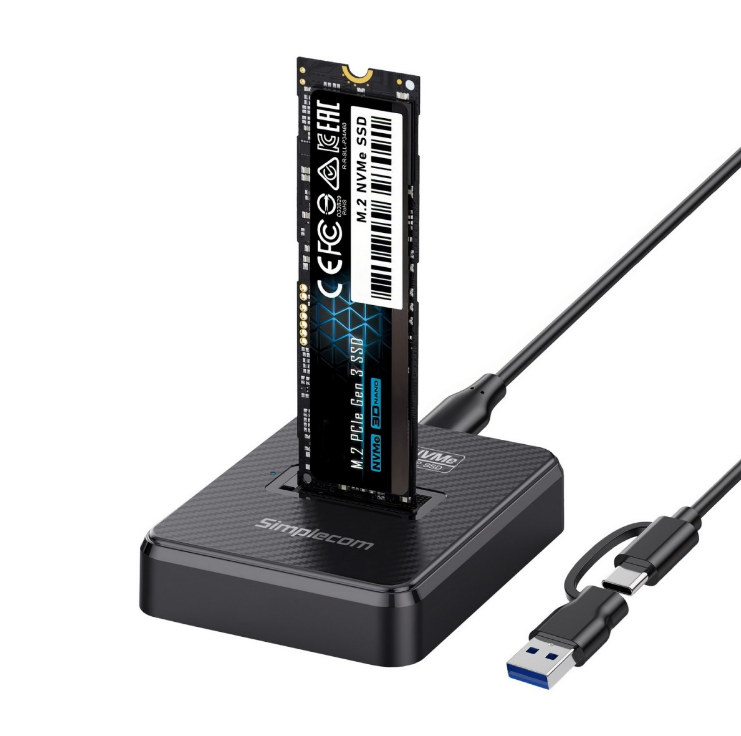

Simplecom SD511 M.2 SSD Docking Station NVMe and SATA Dual Protocol USB 3.2 Gen 2 10Gbps

SD511 is a high-speed, dual-protocol M.2 SSD Docking Station designed for both NVMe and SATA M.2 SSDs. Compatible with M Key and BM Key M.2 SSDs, it provides a quick and hassle-free way to access M.2 SSD drives instantly through the USB port.

Featuring a USB 3.2 Gen 2 interface, it supports fast data transfer speeds of up to 10Gbps, ensuring efficient file transfers and optimal performance. With UASP and TRIM support, it enhances data transfer speeds, improves efficiency. For added convenience, the included USB-C and USB-A combo cable allows flexible connectivity across different devices. With a plug-and-play design, no drivers are needed for quick and hassle-free setup.

Compact, efficient, and easy to use, this M.2 SSD Docking Station is the perfect solution for high-speed data access and management.

Features

Dual Protocol support for both NVMe and SATA M.2 SSD

Compatible with M Key or BM Key M.2 SSD

USB-C interface compliant with USB 3.2 Gen 2 standard

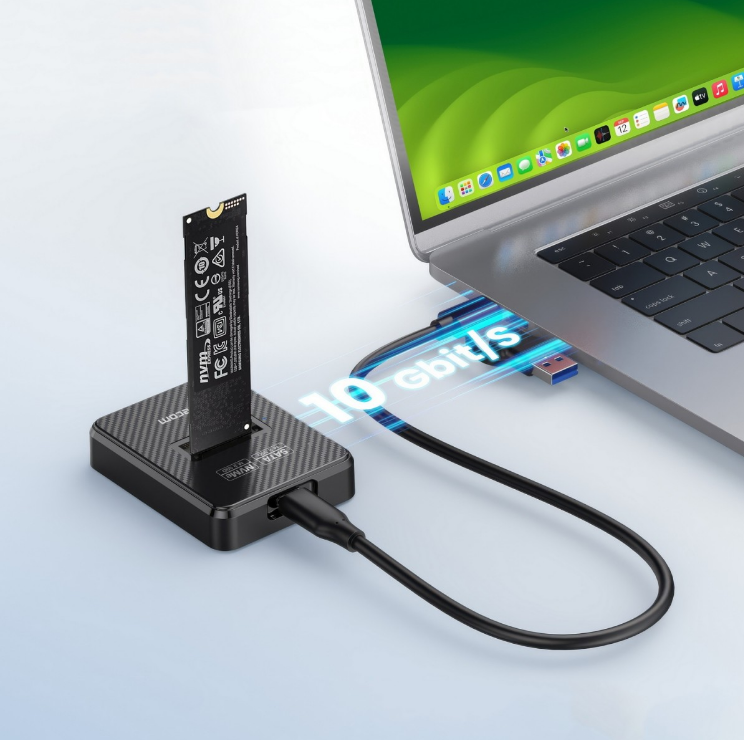

Supports data transfer rates up to 10Gbps

USB-C and USB-A combo cable, convenient for use on different devices

Supports USAP for faster data transfer speed and maximum performance

Supports TRIM command for improved data writing to extend SSD life

Plug and play, no driver required

LED indicator for power and activity status

USB powered, no external power required

Specifications

Model: SD511

Material: ABS Plastic

Interface: USB-C (USB 3.2 Gen 2)

Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps

Compatible M.2 Type: NVMe M.2, SATA M.2

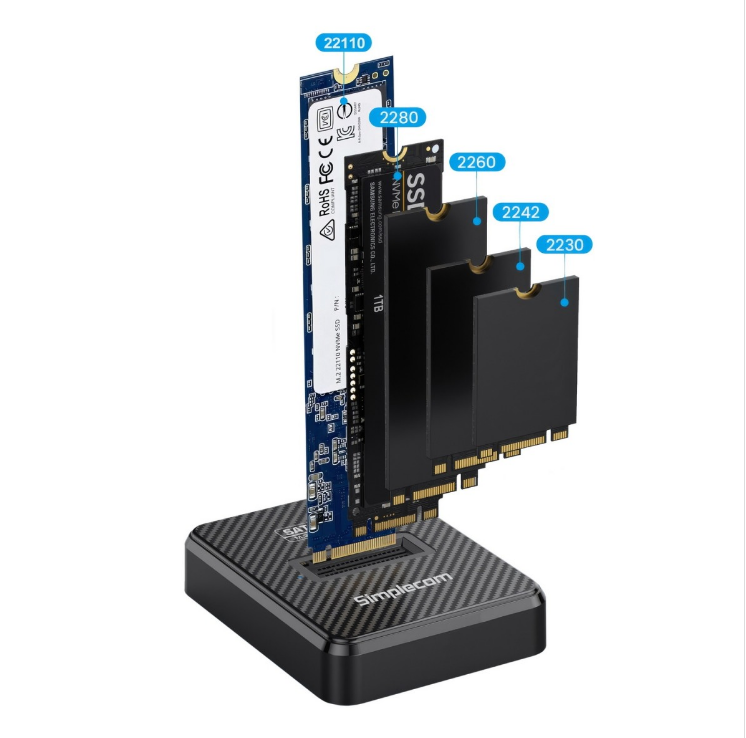

Compatible M.2 Size: 2230 2242 2260 2280 22100

Dimension: 66 x 51 x13mm (LxWxH)

Weight: 40g

Operating System Support: Windows 7 and later, macOS 10.8 and later, Linux

Package Contents

1x SD511 M.2 SSD Docking Station

1x USB-C USB-A combo cable

1x User Manual

Important Note

SD511 supports both NVMe and SATA based M.2 SSD (M Key or BM Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA M.2 SSD is 6Gbps
