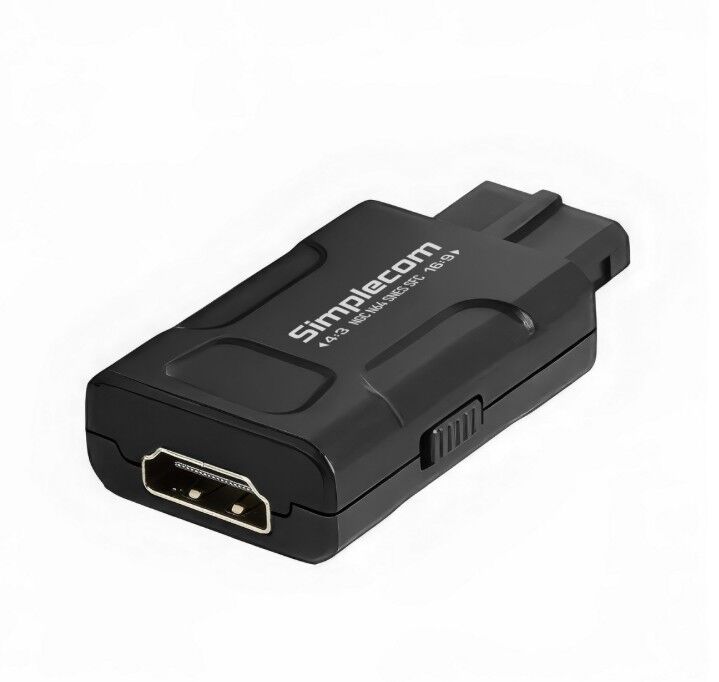

Simplecom CM461v2 HDMI Adapter Composite AV and S-Video to HDMI Converter for Nintendo NGC N64 SNES SFC

Simplecom CM461v2 HDMI Adapter Composite AV and S-Video to HDMI Converter for Nintendo NGC N64 SNES SFC

Bring your classic consoles back to life with this high-quality HDMI converter. Designed for classic systems including N64, GameCube, Super NES, and SFC, it effortlessly converts analog signals into digital HDMI output.

The converter supports both Composite AV and S-Video signals, automatically switching to S-Video for improved picture quality whenever available. Its compatible with both NTSC and PAL consoles for a hassle-free setup.

With a built-in switch to toggle between 4:3 and 16:9 aspect ratios, you can enjoy games in their original format or in full-screen mode. Compact, lightweight, and completely plug-and-play with no external power required, this converter is easy to set up and use, perfect for reliving your favorite retro titles on modern displays.

Features

Compatible with N64, GameCube, Super NES, and SFC consoles

Converts and upscales console analog signal to digital HDMI output

Supports Composite AV and S-Video signals from the console

Automatically switches to S-Video mode for enhanced quality when available

Supports both NTSC and PAL consoles

Delivers both video and audio through a single HDMI cable

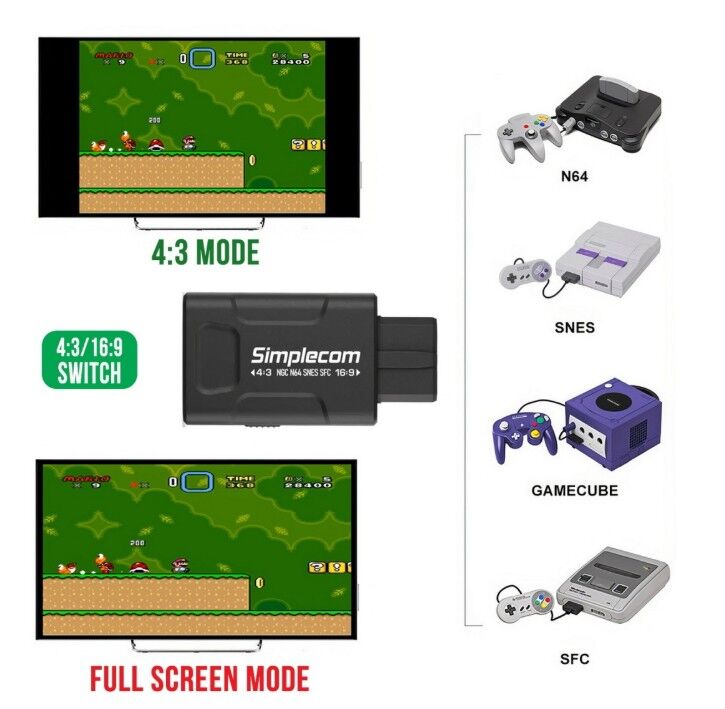

Easily select between 4:3 and 16:9 aspect ratios with a switch

Plug and play, no external power required

Compact and lightweight design, easy to set up

Specifications

Model: CM461v2

Compatible Consoles: N64 NGC SNES SFC

Supported Analog Signals: AV, S-Video

Output Interface: HDMI

Analog Video Standards: PAL, NTSC

HDMI Output Resolution: 720p (16:9), 1080p (4:3)

Dimensions: 57 — 29 — 13mm (W—D—H)

Weight: 14g

Important Notes:

The adapter is powered directly by the console, no external power supply is required.

This HDMI adapter supports only analog video signals (AV, S-Video). RGB signals are not supported.

Not all consoles support S-Video signal. If S-Video signal is not detected, the adapter will default to AV signal.

Supported Console with S-Video output

N64: All NTSC consoles and most PAL consoles support S-Video output

GameCube: All NTSC consoles support S-Video output PAL consoles do not support S-Video

SNES SFC: All NTSC and PAL consoles support S-Video output, except the cost-reduced smaller size models (SNS-101 and SHVC-101)
