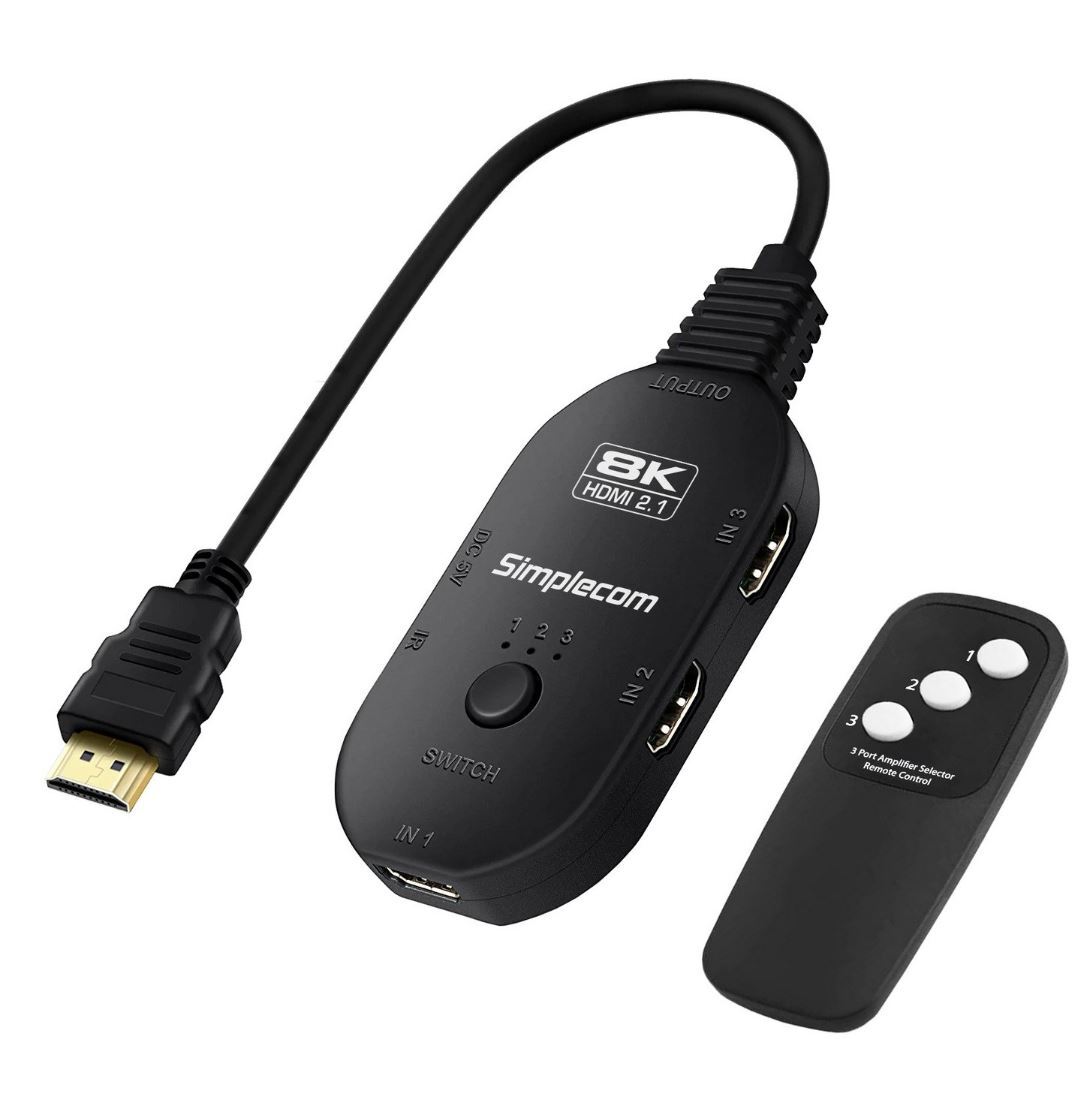

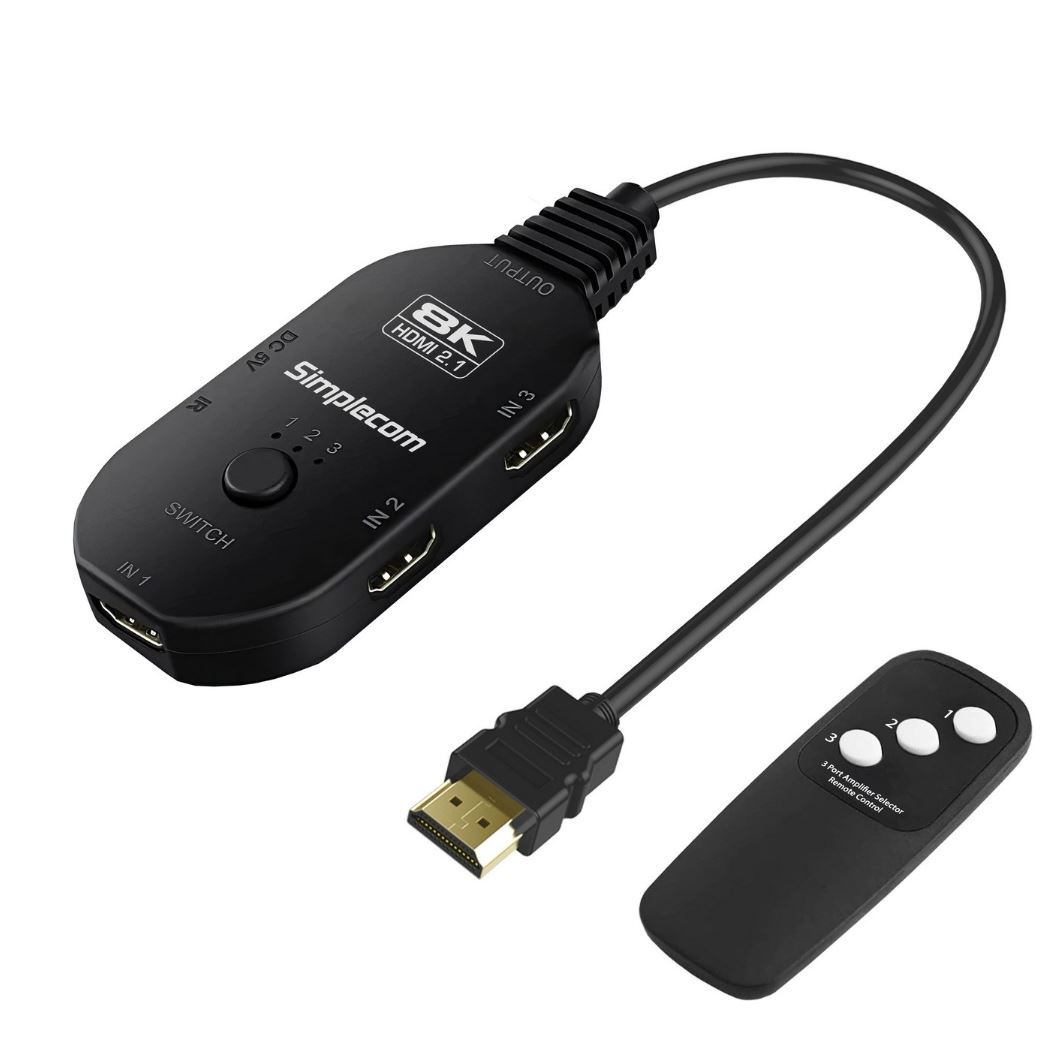

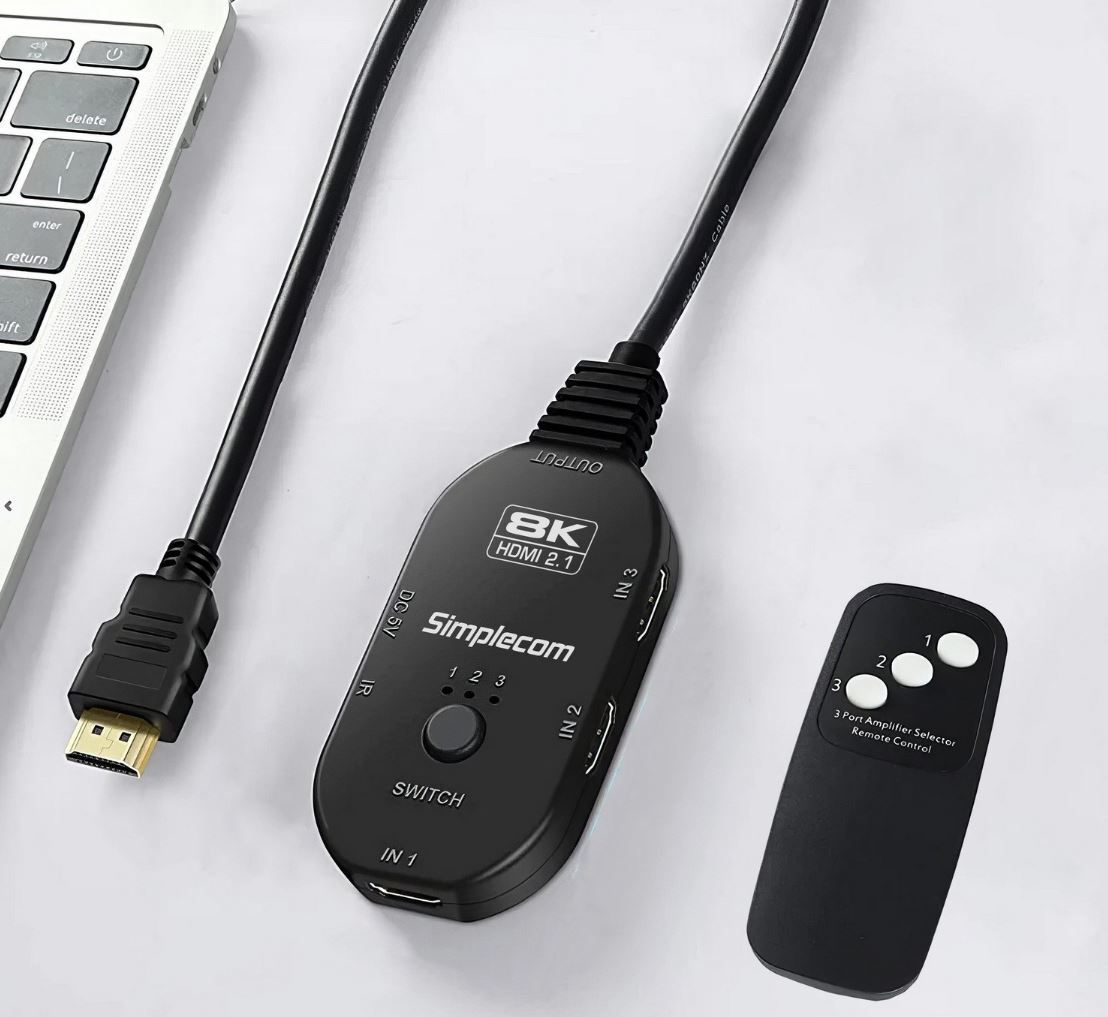

Simplecom CM353 3-Port HDMI 2.1 Switch 3 IN 1 OUT Splitter HDCP 2.3 8K@60Hz

Features

HDMI 2.1 compliant, backward compatible with previous HDMI versions

Supports 3 HDMI source devices to share one HDMI port on display

Easy to use by pressing the toggle button or remote control

Intergraded HDMI output cable for easy connection to TV or monitor

HDCP 2.3 compliant, backward compatible with previous HDCP versions

Supports video resolutions up to 8K@60Hz or 4K@120Hz

Supports video bandwidth up to 48Gbps

LED light indicating the active HDMI input port

Plug and Play, no external power required for standard HDMI devices

Specifications

Model: CM353

HDMI version: HDMI 2.1, backward compatible

HDCP version: HDCP 2.3, backward compatible

HDMI Input: 3x HDMI Female

HDMI Output: 1x HDMI Male

HDMI Max Bandwidth: 48Gbps

Resolution Support: 8K, 4K, 1440p, 1080p, 1080i, 720p, 720i, 576p, 576i, 480p

Max Refresh Rate: 8K@60Hz, 4K@120Hz, 1080p@240Hz

Support Video Colour: 12bit/14bit/16bit/36bit deep colour, RGB 8:8:8

HDR support: Yes

Support Audio Format: DTS-HD, Dolby-TrueHD, PCM, LPCM

Power Input: USB-C DC 5V (No external power required for standard HDMI devices)

Operating Temperature: 0°C to 50°C

Dimension (L x W x H): 121 x 50 x 1.5mm

Cable Length: 40cm approx.

Weight: 80g

Package Contents

1x 3 Way HDMI Switch

1x Remote Control

1x IR Receiver

1x USB Power cable

Important Note

For 8K@60Hz or 4K@120Hz support, 48Gbps HDMI 2.1 cable is required, cable length is limited to 3M

This device is 3 IN 1 OUT one way only, and can not be used in reverse way
