Simplecom CM302 Bi-Directional 2 Way HDMI 2.0 Switch Selector 4K@60Hz HDCP 2.2

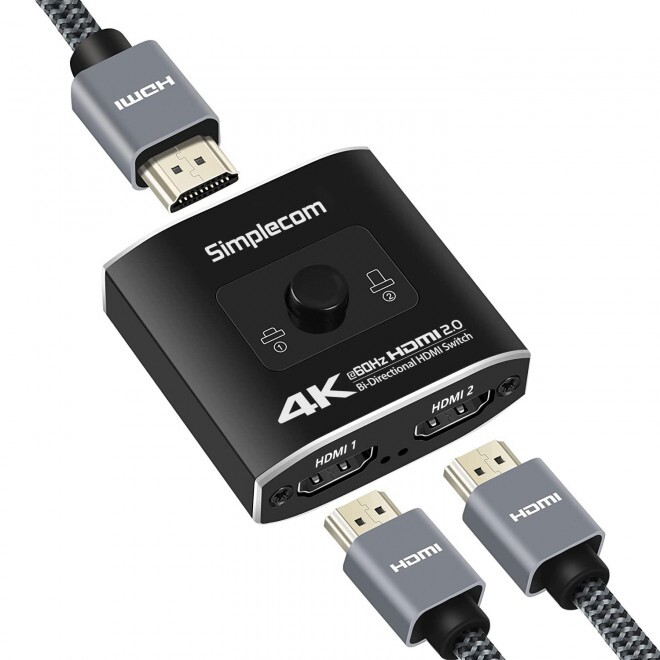

CM302 is bi-directional 2-way HDMI 2.0 switch than can be used to switch two different HDMI sources or HDMI displays. Toggle button allows you to quickly select a video source or displays, without having to swap cables.

You can connect two HDMI sources, such as Game Consoles, PC, TV Box to one HDMI port on your TV or monitor, and allow two HDMI source devices to share one HDMI port on display. It also functions in the opposite direction, connecting an HDMI source to switch between two displays. Note that two screens cannot display simultaneously under 1 input 2 outputs mode.

This HDMI switch is HDMI 2.0 compliant, and provides high bandwidth up to 18Gbps. Support video output up to 4K@60hz. Portable and compact size, easy to install. The durable aluminium alloy housing can efficiently dissipate heat to ensure durability and safe usage.

Features

Bi-Directional HDMI 2.0 switch for toggling between 2 HDMI sources or displays

Quickly switch video sources or displays without having to swap cables

Durable aluminium alloy casing, also efficiently dissipate heat

Portable and compact size, easy to install

HDMI 2.0 compliant, support bandwidth up to 18Gbps

Support HDMI video resolution up to 4K@60hz

HDCP 2.2 compliant, wide compatibility with most HDMI source devices

Powered by HDMI source device, no external power required

Specifications

Model: CM302

HDMI Version: HDMI 2.0

Video Resolution Support: up to 4K@60hz

Audio Format Support: DTS-HD, Dolby True HD, Dolby Digital, Dolby Atmos, LPCM 7.1

HDR Format Support: HDR10

HDCP Version Support: HDCP 2.2

Max Bandwidth: 18Gbps

Max cable distance:

4K@60Hz: Input<1.5M, Output<1.5M

4K@30Hz: Input<3M, Output<3M

1080p@60Hz: Input<5M, Output<5M

Max Operation Current: 15mA

Power Input: USB DC 5V (Backup power only)

Operating Temperature: (-15 to +55°C)

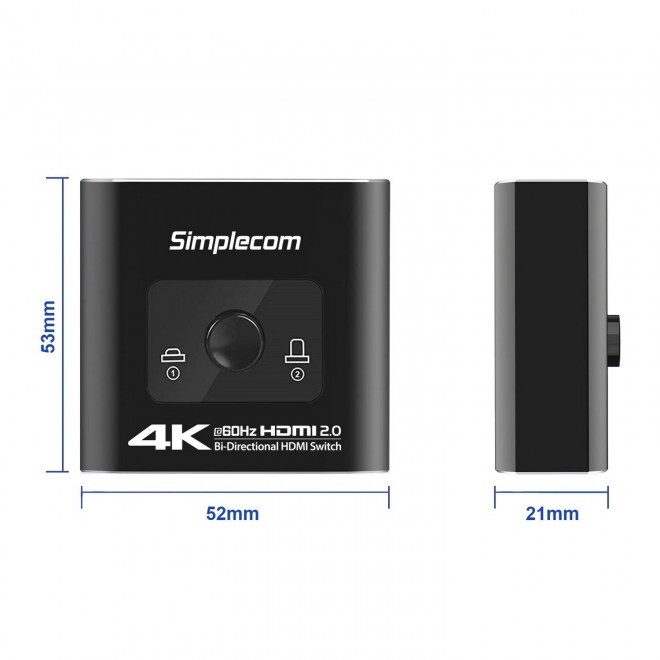

Dimension (L x W x H): 53x52x21mm

Weight: 45g

Package Contents

1 x Bi-Dire
