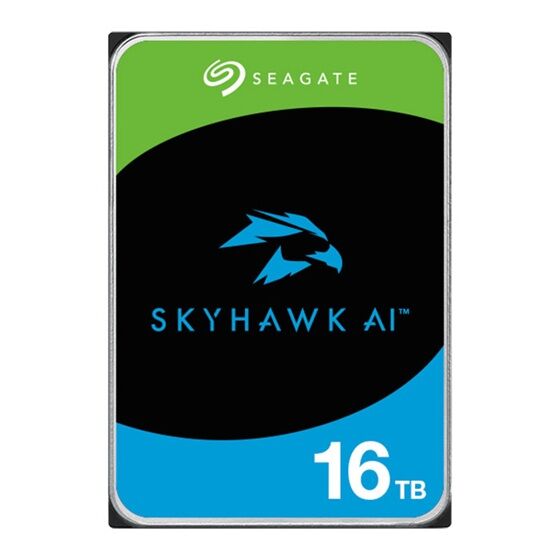

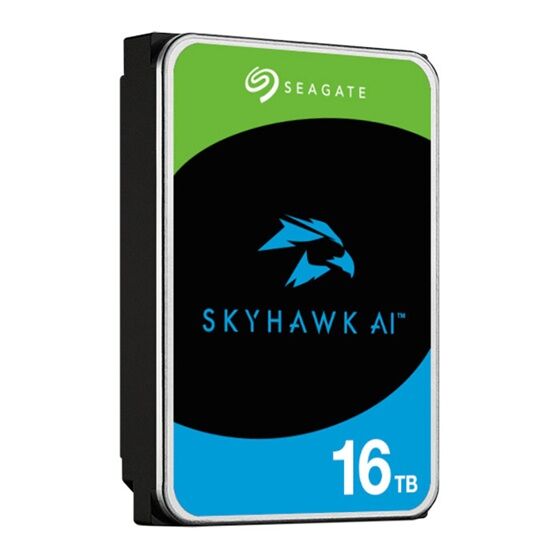

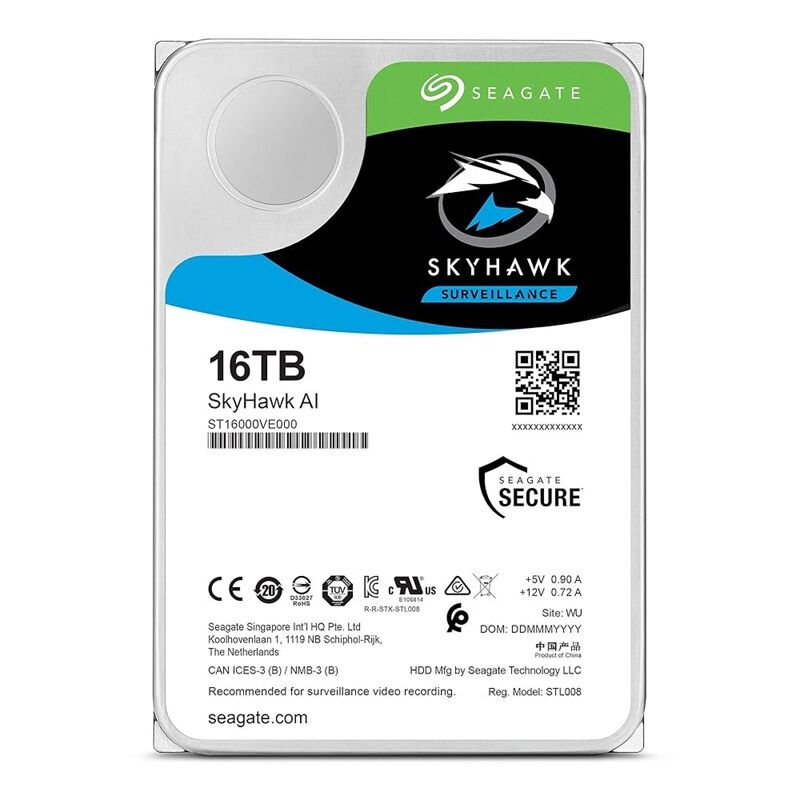

Seagate 16TB 3.5 ft SkyHawk AI Surveillance, SATA 6Gb s, CMR, max. DTR 285 272mb, HDD, 512MB Cache, 7200RPM, 5Years Warranty

Seagate SkyHawk„ AI 24TB is a video-optimized drive designed for NVRs, with artificial intelligence (AI) for edge applications.

Specifications

Capacity 16TB

Standard Model Number ST16000VE004

Interface SATA 6Gb s

Recording Technology CMR

Drive Design Helium

Features and Performance

Drive Bays Supported Unlimited

AI Channels 32

AI Real Time Capture Events Sec 1,2 Up to 120

AI Real Time Compare Events Sec 1,2 Up to 96

HD Cameras Supported3 Up to 64

RV Sensors Yes

Max Data Transfer Rate (MB s) 285 272

Cache (MB) 512MB s

Reliability Data Integrity

Tarnish Resistant Yes

Load Unload Cycles 600,000

Nonrecoverable Read Errors Rate, Max 1 per 10E15

Power-On Hours per year 8760

Workload Rate Limit (WRL) 4 550

Mean Time Between Failures (MTBF) (hours) 2500000hr

Warranty, Limited (years) 5 5

Rescue Data Recovery Services (years) 6 3

Power Management

Startup Current, Typical (12V, A) 2.0A

Average Operating Power 7.8

Idle Power Average (W) 6.3 W

Standby Mode Sleep Mode, Typical (W) 1.1 1.1W

Voltage Tolerance (5V) ±5pct

Voltage Tolerance (12V) ±10pct

Environmental Temperature

Operating Temperature (ambient, min degreeC) 5 degreeC

Operating Temperature (drive reported, max degreeC)5 65 degreeC

Nonoperating Temperature (ambient, min max degreeC) -40 degreeC

Physical

Height (mm in) 26. 26.1mm 1.028in

Width (mm in, max) 26.1mm 1.028in

Depth (mm in, max) 147.0mm 5.787in

Weight (g lb, typical) 685g 1.51lb

Carton Unit Quantity 20

Cartons per Pallet Cartons per Layer 40 8
