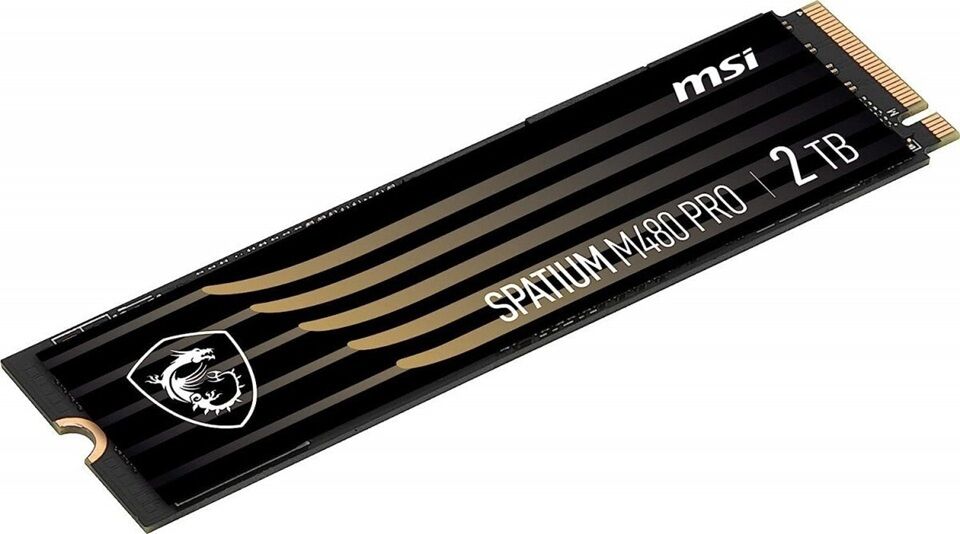

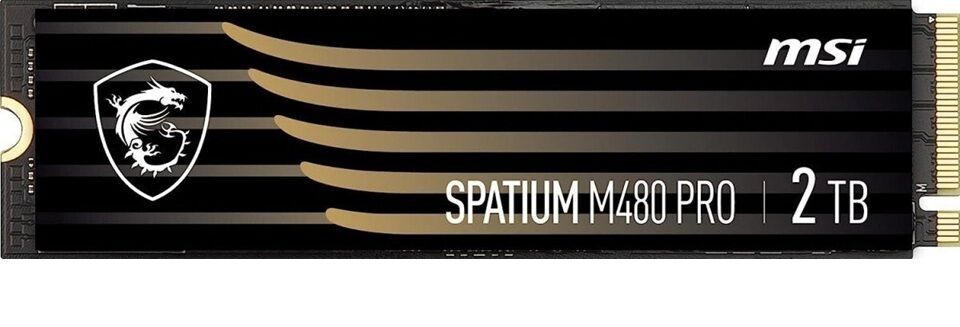

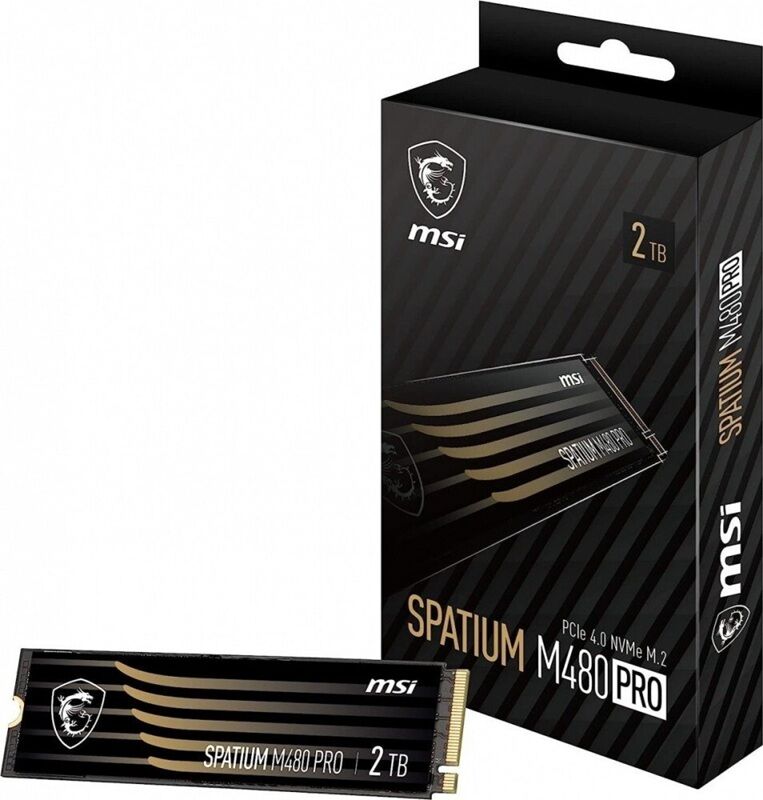

MSI SPATIUM M480 PRO PCIe 4.0 NVMe M.2 2TB SSD, 2GB DDR4, Sequential Read up to 7400MB s, Sequential Write up to 7000MB s, 1400 TBW, 5 Year Warranty

SPECIFICATION

Model Name

SPATIUM M480 PCIe 4.0 NVMe M.2

Capacity

2TB

Controller

PHISON E18

Flash Memory

3D NAND

Dram Cache

2GB DDR4

Form FActor

M.2 2280

Interface

PCIe Gen4x4, NVMe 1.4

Compatibility

PCIe Gen4 Gen3 Gen2 Gen1

Dimensions

80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read up to (MB s)

7400

Sequential Write up to (MB s)

7000

Random Read 4KB up to (IOPS)

1,000,000

Random Write 4KB up to (IOPS)

1,000,000

Maximum Operating Power (W)

10.5

Idle Power PS3 (mW)

45

Low Power L1.2 (mW)

3

Operating Temperatures

0 degreeC “ 70 degreeC

Storage Temperatures

-40 degreeC “ 85 degreeC

Terabytes Written (TBW)

1400

Mean Time Between Failure (MTBF)

Up to 1,600,000 Hours

Limited Warranty

5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features

TRIM (Performance Optimization, OS support required)

SMART (Self-Monitoring, Analysis and Reporting Technology)

LDPC (Low Density Parity Check) ECC Algorithm

End to End Data Path Protection

APST (Autonomous Power State Transition)

AES256 Pyrite (Encryption, Data Security)
