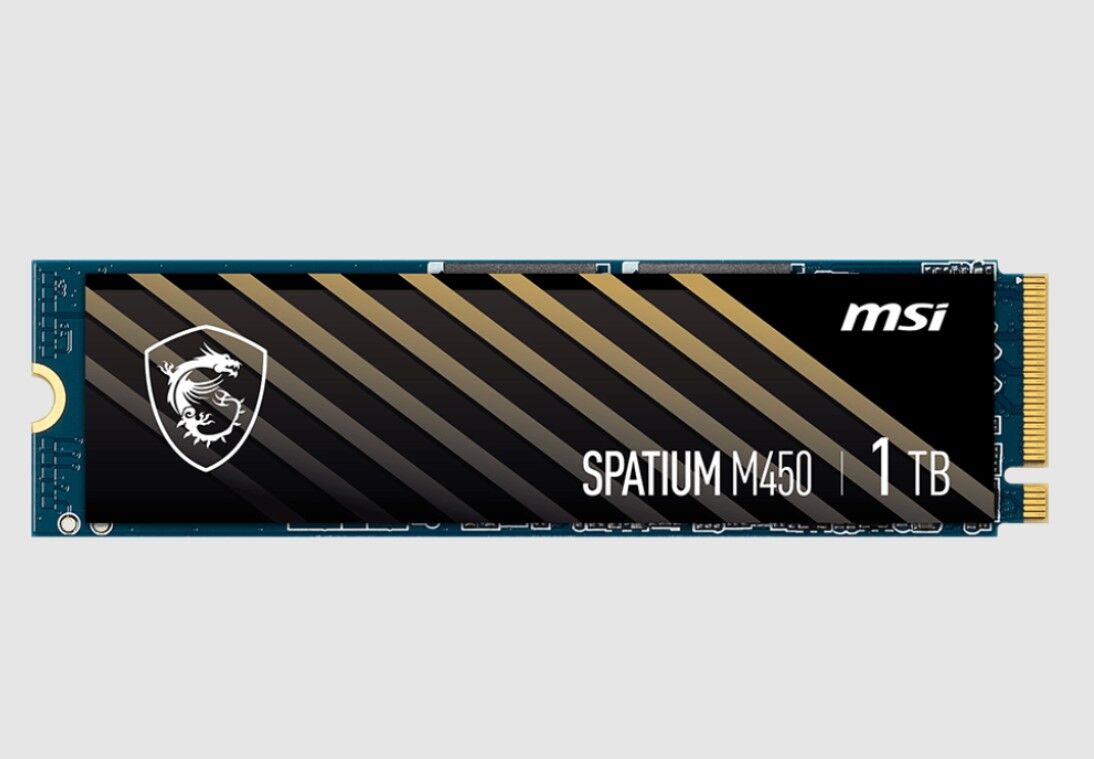

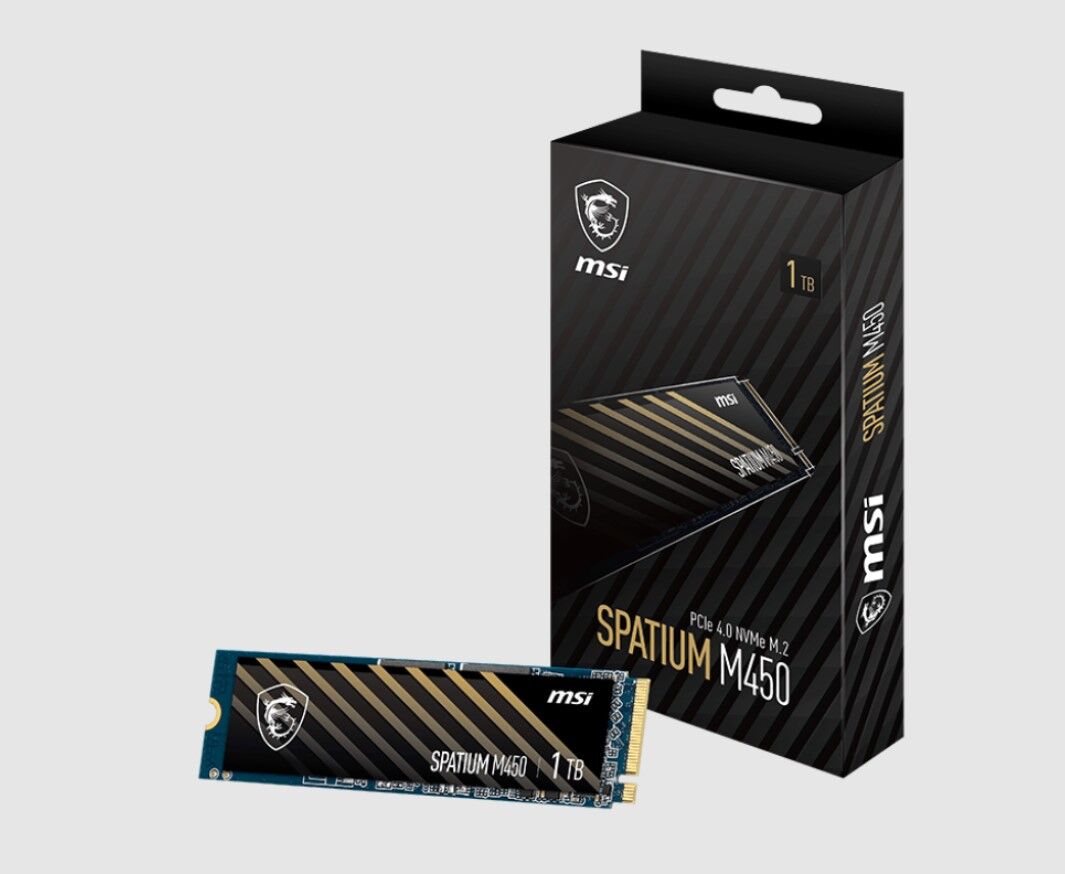

MSI SPATIUM M450 PCIe 4.0 NVMe M.2 1TB V1 SSD, PCIe Gen4, SEQUENTIAL READ up to 3400 MB S, SEQUENTIAL WRITE 2400 MB S, 5 Year Warranty

CAPACITY 1TB

CONTROLLER PHISON E19T

FLASH MEMORY 3D NAND

FORM FACTOR M.2 2280

INTERFACE PCIe Gen4x4, NVMe 1.4

COMPATIBILITY PCIe Gen4 Gen3 Gen2 Gen1

DIMENSIONS 80.00mm (L) x 22.00mm (W) x 2.15mm (H)

SEQUENTIAL READ UP TO (MB S): 3400

SEQUENTIAL WRITE UP TO (MB S): 2400

RANDOM READ 4KB UP TO (IOPS): 500,000

RANDOM WRITE 4KB UP TO (IOPS): 550,000

MAXIMUM OPERATING POWER (W): 3.7

IDLE POWER PS3 (MW): 35

LOW POWER L1.2 (MW): 5

OPERATING TEMPERATURES: 0 degreeC “ 70 degreeC

STORAGE TEMPERATURES: -40 degreeC “ 85 degreeC

TERABYTES WRITTEN (TBW): 350

MEAN TIME BETWEEN FAILURE (MTBF): Up to 1,500,000 Hours

LIMITED WARRANTY: 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

ADVANCED FEATURES

TRIM (Performance Optimization, OS support required)

SMART (Self-Monitoring, Analysis and Reporting Technology)

LDPC (Low Density Parity Check) ECC Algorithm

End to End Data Path Protection

APST (Autonomous Power State Transition)

Pyrite (Encryption, Data Security)
