Description

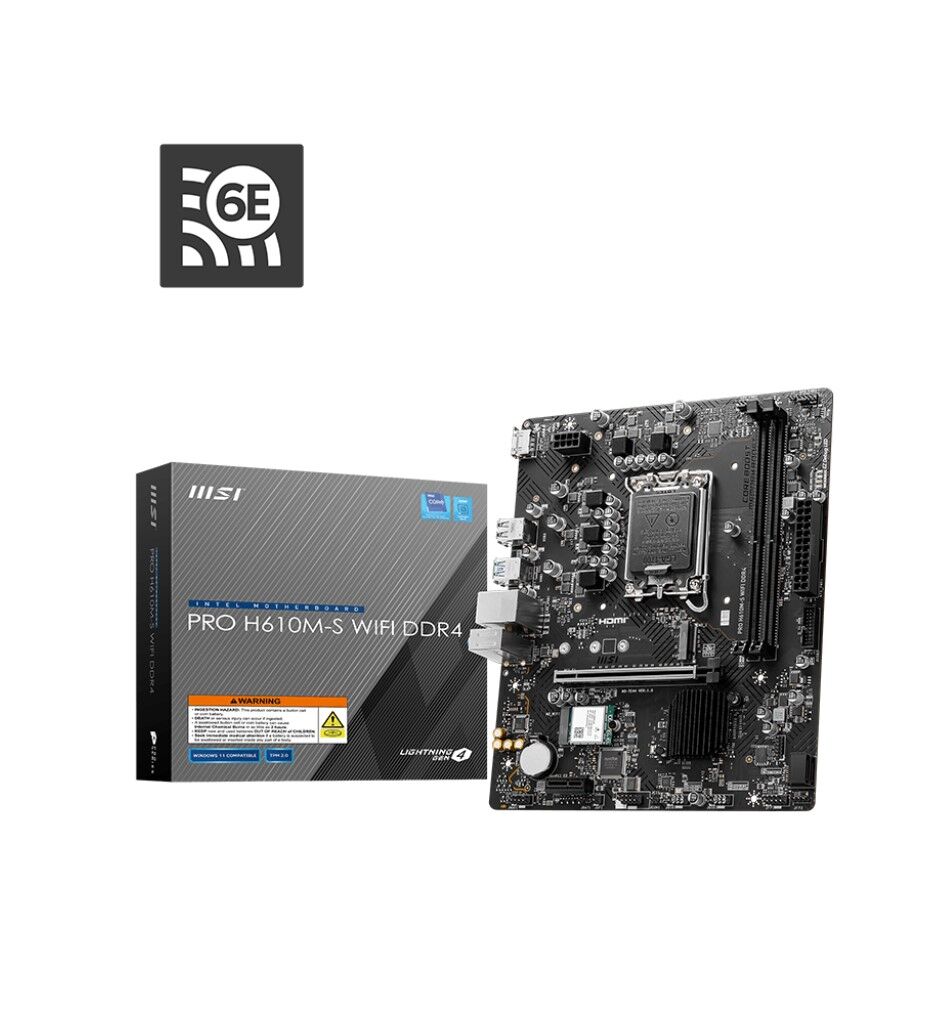

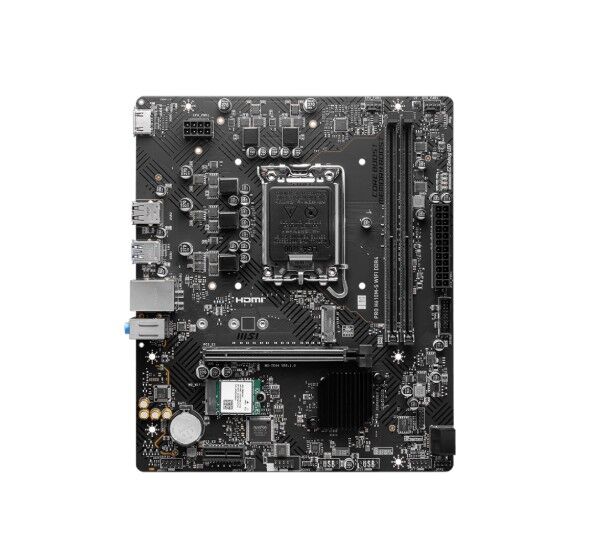

MSI PRO H610M-S WIFI DDR4 Intel LGA 1700 mATX Motherboard 2x DDR4~64GB,1x PCIe x16,1x PCIe x1,1x M.2,2x SATA 6G,8x USB2.0


Chipset INTEL H610

CPU Support Intel Core„ 14th 13th 12th Gen Processors, Intel Pentium Gold and Celeron Processors

LGA 1700


Memory 2x DDR4, Maximum Memory Capacity 64GB

Memory Support DDR4 1866 2133 2400 2667 2800 2933 3000 3066 3200 MHz by JEDEC

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory


Onboard Graphics 1x HDMI„

Support HDMI„ 1.4 with HDR, maximum resolution of 4K 30Hz

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.


Slot 1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)


Storage 1x M.2

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280 2260 2242 devices

2x SATA 6G

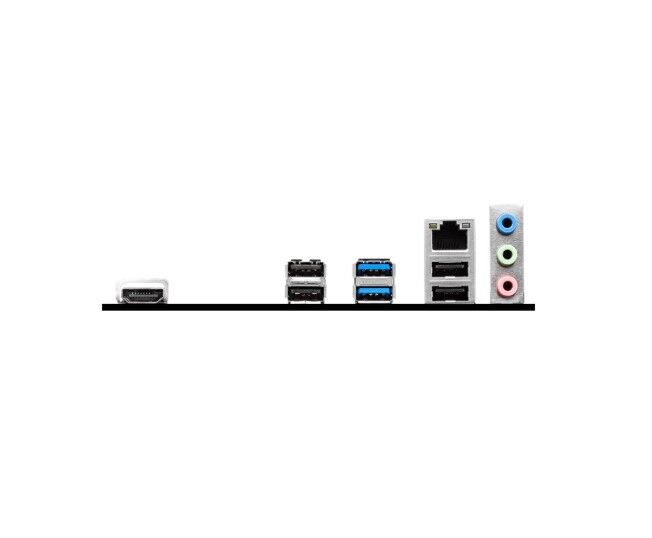

USB 4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)


Internal IO 1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports


WIRELESS LAN BLUETOOTH Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX RX, 2.4GHz 5GHz 6GHz (160MHz) up to 2.4Gbps

Supports 802.11 a b g n ac ax


Supports Bluetooth 5.3, FIPS, FISMA


Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.

Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.


PCB Info mATX

200mmx236.16mm

Specifications
SKU MBM-H610M-S-WIFIDDR4
Barcode # 4711377199988
Brand MSI
Shipping weight 0.8000kg
Shipping width 0.376m
Shipping height 0.156m
Shipping length 0.404m

MSI PRO H610M-S WIFI DDR4 Intel LGA 1700 mATX Motherboard 2x DDR4~64GB,1x PCIe x16,1x PCIe x1,1x M.2,2x SATA 6G,8x USB2.0

$168.30
RRP $184.14 save 9%

or 4 payments of $42.08 with Learn more

In Stock
