Description

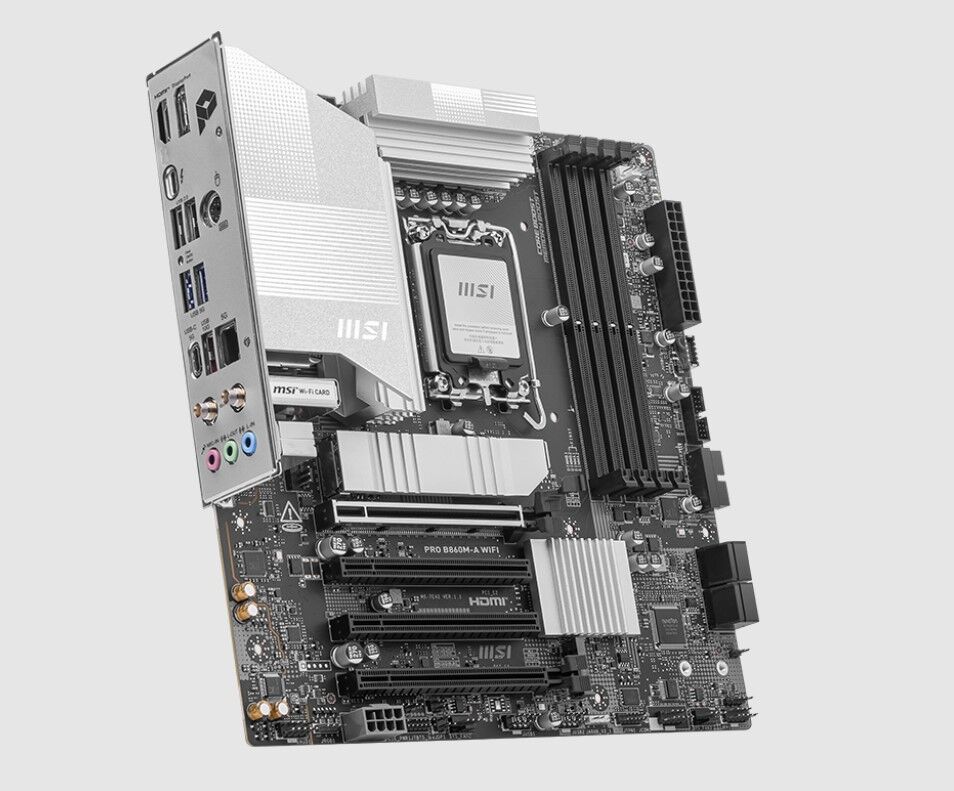

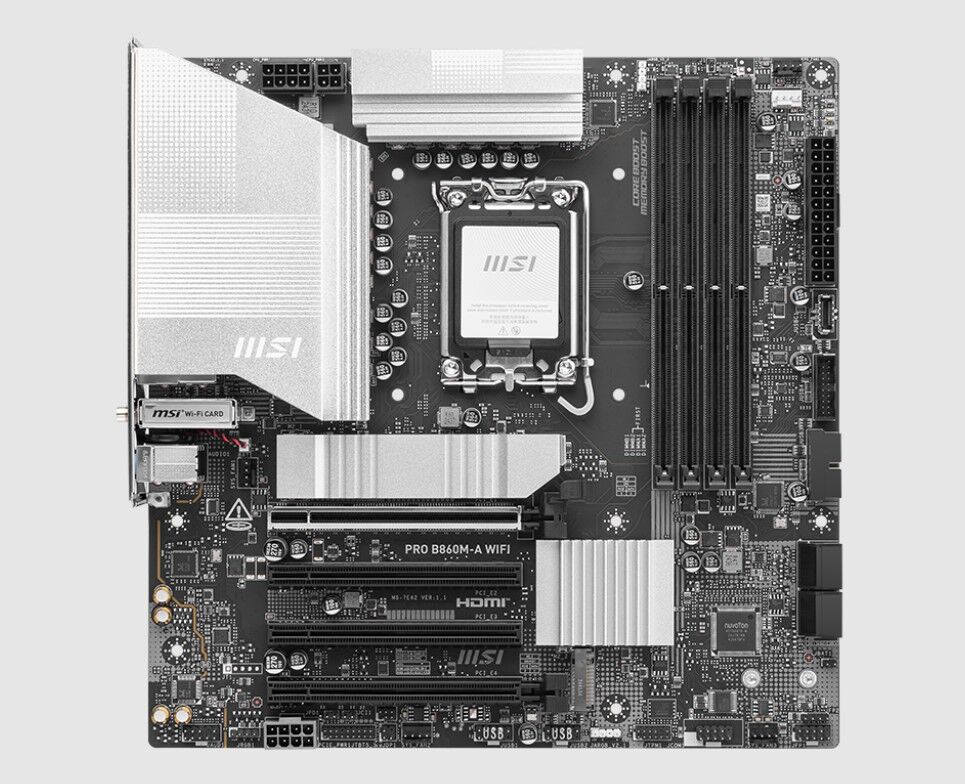

MSI PRO B860M-A WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16 slot, 3x M.2, 4x SATA, 6x USB 2.0, Intel Wi-Fi 7


Chipset

INTEL B860


CPU

Supports Intel Core„ Ultra Processors (Series 2)

LGA 1851


Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB


Onboard Graphics

1x HDMI„

Support HDMI„ 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

Support DisplayPort 1.4, maximum resolution of 4K 60Hz

1x Type-C DisplayPort

Thunderbolt„ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K 120Hz 8K 60Hz


Slot

4x PCI-E x16 slot


Audio

Realtek ALC897

7.1-Channel High Definition Audio


Storage

3x M.2

4x SATA 6G


RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices


Onboard Thunderbolt

1x Thunderbolt4 ports (Rear)

Supports up to 40Gbps transfer rate with Thunderbolt devices

Supports up to 20Gbps transfer rate with USB4 devices

Supports up to 10Gbps transfer rate with USB 3.2 devices

Supports up to 5V 3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display


USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

1x USB 5Gbps Type C (Rear)

4x USB 5Gbps Type A (Front)

1x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)


LAN

Realtek 8126-CG 5G LAN


WIRELESS LAN BLUETOOTH

Wi-Fi 7

Supports Bluetooth 5.4, MLO, 4KQAM


LED FEATURE

4x EZ Debug LED


OPERATING SYSTEM

Support for Windows 11 64-bit


PCB Info mATX

243.84mmx243.84mm

Specifications
SKU MBM-PROB860M-AWIFI
Barcode # 4711377286565
Brand MSI
Shipping weight 1.4000kg
Shipping width 0.176m
Shipping height 0.382m
Shipping length 0.376m

MSI PRO B860M-A WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16 slot, 3x M.2, 4x SATA, 6x USB 2.0, Intel Wi-Fi 7

$280.50
RRP $415.80 save 33%

or 4 payments of $70.12 with Learn more

In Stock

Product Information

SKU:

MBM-PROB860M-AWIFI

Brand:

MSI

Barcode #:

4711377286565

Shipping Weigth:

1.4000kg
