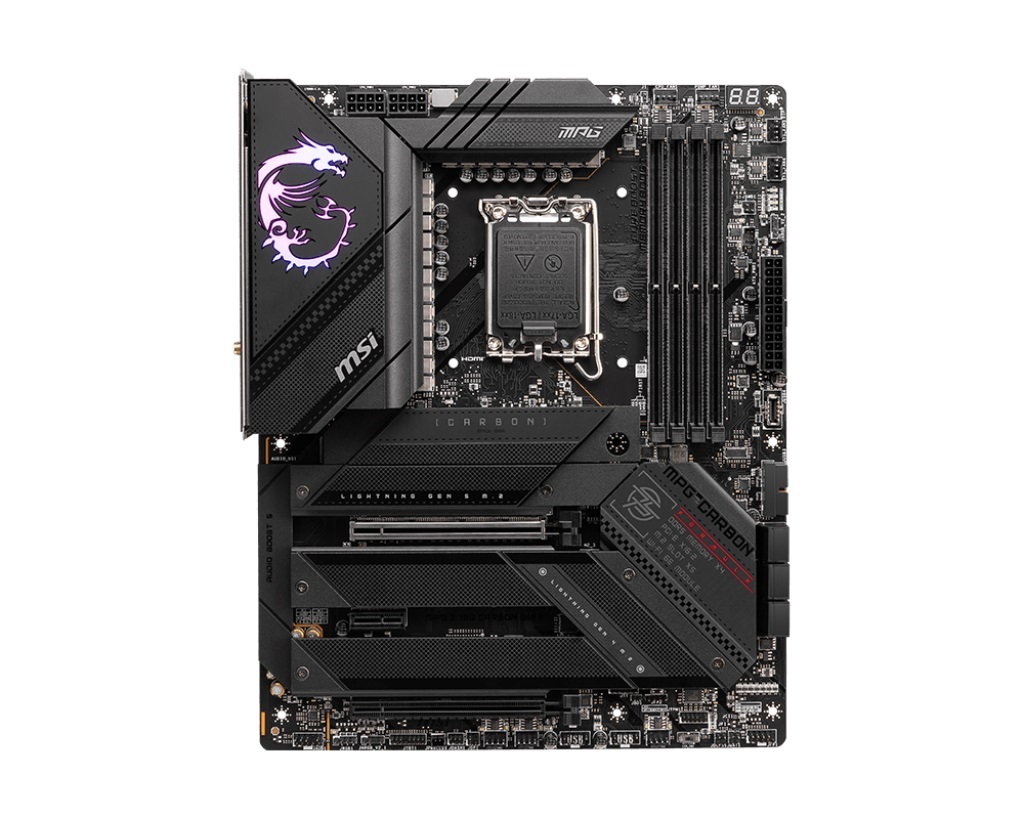

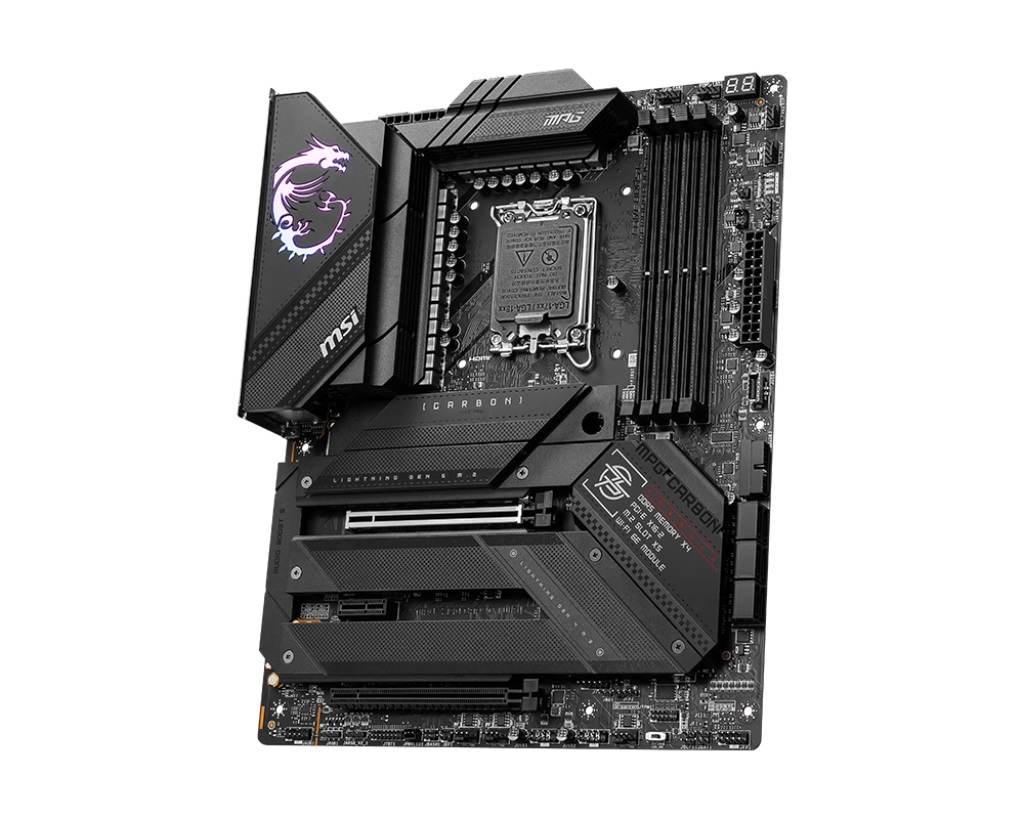

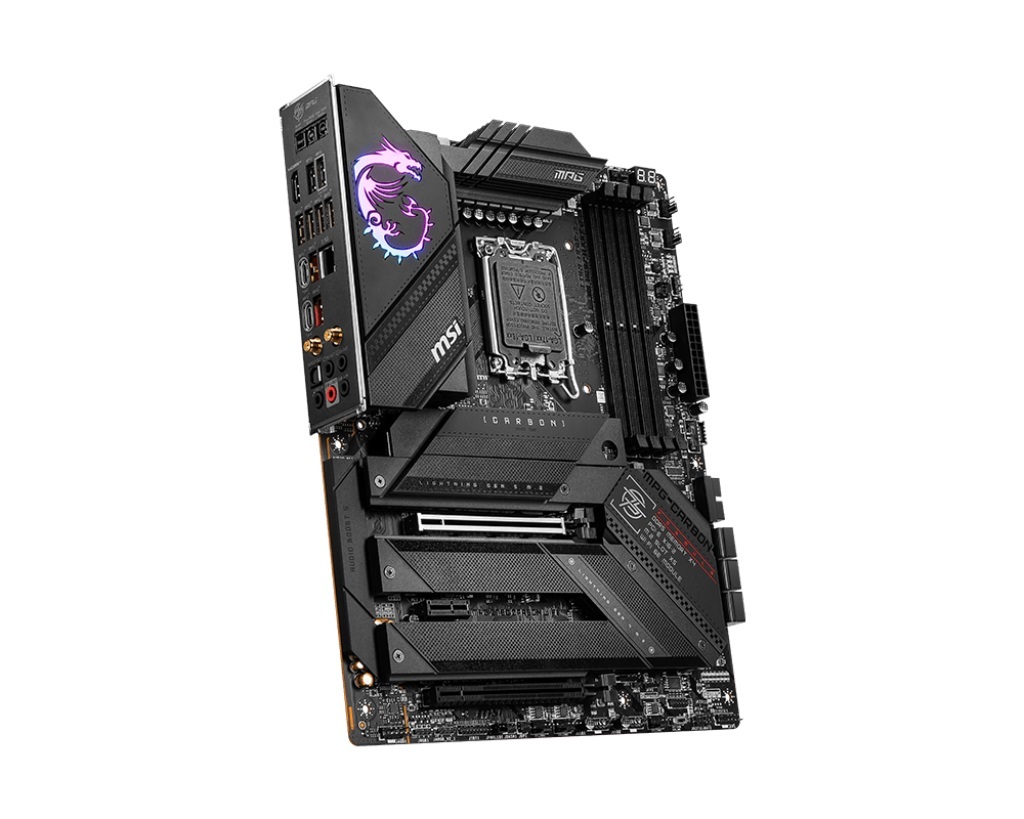

MSI MPG Z790 CARBON WIFI DDR5 Intel LGA 1700 E-ATX Motherboard, 4x DDR5~128GB, 1x PCI-E x 16, 1x PCI-E x 4, 5x M.2, 6x SATA, 1x USB 3.2,

CHIPSET INTEL Z790

CPU SUPPORT Supports 12th/13th Gen Intel Core„ Processors, Pentium Gold and Celeron Processors

LGA 1700

MEMORY 4x DDR5, Maximum Memory Capacity 128GB

Memory Support 7600+(OC)/7400 (OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC) /4800(JEDEC) MHz

Max. overclocking frequency:

1DPC 1R Max speed up to 7600+ MHz

1DPC 2R Max speed up to 6600+ MHz

2DPC 1R Max speed up to 6400+ MHz

2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS 1x HDMI„

Support HDMI„ 2.1 with HDR, maximum resolution of 4K 60Hz*

EXPANSION SLOT 2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

STORAGE 5x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices

M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices

6x SATA 6G port

PCB DIMENSION ATX

243.84mmx304.8mm
