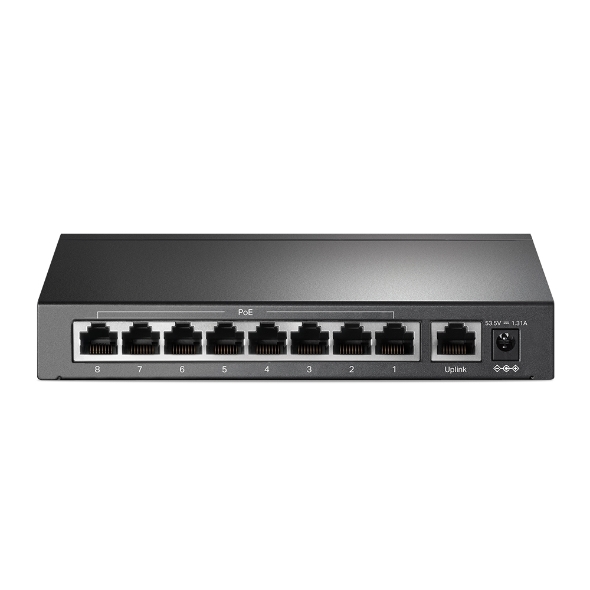

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

9× 10/100 Mbps RJ45 ports

8× PoE+ ports transfer data and power on individual cables

Works with IEEE 802.3af/at compliant PDs

Supports PoE Power up to 30 W for each PoE port

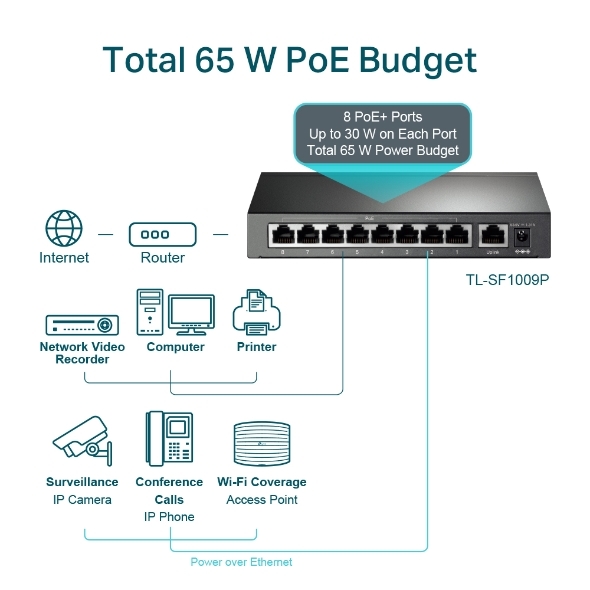

Supports PoE Power up to 65 W for 8 PoE ports*

Up to 250 m data and power transmitting range under Extend Mode**

Priority Mode ensures high priority of ports 1“2 to guarantee the quality of sensitive application

Isolation Mode allows one-click client traffic separation for higher security and performance

Plug and play with no configuration required

HARDWARE FEATURES

Interface 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)

AUTO Negotiation

AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Physical Security Lock Yes

External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A)

Packet Forwarding Rate 1.3392 Mpps

PoE Ports (RJ45) Standard: 802.3 af/at compliant

PoE Ports: Ports 1“8

Power Supply: 65 W

Mac Address Table 2K

Jumbo Frame 2 KB

Switching Capacity 1.8 Gbps

Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Max Power Consumption 3.6 (220/50 Hz. no PD connected)

77.08 (220/50 Hz. with 65 W PD connected)

Max Heat Dissipation 12.28 BTU/h (no PD connected)

262.84 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES

Transmission Method Store-And-Forward

Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs

Extend Mode Button (Ports 1“4 and Ports 1“8, Up to 250 m PoE power supply and data transmission)

Priority Mode Button (Ports 1“2)

Isolation Mode Button (Ports 1“8)

Mac Address Auto-Learning and Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
