Kingston 16GB (1x16GB) DDR4 SODIMM 3200MHz CL22 2Rx8 ValueRAM Notebook Laptop Memory DRAM CL22 260-Pin SODIMM

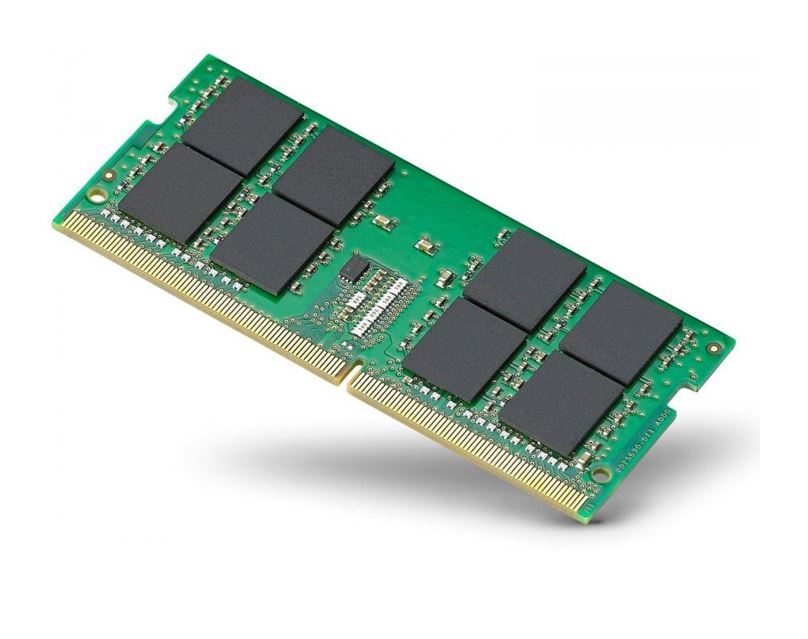

This document describes ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Features:

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for

data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Dual-rank

On-board I2 serial presence-detect (SPD) EEPROM

16 internal banks; 4 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8

via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.18' (30.00mm)

RoHS Compliant and Halogen-Free
