PHYSICAL CHARACTERISTICS

Dimensions: 6 in. H x 2.5 in. W x 3.34 in. D 15.2 cm H x 6.3 cm W x 8.4 cm

Weight: 5.29 oz/150 gm

Voltage and Current: 5 volts +/- 10% at 130 mA typical, 175 mA max

Power Source: Host power or external power supply

Colour: Twilight Black

PERFORMANCE CHARACTERISTICS

Scanner Type: Bi-directional

Light Source: 650 nm visible laser diode

Scan Element Frequency: 50Hz

Scan Rate: 100 scans per second typical

Nominal Working Distance: See chart below.

Print Contrast: 20% minimum reflective difference

Roll (Tilt): 1 1 +/- 30 degrees

Pitch: 2 2 +/- 65 degrees

Skew (Yaw): 3 3 +/- 60 degrees

Interfaces Supported: USB, RS232, Keyboard Wedge, IBM 468x/9x

ACCESSORIES

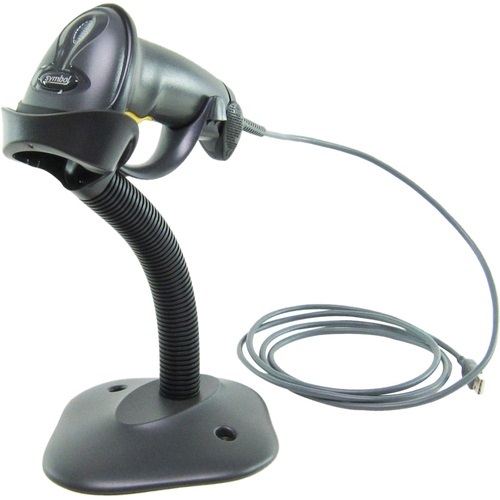

Hands-Free Intellistand„: 20-61019-01R or 20-61019-02R

USER ENVIRONMENT

Operating Temp.: 32° to 122° F/0° to 50° C

Storage Temp.: -40° to 158° F/-40° to 70° C

Humidity: 5% to 95% relative humidity, noncondensing

Drop Specifications: Unit functions normally after repeated 5 ft./1.5 m drops to concrete

Ambient Lighting Tolerant to typical artificial indoor and Tolerance: natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)

Electrostatic Discharge: Conforms to 15 kV air discharge and 8 kV of contact discharge

REGULATORY

Electrical Safety: Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950

EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori.

Laser Safety: CDRH Class II, IEC Class 2

Environmental: Compliant with RoHS directive 2002/95/EEC
