Description

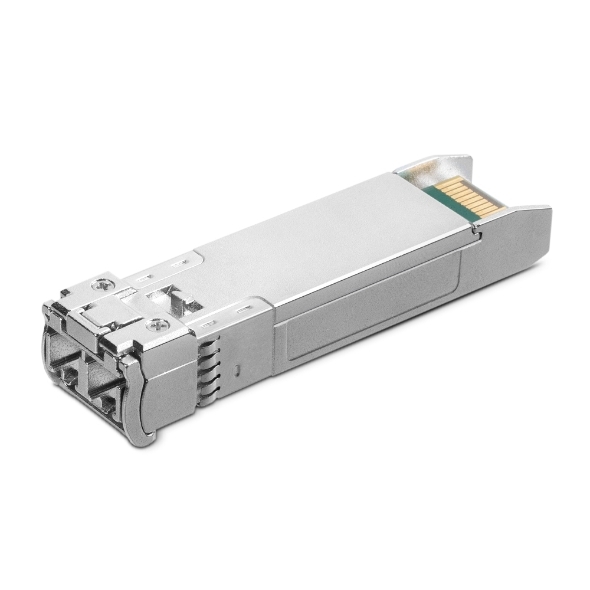

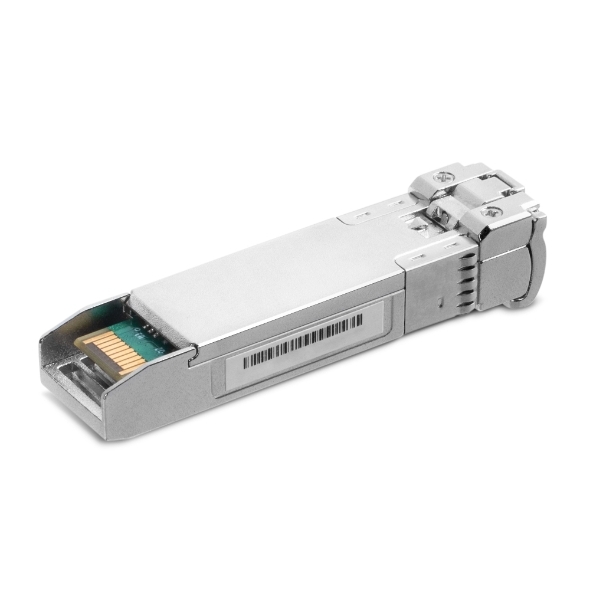

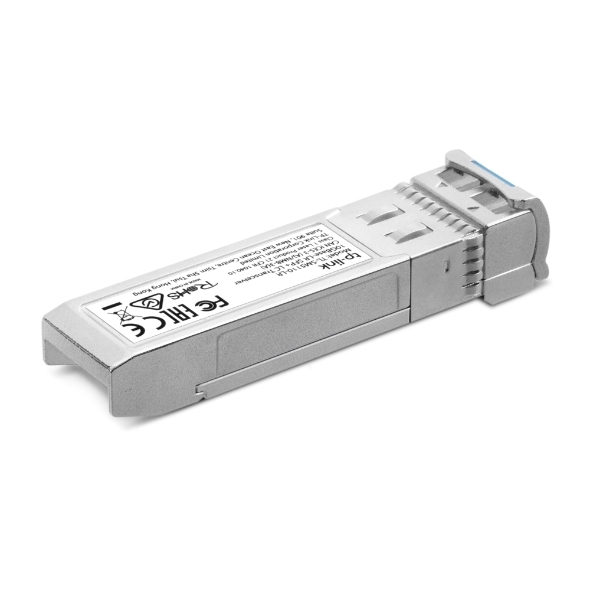

TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Hot-Pluggable, Supports Digital Diagnostic Monitoring, SFP+ MSA Compatible, 10KM


Single-mode SFP+ LC Transceiver

Hot-Pluggable with maximum flexibility

Supports Digital Diagnostic Monitoring (DDM)

Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)

Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.



HARDWARE FEATURES

DDM Yes

SFP-MSA Yes

Hot Swappable Yes


TRANSCEIVER

Standards and Protocols IEEE 802.3ae, TCP/IP

Wave Length 1310 nm

Power Supply 3.3V

Fiber Type 9/125um Single-Mode

Max. Cable Length 10 km

Data Rate 10 Gbps

Port Type LC Duplex

Safety & Emission FCC, CE

Environment Operating Temperature: 0“70 °C (32“158 °F)

Storage Temperature: -40“85 °C ( -40“185 °F)

Operating Humidity: 10“90% RH, Non-Condensing

Storage Humidity: 5“90% RH, Non-Condensing


Product Width (W) mm 122.5

Product Depth (D) mm 81.5

Product Height (H) mm 38.5

Product Weight Kg 0.06

Specifications
SKU NWTL-SM5110-LR
Barcode # 4897098682807
Brand TP-LINK
Shipping weight 0.6400kg
Shipping width 0.184m
Shipping height 0.138m
Shipping length 0.220m
Assembled length 1.200m
Assembled height 0.380m
Assembled width 0.840m

TP-Link TL-SM5110-LR 10GBase-LR SFP LC Transceiver Hot-Pluggable Supports Digital Diagnostic Monitoring SFP MSA Compatible 10KM

$71.92
RRP $85.00 save 15%

or 4 payments of $17.98 with Learn more

In Stock

Product Information

SKU:

NWTL-SM5110-LR

Brand:

TP-LINK

Barcode #:

4897098682807

Shipping Weigth:

0.6400kg

Warranty:

36
