Description

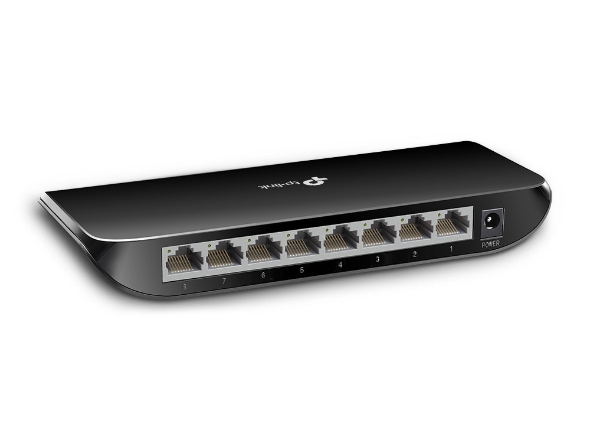

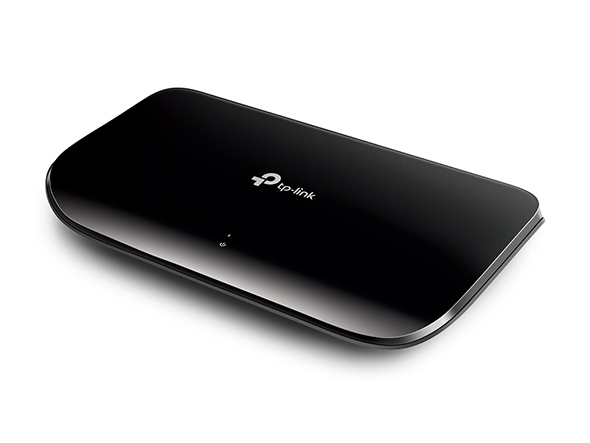

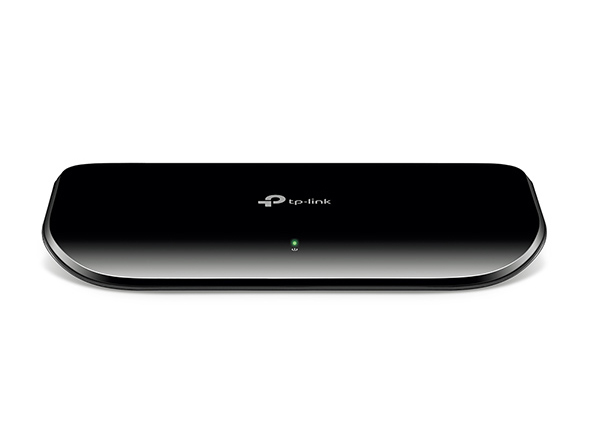

TP-Link TL-SG1008D 8-Port Gigabit Unmanaged Switch Desktop Wall-Mounting Plastic Case Fanless Supports MAC address 802.1p/DSCP QoS

8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX

Green Ethernet technology saves the power up to 80%

IEEE 802.3x flow control provides reliable data transfer

Plastic case, desktop or wall-mounting design

Plug and play, no configuration required


HARDWARE FEATURES

Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface 8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity Fanless

Physical Security Lock No

External Power Supply External Power Adapter (Output: 9VDC/0.6A)

Jumbo Frame 15 KB

Switching Capacity 16 Gbps

Dimensions ( W x D x H ) 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm)

Max Power Consumption 4.63W(220V/50Hz)

Max Heat Dissipation 15.80BTU/h


SOFTWARE FEATURES

Transfer Method Store and Forward

MAC Address Table 4K

Advanced Functions Green Technology

802.3X Flow Control

Back Pressure

802.1p/DSCP QoS (for V7 and later version)


OTHERS

Certification FCC, CE, RoHs

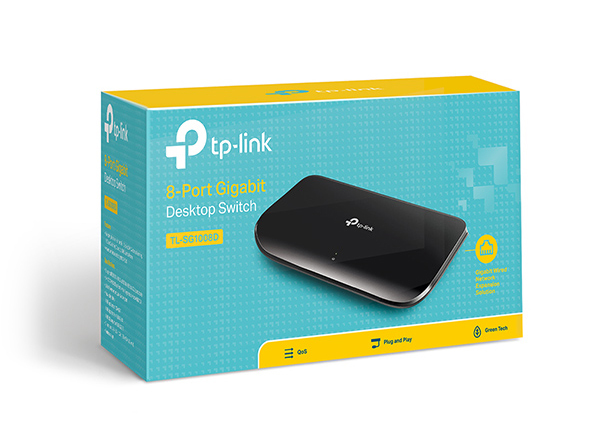

Package Contents 8-Port Gigabit Desktop Switch TL-SG1008D

Power Adapter

Installation Guide

System Requirements

Environment Operating Temperature: 0„ƒ~40„ƒ (32„‰~104„‰)

Storage Temperature: -40„ƒ~70„ƒ (-40„‰~158„‰)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing


Warranty Limited 3-Year Warranty

For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma

Specifications
SKU NWTL-SG1008D
Barcode # 6935364092313
Brand TP-LINK
Shipping weight 0.9200kg
Shipping width 0.214m
Shipping height 0.186m
Shipping length 0.288m
Assembled length 1.880m
Assembled height 0.860m
Assembled width 1.140m
