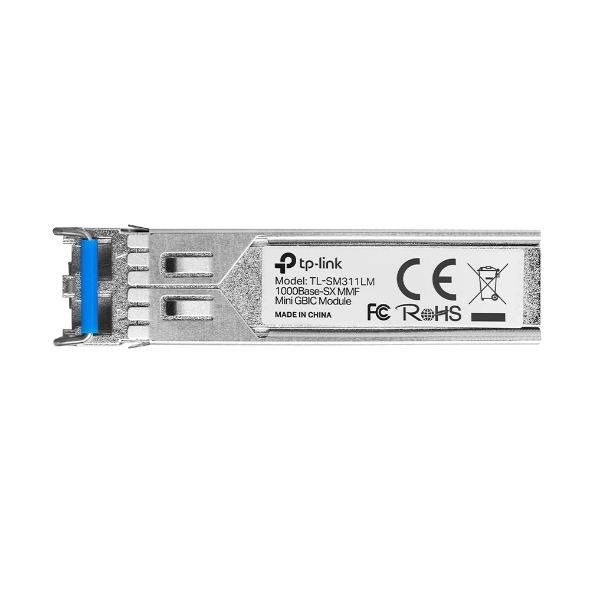

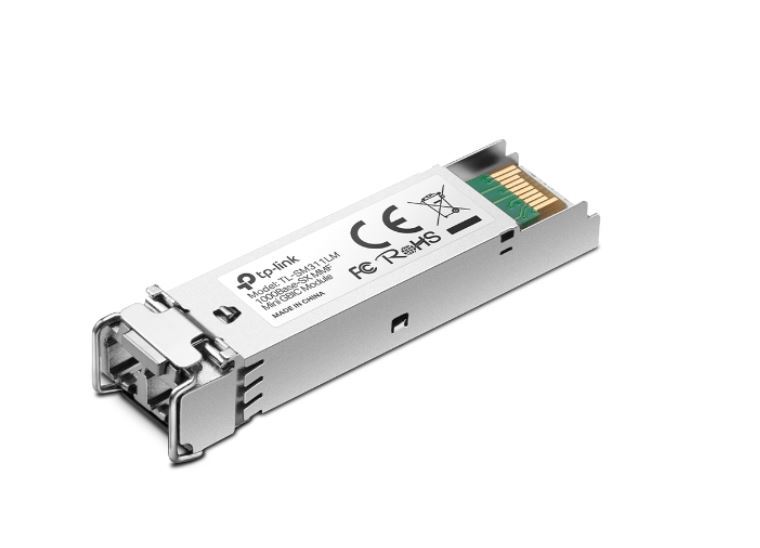

TP-Link SM311LM Multi-Mode Mini GBIC SFP Module for T3700G-28TQ TL-SG5412F TL-SG5428 TL-SL5428E TL-SG3210 TL-SG3216 TL-SG3424P TL-SL3428 TL-SL3452

Multi-mode MiniGBIC module

Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L

What This Product Does

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

Features

Supports full-duplex

Plug-and-Play

Supports Pull-or-Plug with power on switches

Power: internal power from switches

Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L

Supports full-duplex

Plug-and-Play

Supports Pull-or-Plug with power on switches

Power: internal power from switches

Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L

MEDIA CONVERTER & MODULE

Standards and Protocols IEEE 802.3z, CSMA/CD, TCP/IP

Wave Length 850nm

Power Supply 3.3V

Safety & Emission FCC, CE

Cabel Multi-mode Fiber

Fiber Type 50/125μm or 62.5/125μm Multi-mode

Max. Cable Length 550m

Data Rate 1.25Gbps

Port Type LC/UPC

Environment Operating Temperature: 0„ƒ~70„ƒ (32„‰~158„‰)

Storage Temperature: -40„ƒ~80„ƒ (-40„‰~176„‰)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
