Description

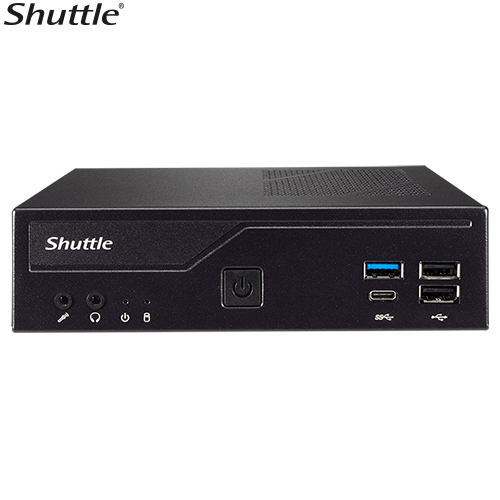

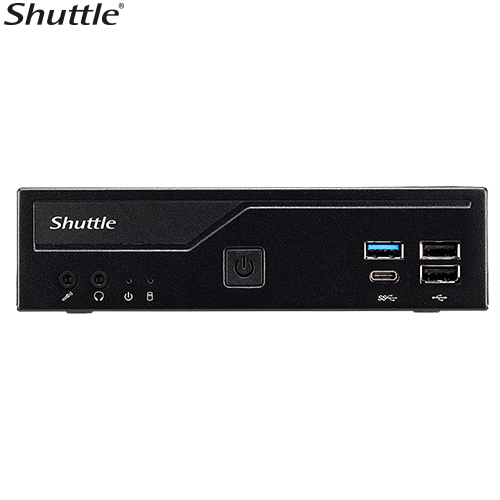

The Shuttle DH610, a 1-liter Slim model, effortlessly accommodates 14th Gen Intel Core„ Desktop and 13th 12th Gen processors via the LGA1700 socket. Featuring Intel fts hybrid architecture design, dual-channel DDR4-3200 memory (Max. 64GB), and integrated UHD Graphics 700 series, this model delivers reliable performance suitable for office use, digital signage, kiosks, and other multi-platform AI deployments. Moreover, the DH610 supports up to three displays via one HDMI 2.0b and two DisplayPort interfaces and provides comprehensive connectivity, enhancing productivity and flexibility!


- Support Intel 12 13 14th LGA1700 socket Core i3 i5 i7 i9, Pentium, Celeron 65W processor

- Supports up to 96GB DDR5 memory

- Supports three independent displays via one HDMI 2.0b and two DisplayPort

- Flexible connectivity: one M.2 2280 M Key (PCIe 4.0 x4 SATA), one M.2 2230 E

- USB 3.2 Gen1(Including one Type-C), four USB 2.0, and two RS232

- Intel 2.5GbE Intel 1GbE LAN that supports Wake On Lan and Teaming Mode


CPU

Support Intel 12 13 14th LGA1700 socket Core i3 i5 i7 i9, Pentium, Celeron 65W processor


Chipset

Intel H610


Video Engine Processor

Intel UHD Graphics series


Memory

2 x DDR5, Max. 96GB


Storage

1 x 2.5 ft ft HDD SSD (max. 12.5 mm) 1 x SD card


Expansion Slots

1 x M.2 2280, M Key 1 x M.2 2230, E Key


Video Output

1x HDMI Port

2x DisplayPort

1x VGA Port (Optional)

2x USB 3.2 Gen1 Gen2 (Front)

2x USB 2.0 (Front)

2x USB 3.2 Gen1 Gen2 (Rear)

2x USB 2.0 (Rear)

1x COM Port

1 x RS232 422 485, Support 5V 12V ft

1x Line out Mic in


Network LAN

1 x Intel 1G LAN

1 x Intel 2.5G LAN ft


Wifi

Optional


VESA

Bracket included

Specifications
SKU SYS-DH610V2
Barcode # 887993008950
Brand Shuttle
Shipping weight 2.5400kg
Shipping width 0.362m
Shipping height 0.238m
Shipping length 0.346m

Shuttle DH610 V2 Slim Mini PC 1L Barebone - Intel 12th 13th 14th Gen , 2xDDR5 (max96g), 2.5 ft HDD SSD bay, 2xLAN (1G 2.5G), 2xRS232, HDMI, 2xDP, 120

$606.10
RRP $878.90 save 31%

or 4 payments of $151.53 with Learn more

In Stock

Product Information

SKU:

SYS-DH610V2

Brand:

Shuttle

Barcode #:

887993008950

Shipping Weigth:

2.5400kg
