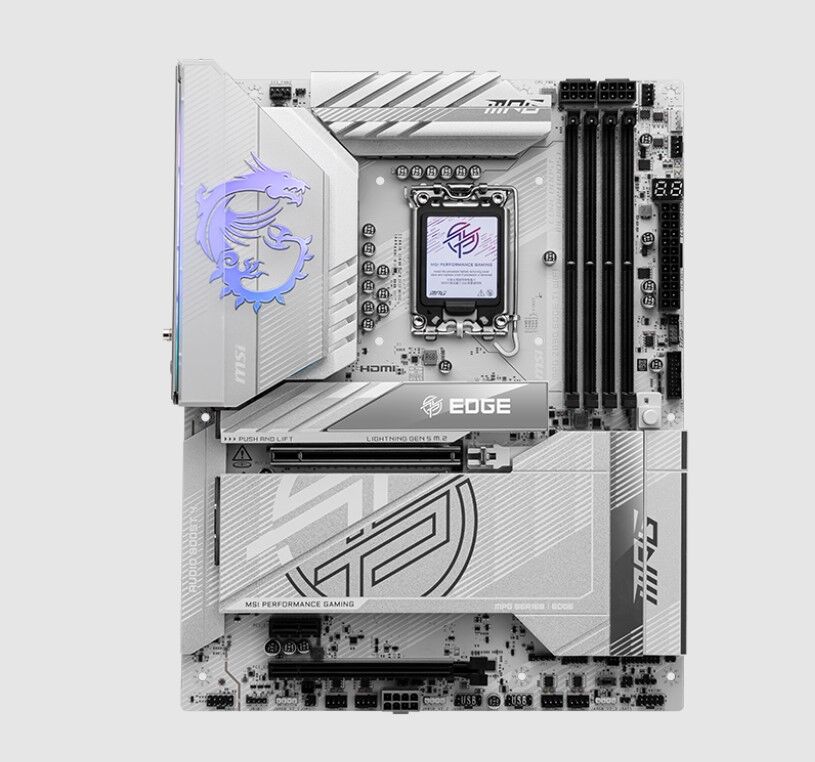

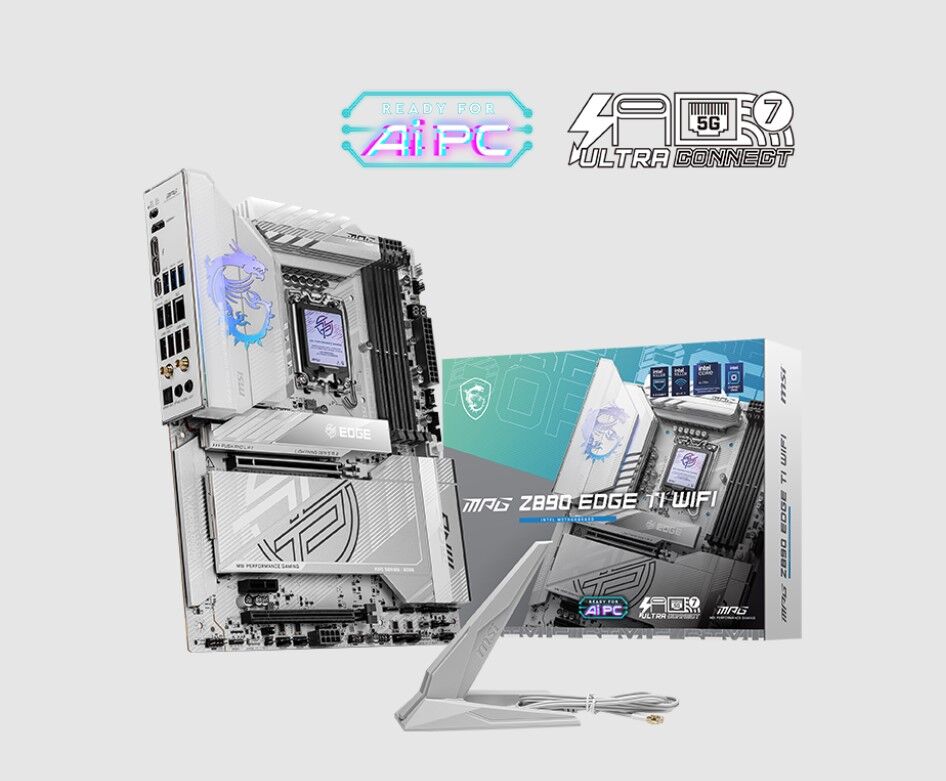

MSI MPG Z890 EDGE TI WIFI, INTEL Z890, 4x DDR5 256GB, 1x HDMI, 2x PCI-E x16 slot, 1x PCI-E x1, 5x M.2, 5x USB 2.0, Intel Killer„ BE1750x Wi-Fi 7

Chipset INTEL Z890

CPU Supports Intel Core„ Ultra Processors (Series 2) LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 9200 - 6400 (OC) MT s 6400 - 4800 (JEDEC) MT s

Max. overclocking frequency:

1DPC 1R Max speed up to 9200 MT s

1DPC 2R Max speed up to 7200 MT s

2DPC 1R Max speed up to 4800 MT s

2DPC 2R Max speed up to 4800 MT s

Supports Intel POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

Onboard Graphics

1x HDMI„

Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz

2x Type-C DisplayPort

ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K 120Hz 8K 60Hz

Slot

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage

5x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 2260 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110 2280 devices

M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 SATA mode, supports 22110 2280 2260 devices

4x SATA 6G

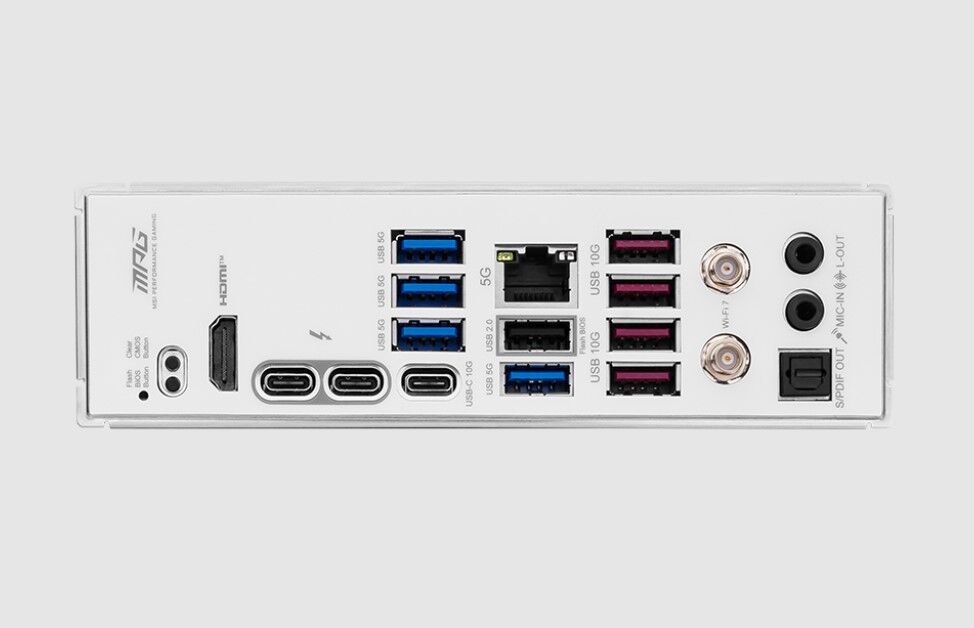

USB

1x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

4x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

LAN 1x Intel Killer„ E5000B 5G LAN

WIRELESS LAN BLUETOOTH Intel Killer„ BE1750x Wi-Fi 7

OPERATING SYSTEM Support for Windows 11 64-bit

PCB Info ATX

243.84mmx304.8mm
