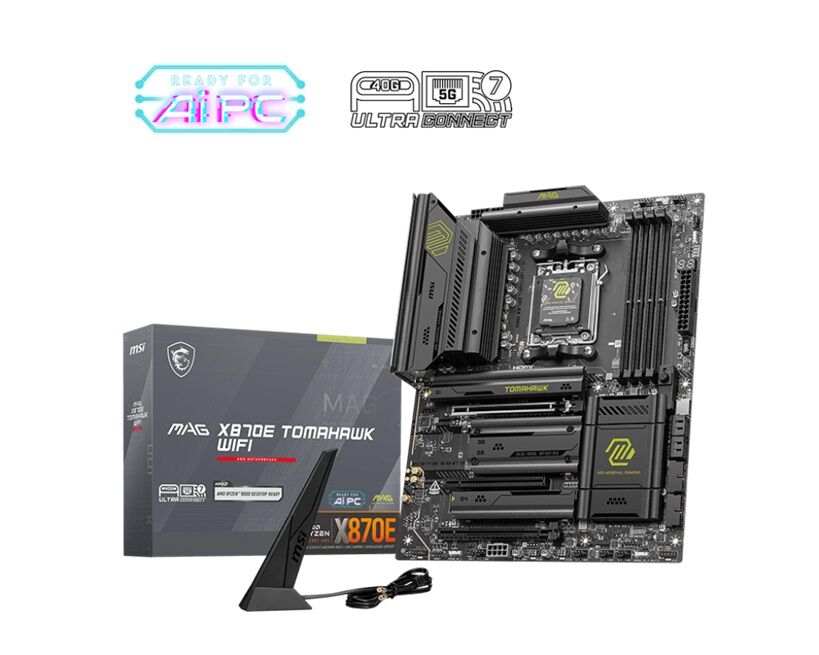

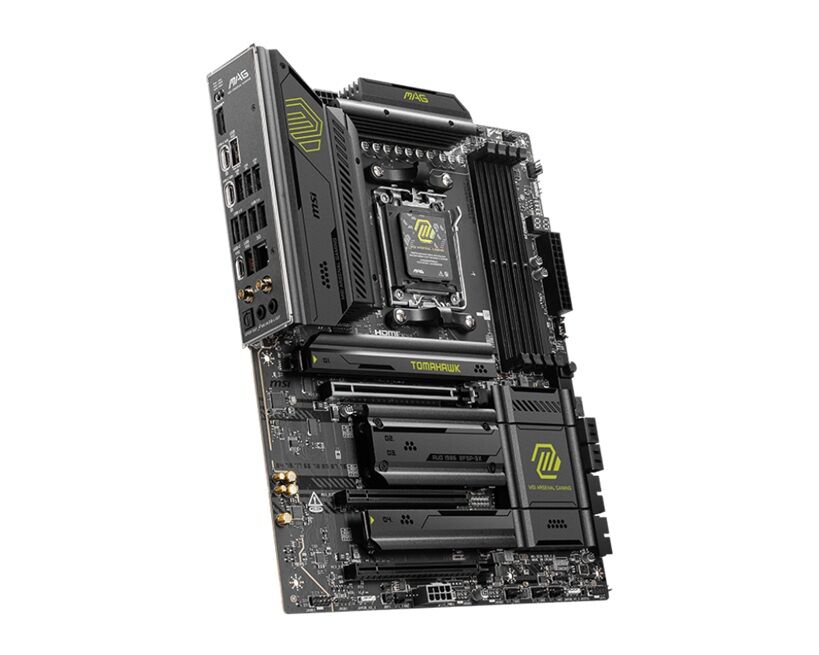

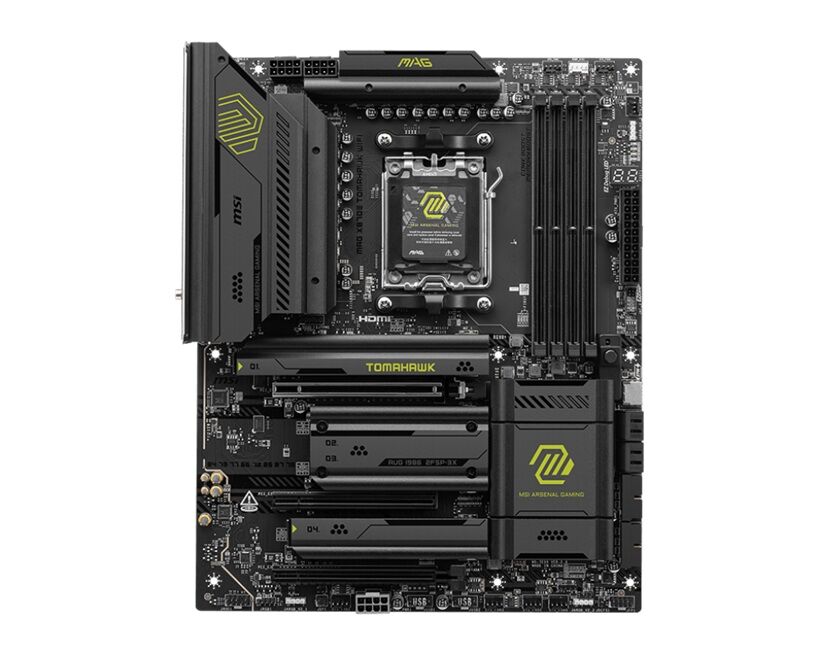

MSI MAG X870E TOMAHAWK WIFI: AM5, Ryzen 9000 8000 7000, DDR5-8400, PCIe 5.0, Gen5 M.2, USB-C 40Gbps, Wi-Fi 7, BT 5.4, 5G LAN, HDMI 8K, Audio Boost 5

FEATURES

Lightning USB 40G

Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.

EZ PCIe Release

A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.

EZ M.2 Shield Frozr II

The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier

Extended Heatsink Design

MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

Lightning Gen 5

The latest PCIe 5.0 solution with up to 128GB s bandwidth for maximum transfer speed.

5G Network Solution

Featuring premium 5G LAN to deliver better network experience.

Quadruple M.2 Connectors

Onboard quadruple M.2 connectors for the maximum storage performance.

Wi-Fi 7

The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is

2.4 times faster than Wi-Fi 6 6E.

Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

Audio Boost 5

Isolated audio with a high quality audio processor for the most immersive gaming experience

SPECIFICATIONS

Model Name MAG X870E TOMAHAWK WIFI

CPU Support Supports AMD Ryzen„ 9000 8000 7000 Series Desktop

Processors

CPU Socket AMD Socket AM5

Chipset AMD X870E Chipset

Graphics Interface 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot

Display Interface Support 8K 60Hz as specified in HDMI„ 2.1 FRL “ Requires

Processor Graphics

Memory Support 4 DIMMs, Dual Channel DDR5-8400 MT s (OC)

Storage

2x M.2 Gen5 x4 128Gbps slots

2x M.2 Gen4 x4 64Gbps slots

4x SATA 6Gbps ports

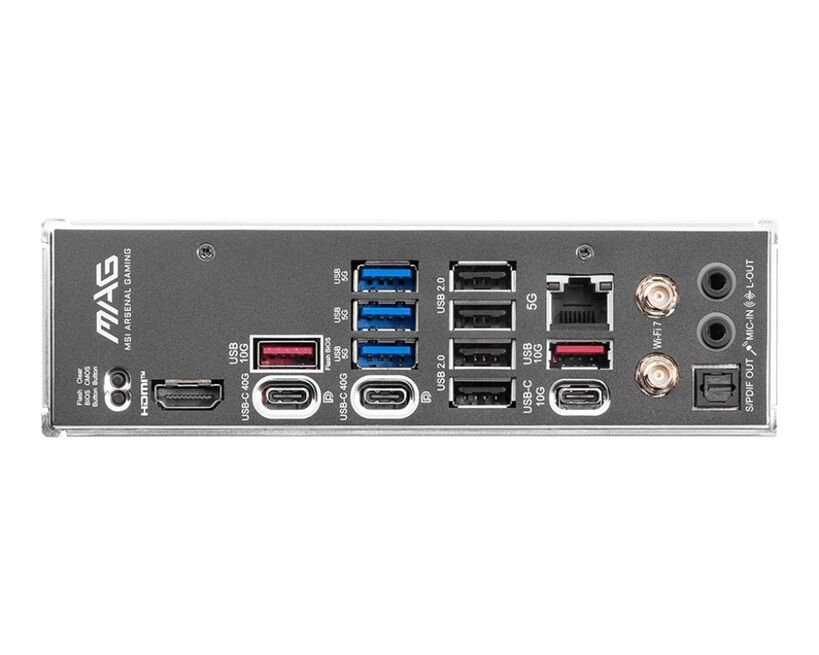

USB ports 2x USB 40Gbps (2 Type-C)

1x USB 20Gbps (1 Type-C)

3x USB 10Gbps (2 Type-A 1 Type-C)

7x USB 5Gbps (7 Type-A)

8x USB 2.0

LAN Realtek 5G LAN

Wireless Bluetooth Wi-Fi 7 Solution, Bluetooth 5.4

Audio 8-Channel (7.1) HD Audio with Audio Boost 5
