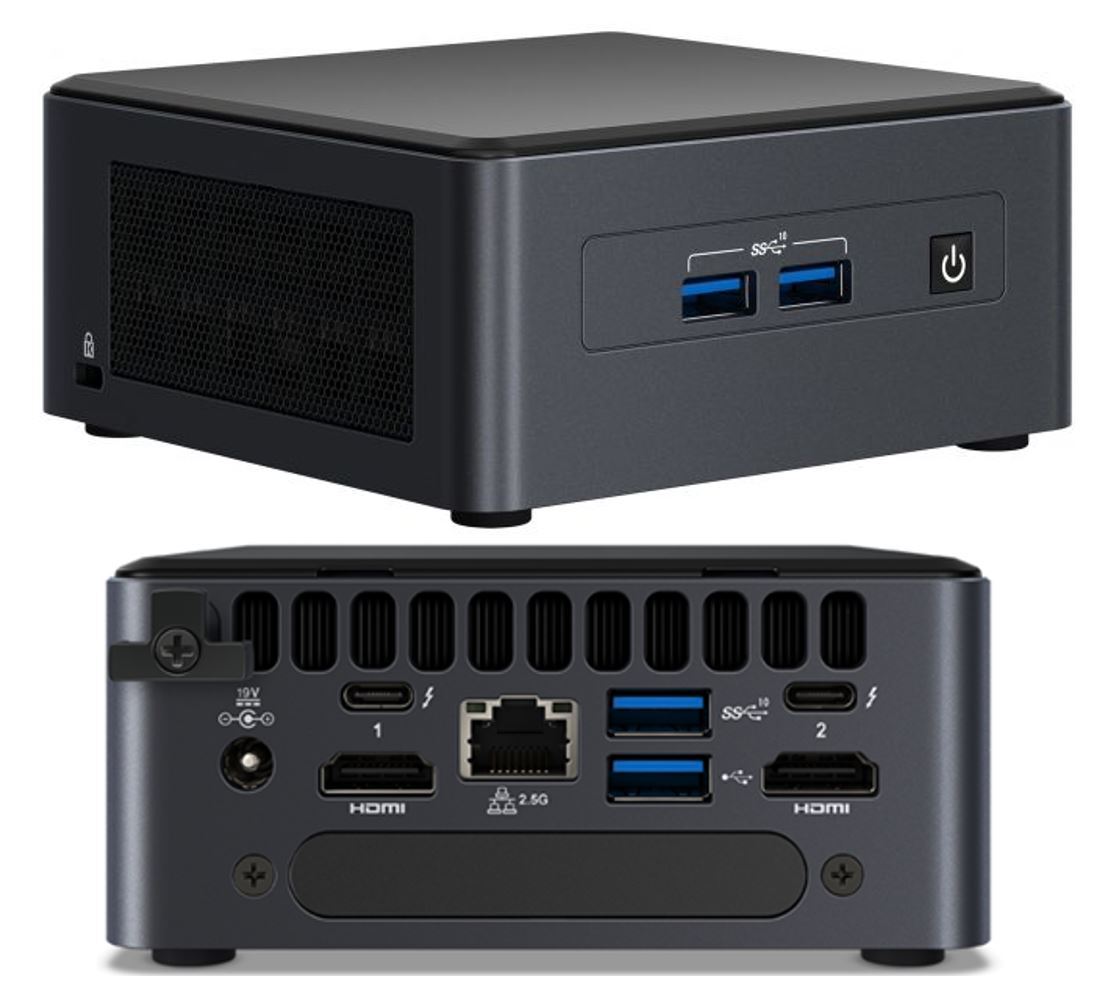

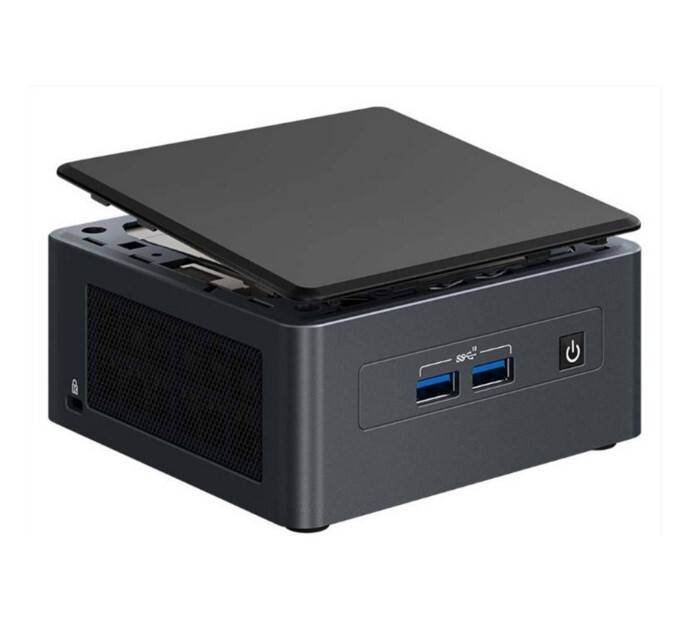

Intel NUC i5-1135G7 Pro 11th 4.2GHz 2xDDR4 SODIMM 2.5' M.2 4xDisplays Integrated Graphics Dual HDMI2.0 Dual DP 1xUSB-C 2xTB3 WiFi6 3xUSB LAN BT

Product Collection Intel NUC Kit with 11th Generation Intel Core„ Processors

Code Name Products formerly Tiger Canyon

Marketing Status Launched

Supported Operating Systems Windows 11 Home* | Windows 11 Pro* | Windows 10 Home | 64-bit* | Windows 10 IoT Enterprise* | Windows 10 Pro | 64-bit* | Red Hat Linux* | Ubuntu 20.04 LTS*

Board Number NUC11TNBi5

Board Form Factor UCFF (4' x 4')

Socket Soldered-down BGA

Internal Drive Form Factor M.2 and 2.5' Drive

# of Internal Drives Supported 3

TDP 28 W

DC Input Voltage Supported 12-20 VDC

Processor Included Intel Core„ i5-1135G7 Processor (8M Cache | up to 4.20 GHz)

Total Cores 4

Total Threads 8

Lithography 10 nm SuperFin

Max Turbo Frequency 4.20 GHz

Embedded Options Available No

Max Memory Size (dependent on memory type) 64 GB

Memory Types DDR4-3200 1.2V SO-DIMMs

Max # of Memory Channels 2

Max # of DIMMs 2

ECC Memory Supported ¡ No

Integrated Graphics ¡ Yes

Graphics Output Dual HDMI 2.0b w/HDMI CEC | Dual DP 1.4a via Type C

# of Displays Supported ¡ 4

PCI Express Revision Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)

PCI Express Configurations ¡ PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E)

M.2 Card Slot (wireless) 22x30 (E)

M.2 Card Slot (storage) 22x80 NVMe (M); 22x42 SATA (B)

# of USB Ports 4

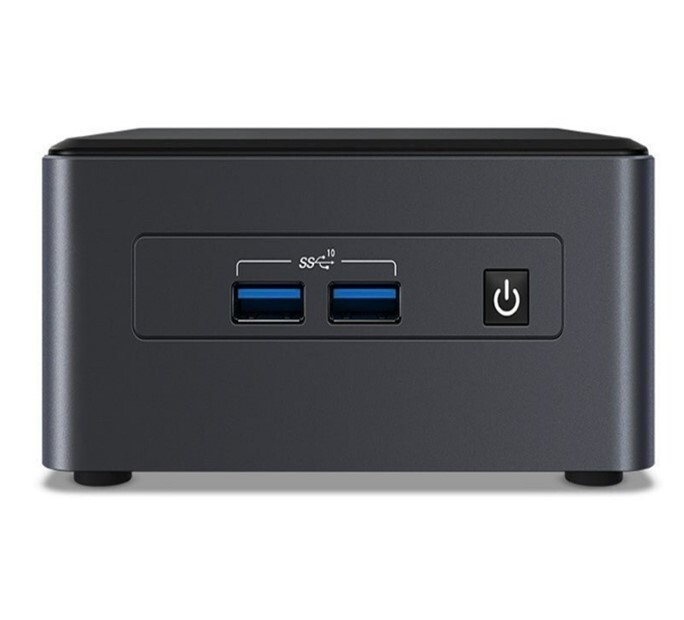

USB Configuration Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins) | 2x USB 2.0 (headers)

Total # of SATA Ports 1

Serial Port via Internal Header Yes

Integrated LAN Intel Ethernet Controller i225-LM

Integrated Wireless¡ Intel Wi-Fi 6 AX201

Integrated Bluetooth Yes

Additional Headers Front_panel (PWR | RST | 5V | 5Vsby | 3.3Vsby); Internal 2x2 power connector

# of Thunderbolt„ Ports 1x Thunderbolt„ 4 | 1x Thunderbolt„ 3
