Gigabyte AORUS Radeon„ RX 9070 XT ELITE 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, DirectX 12 API, PSU 850W, 8 pin3, DisplayPort 2.1a 2 HDMI 2.1b 2

SPECIFICATION

Graphics Processing

Radeon„ RX 9070 XT

Core Clock

Boost Clock : up to 3100 MHz (Reference card: 2970 MHz)

Game Clock : up to 2570 MHz (Reference card: 2400 MHz)

Stream Processors

4096

Memory Clock

20 Gbps

Memory Size

16GB

Memory Type

GDDR6

Memory Bus

256 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=339 W=136 H=59 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

850W

Power Connectors

8 pin3

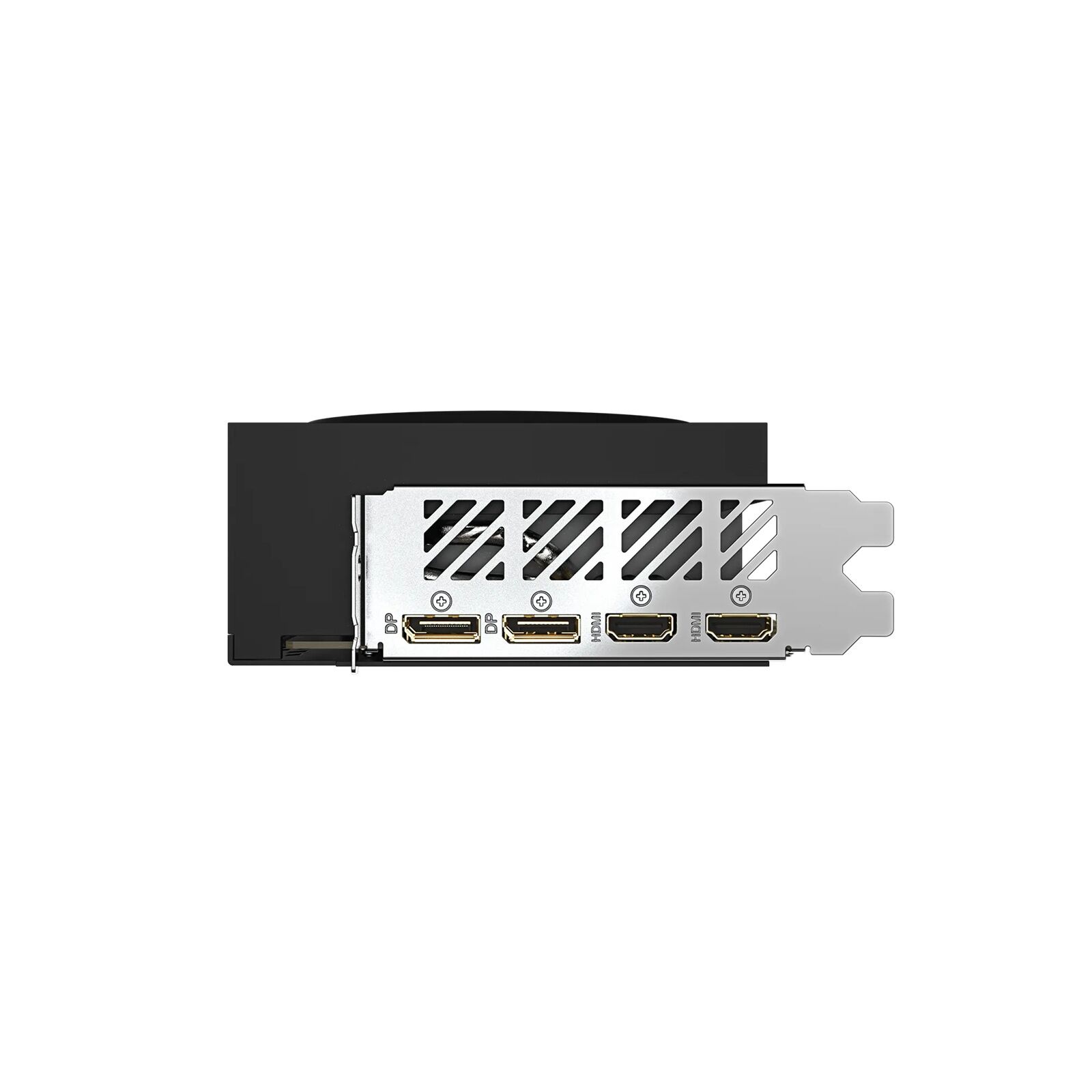

Output

DisplayPort 2.1a 2

HDMI 2.1b 2

Accessories

1. Quick guide

2. Warranty registration

3. AORUS metal sticker

4. Versatile VGA holder

5. Versatile VGA holder manual

Note

œBoost Clock ft is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151

œGame Clock ft is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147

FEATURES

FEATURES

Powered by Radeon„ RX 9070 XT

Integrated with 16GB GDDR6 256bit memory interface

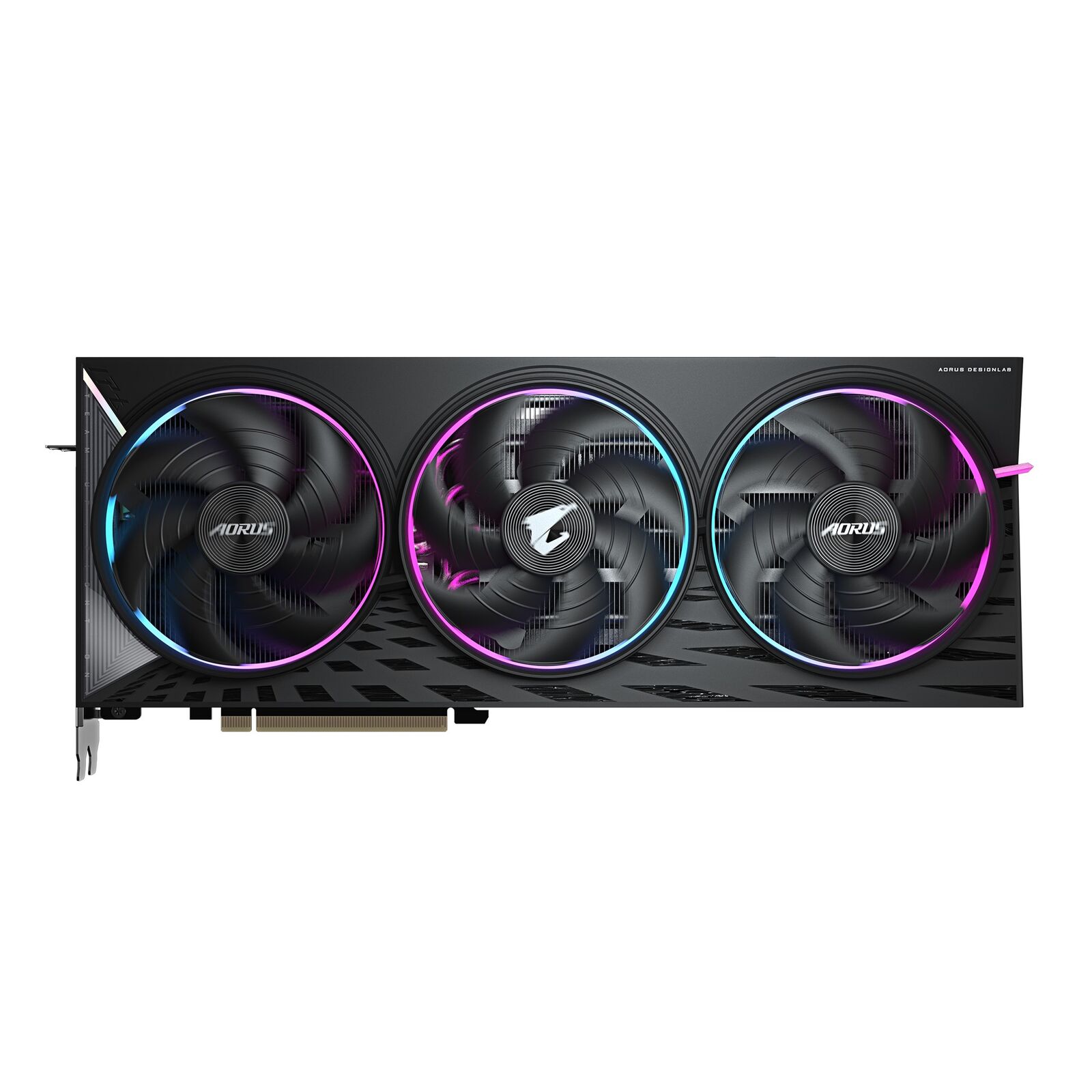

WINDFORCE cooling system

Hawk fan

Server-grade Thermal conductive gel

RGB Halo

Dual BIOS (Performance Silent)

Reinforced structure

Versatile VGA holder

4 years warranty (Online registration required)

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

UNCOMPROMISING CRAFTSMANSHIP PERFORMANCE

Shuttling through the AORUS universe, the iconic light slices through the visual field, while extreme speed leaves afterimages that culminate in a truly one-of-a-kind symbol.

SPEED WITH AFTERIMAGE EFFECT

The design focuses on extensive afterimage effects to convey an intense sense of extreme speed on the front cover, with the visuals converging into the fans. Paired with a matte surface texture, the overall appearance is imbued with a mysterious yet dynamic aura.

OVERLAY DESIGN

The AORUS logo on the side utilizes an overlay design to create a gradient effect, enriching the visual layers while also presenting a dynamic and vibrant aesthetic.

RGB HALO

The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I O bracket, provides exceptional structural integrity.
