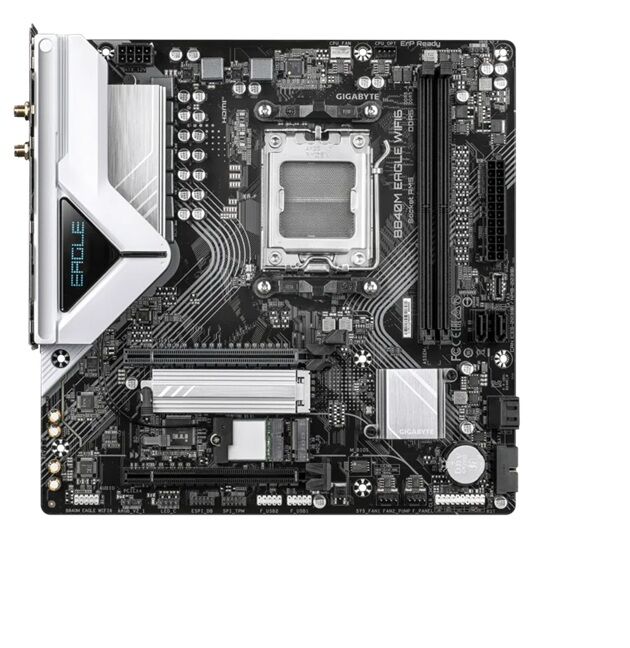

B840M EAGLE ,AMD AM5 B850, Ryzen 7000 8000 9000, 4xDDR5 256GB EXPO XMP, PCIe 5.0 x16, 2xM.2, 4xSATA, 2.5GbE LAN, Wi-Fi 6E, HDMI, DP, USB-C 3.2

Processor Support:

Compatible with AMD Ryzen„ 9000, 8000, and 7000 series CPUs.

Supports integrated Radeon„ graphics on compatible processors, allowing for triple-display setups via HDMI and DisplayPort.

Memory:

4 DDR5 DIMM slots supporting up to 256 GB of system memory.

Supports ultra-fast DDR5 memory speeds up to 8200 MT s (overclocked), with dual-channel architecture.

Compatible with AMD EXPO„ and Intel XMP memory profiles for easy overclocking.

Integrated Graphics:

Features AMD Radeon„ Graphics support with:

1 x HDMI 2.1 port (up to 4K 60Hz, HDR, HDCP 2.3)

2 x DisplayPort 1.4 ports (up to 4K 144Hz)

Supports up to three displays simultaneously, depending on CPU graphics capabilities.

Networking Connectivity:

Wired: Realtek 2.5GbE LAN for high-speed, low-latency networking.

Wireless: Realtek Wi-Fi 6E (RTL8852CE) for next-gen wireless connectivity.

Expansion Slots:

1 x PCIe x16 slot integrated with the CPU (supports PCIe 5.0 or 4.0 depending on processor series).

1 x PCIe x16 slot via the chipset, running at PCIe 3.0 x4.

Flexible support for graphics cards and NVMe SSDs.

Storage Options:

Dual M.2 slots integrated with the CPU:

M2A_CPU: Supports PCIe 5.0 4.0 NVMe SSDs, sizes up to 25110

M2B_CPU: Supports PCIe 4.0 NVMe SSDs, sizes up to 22110

4 x SATA 6Gb s ports for traditional storage drives.

RAID support for NVMe (0,1,5,10) and SATA drives (0,1,10), with RAID 5 exclusive to Ryzen 9000 series.

USB Connectivity:

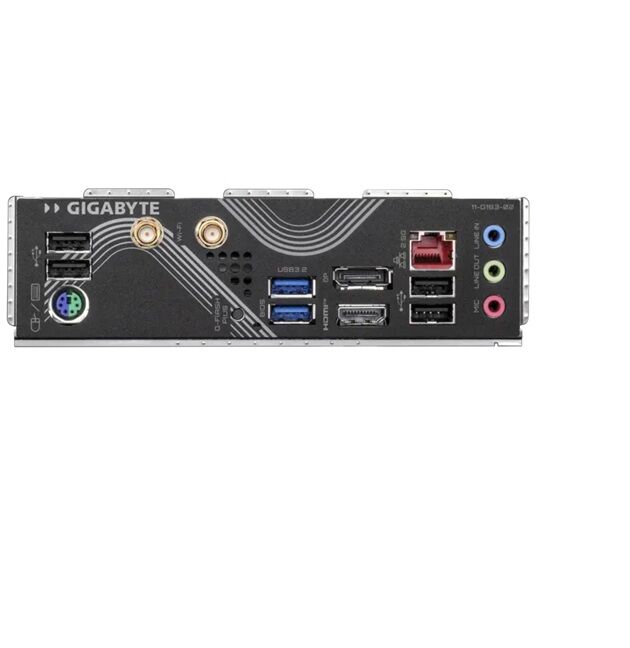

Rear I O:

1 x USB Type-C (USB 3.2 Gen 2)

1 x USB 3.2 Gen 2 Type-A

4 x USB 2.0 1.

1

Internal headers:

1 x USB Type-C (USB 3.2 Gen 2)

2 x USB 3.2 Gen 1

4 x USB 2.0 1.1
