Description

Output

Output power capacity: 800 Watts / 1.0 kVA

Max Configurable Power (Watts): 800 Watts / 1.0 kVA

Nominal Output Voltage: 230V

Output Voltage Distortion: Less than 5%

Output Frequency (sync to mains): 50/60Hz +/- 3 Hz

Topology: Line Interactive

Waveform type: Sine wave

Output Connections: (8) IEC 320 C13 (Battery Backup)


Input

Nominal Input Voltage: 230V

Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections: IEC-320 C14

Input voltage range for main operations: 160 - 286 V

Input voltage adjustable range for mains operation: 151 - 302 V

Number of Power Cords: 1


Batteries & Runtime

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time: 3 hour(s)

Replacement Battery: APCRBC116

Battery Slots Empty: 1

RBC Quantity: 1

DC Overcurrent Protection: 60 A

Battery Volt-Amp-Hour Capacity: 299

Extended Run Options: APC-Smart-UPS-X-750VA-Rack-Tower-LCD-230V

Runtime: View Runtime Graph View Runtime Chart

Efficiency: View Efficiency Graph


Communications & Management

Interface Port(s): SmartSlot, USB

Control panel: Multi-function LCD status and control console

Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Emergency Power Off (EPO): Yes

Available SmartSlot„ Interface Quantity: 1


Surge Protection and Filtering

Surge energy rating: 600 Joules

Filtering: Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449

Specifications
SKU UPAPC-SMX1000I
Barcode # 731304268635
Brand APC
Shipping weight 26.3400kg
Shipping width 0.348m
Shipping height 0.696m
Shipping length 0.725m
Assembled length 6.250m
Assembled height 5.960m
Assembled width 2.480m

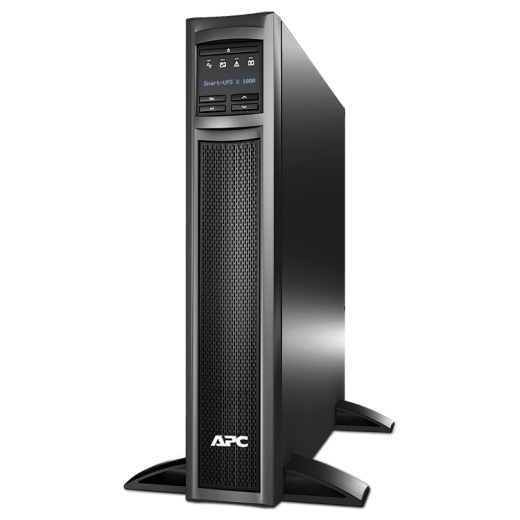

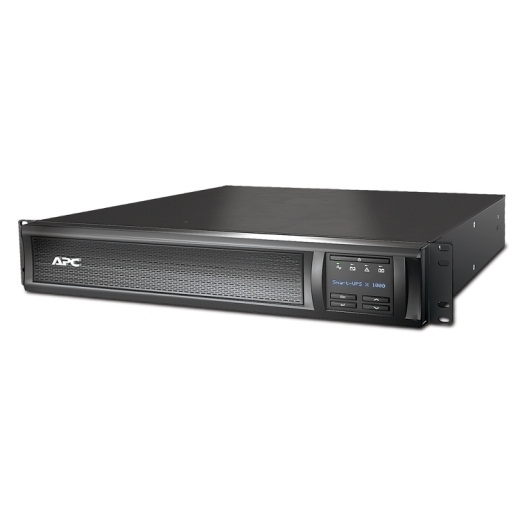

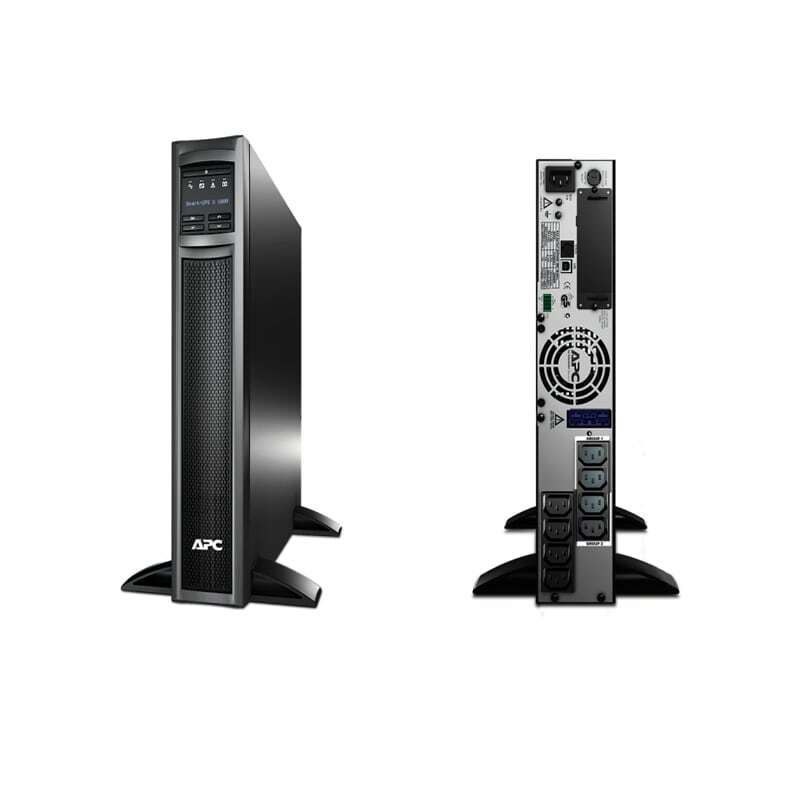

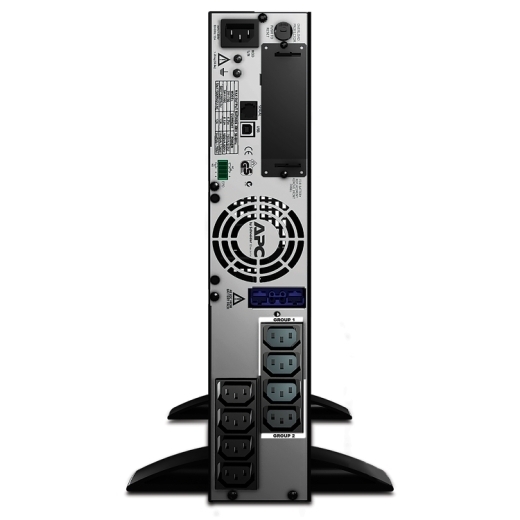

APC Smart-UPS X 1000VA 800W Line Interactive UPS 2U RM Tower 230V 10A Input 8x IEC C13 Outlets Lead Acid Battery SmartSlot

$1,402.44
RRP $1,815.00 save 23%

or 4 payments of $350.61 with Learn more

In Stock

Product Information

SKU:

UPAPC-SMX1000I

Brand:

APC

Barcode #:

731304268635

Shipping Weigth:

26.3400kg

Warranty:

36
