Description

Output:

- Output Power Capacity: 260 Watts / 420 VA

- Max Configurable Power: 260 Watts / 420 VA

- Nominal Output Voltage: 230V

- Output Voltage Distortion: Less than 5% at full load

- Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal

- Crest Factor: up to 5 : 1

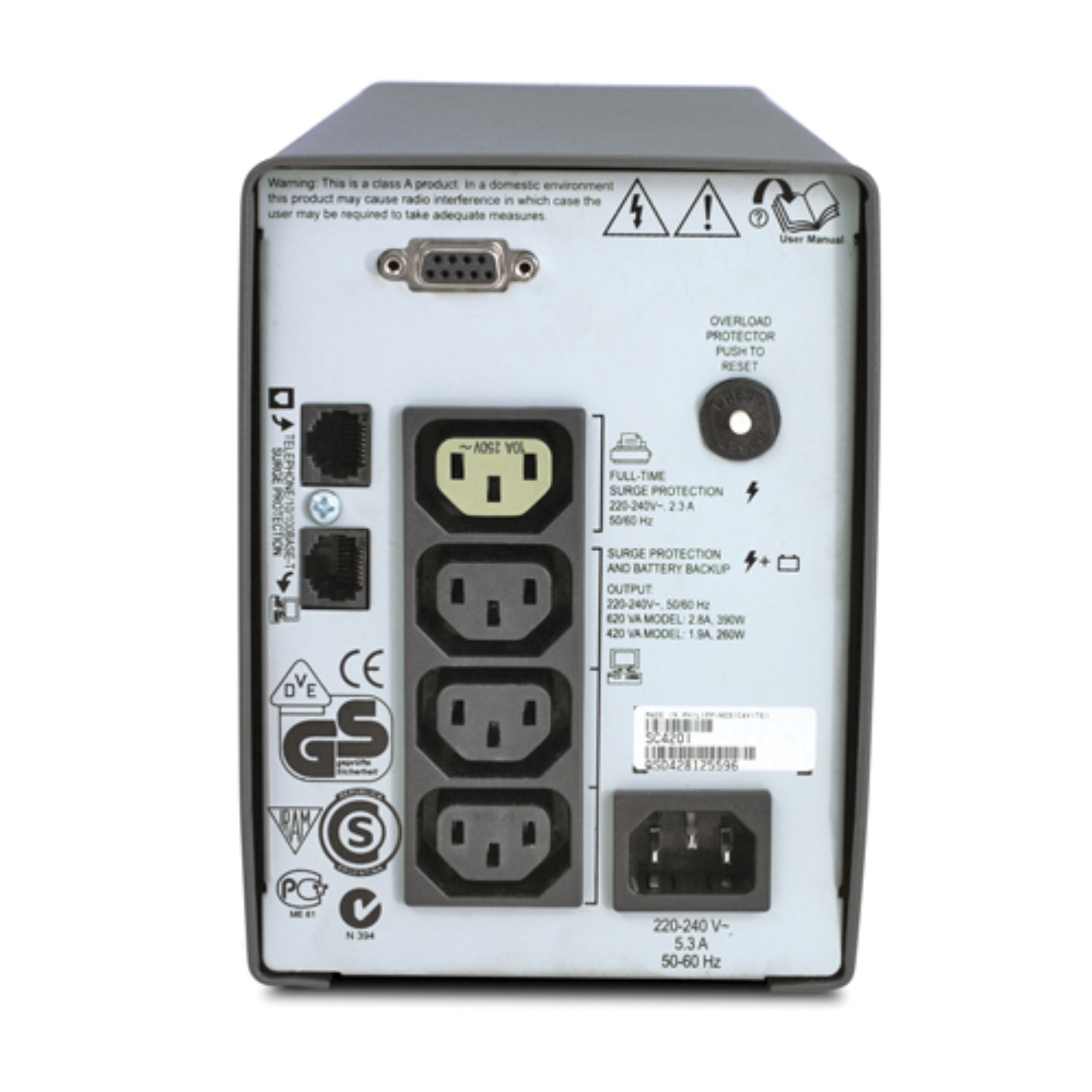

- Output Connections: (1) IEC 320 C13 (3) IEC 320 C13 (2) IEC Jumpers

Input:

- Nominal Input Voltage: 230V

- Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)

- Input Connections: IEC-320 C14 inlet

- Input voltage range for main operations: 160-286V

- Input voltage adjustable range for main operations: 151-302V

Batteries & Runtime:

- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

- Typical recharge time: 3 hour(s)

- Typical Backup Time at Half Load: 13.5 minutes (130 Watts)

- Typical Backup Time at Full Load: 5.5 minutes (260 Watts)

Communications & Management:

Interface Port(s): DB-9 RS-232

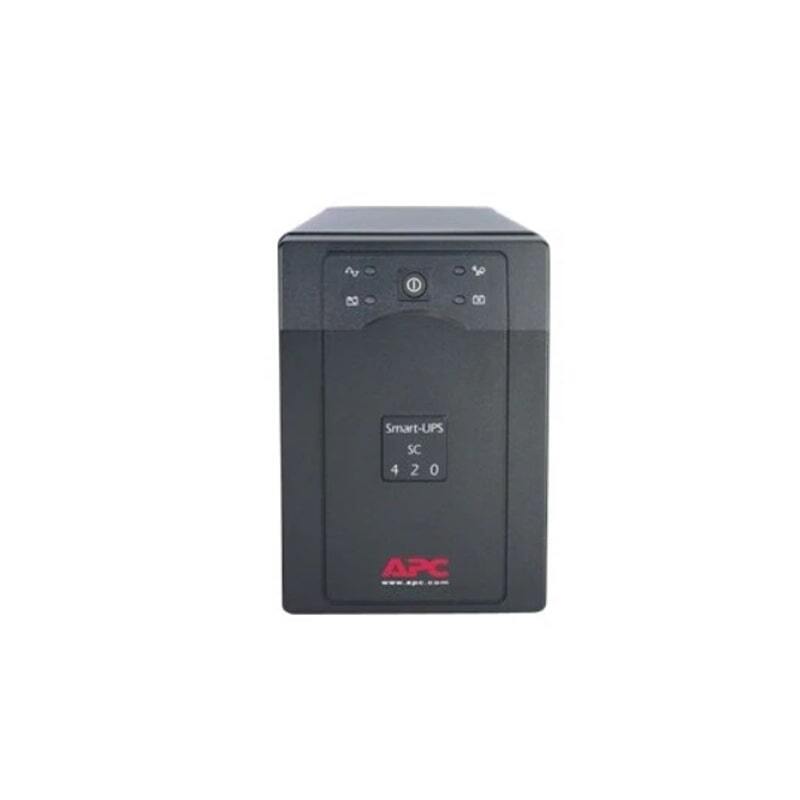

- Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators

- Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering:

- Surge energy rating: 320 Joules

- Filtering: Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449

- Dataline protection: RJ-45 Modem/Fax/DSL/10-100 Base-T protection

Physical:

- Maximum Height: 168.00 mm

- Maximum Width: 119.00 mm

- Maximum Depth: 368.00 mm

- Net Weight: 9.09 KG

Specifications
SKU UPAPCSC420I
Barcode # 731304222613
Brand APC
Shipping weight 10.2800kg
Shipping width 0.362m
Shipping height 0.420m
Shipping length 0.614m
Assembled length 5.140m
Assembled height 3.200m
Assembled width 2.620m

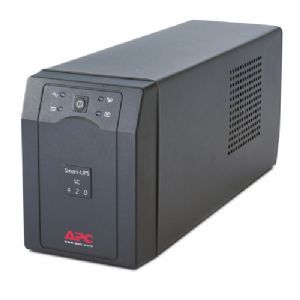

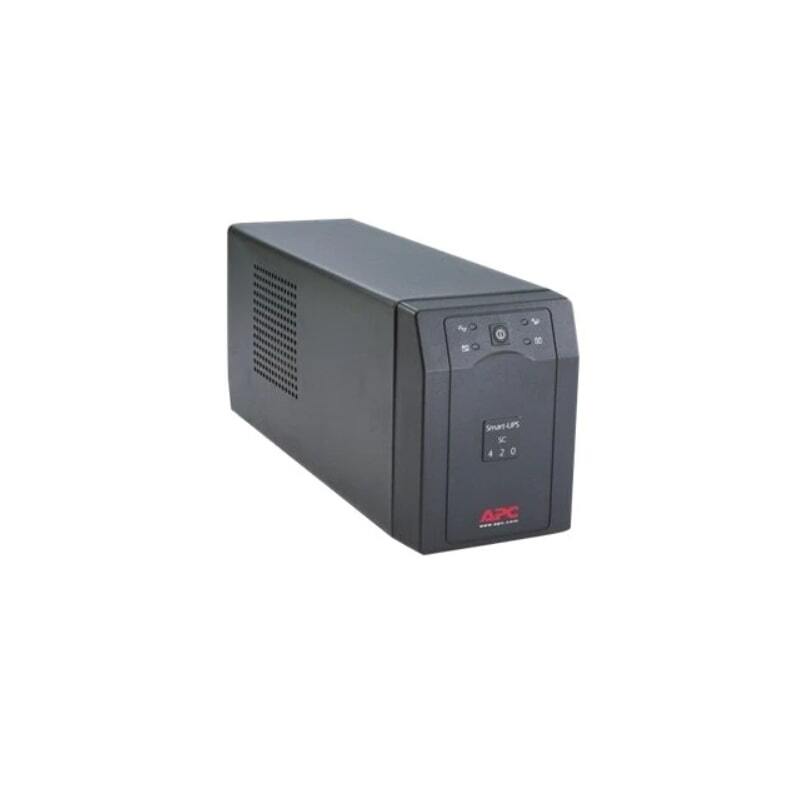

APC Smart-UPS 420VA 260W Line Interactive UPS Tower 230V 10A Input 4x IEC C13 Outlets Lead Acid Battery User Replaceable Battery

$284.20
RRP $373.99 save 24%

or 4 payments of $71.05 with Learn more

Sold Out

Product Information

SKU:

UPAPCSC420I

Brand:

APC

Barcode #:

731304222613

Shipping Weigth:

10.2800kg

Warranty:

24
