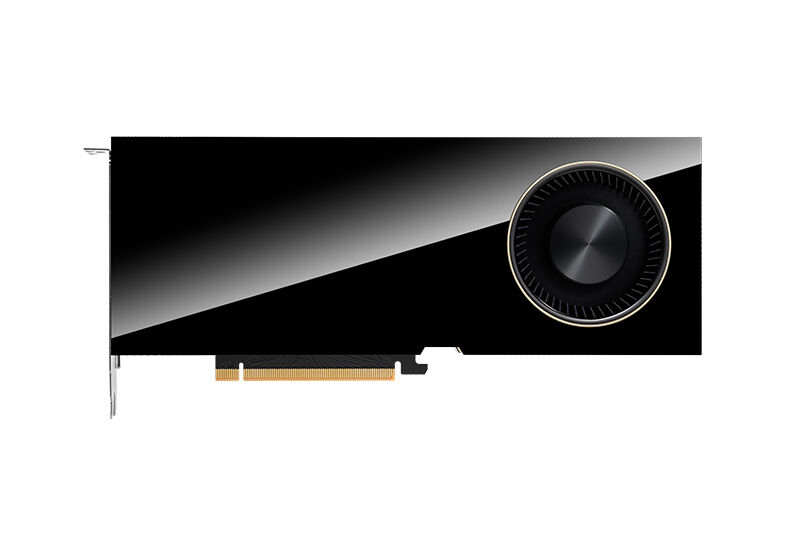

Leadtek nVidia Quadro RTX 5880 ADA Generation

- Ada Lovelace GPU architecture

- 48GB GDDR6 Memory with ECC

- Max. Power Consumption: 285W

- Graphics Bus: PCI-E 4.0 x16

- Thermal Solution: Active

- Display Connectors: DP 1.4a (4)

- Support NVIDIA vGPU software

- Compatible with Quadro Sync II

Overview

Performance for Endless Possibilities

The NVIDIA RTX„ 5880 Ada Generation delivers the features, capabilities, and performance to meet the challenges of todays professional workflows. Built on the NVIDIA Ada Lovelace GPU architecture, the RTX 5880 combines third-generation RT Cores, fourth-generation Tensor Cores, and next-gen CUDA cores with 48GB of graphics memory for unprecedented rendering, graphics, and compute performance. NVIDIA RTX 5880-powered workstations provide what you need to succeed in todays ultra-challenging business environment.

Specifications

GPU Architecture NVIDIA Ada Lovelace Architecture

CUDA Cores 14,080

NVIDIA Tensor Cores 440

NVIDIA RT Cores 110

Single-Precision Performance1 69.3 TFLOPS

RT Core Performance1 160.2 TFLOPS

Tensor Performance1 1108.4 TFLOPS2

Frame Buffer Memory 48 GB GDDR6 with ECC

Memory Interface 384-bit

Memory Bandwidth 960 GB s

Max Power Consumption 285W

Graphics Bus PCI Express 4.0 x16

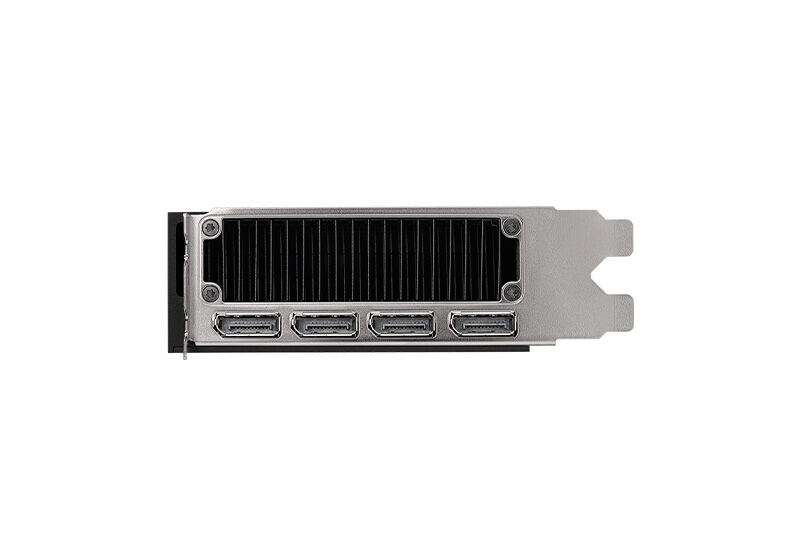

Display Connectors DP 1.4 (4)3

Form Factor 4.4 ft H x 10.5 ft L Dual Slot

Product Weight 1.180 kg

Thermal Solution Blower Active Fan

vGPU Software Support3 NVIDIA vPC vApps, NVIDIA RTX Virtual Workstation (vWS)

vGPU Profiles Supported 1GB, 2 GB, 3 GB, 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 24 GB

NVIDIA 3D Vision and 3D Vision Pro Support via 3 pin mini DIN

Frame Lock Compatible (with Quadro Sync II)

NVIDIA NVLink Not supported

Power Connector 1x 16-pin CEM5 PCIe

NVENC | NVDEC 3x | 3x (AV1 encode decode)
