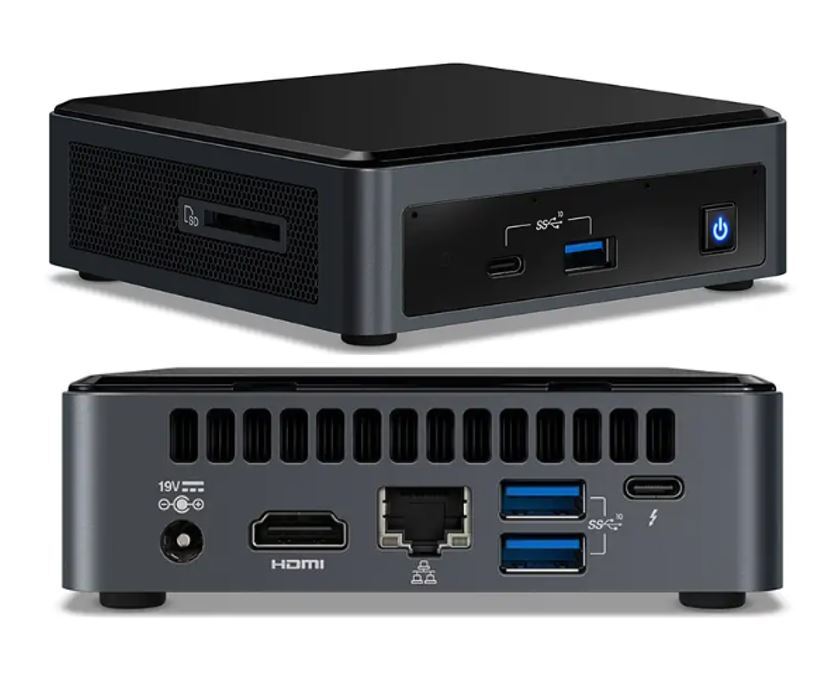

Intel NUC mini PC i5-10210U 4.2GHz 2xDDR4 SODIMM M.2 SATA/PCIe SSD HDMI USB-C (DP1.2) 3xDisplays GbE LAN WiFi BT no headphone jack

Essentials

Board Number NUC10i5FNB

Board Form Factor UCFF (4' x 4')

Socket Soldered-down BGA

Internal Drive Form Factor M.2 SSD

Number of Internal Drives Supported 1

Lithography 14 nm

TDP 25 W

DC Input Voltage Supported 19 VDC

Processor Included Intel Core„ i5-10210U Processor (6M Cache, up to 4.20 GHz)

Intel vPro„ Platform Eligibility No

Number of Cores 4

Number of Threads 8

Processor Base Frequency 1.60 GHz

Max Turbo Frequency 4.20 GHz

Warranty Period 3 yrs

Chassis Dimensions 117 x 112 x 51mm

Memory

Max Memory Size (dependent on memory type) 64 GB

Memory Types DDR4-2666 1.2V SO-DIMM

Max # of Memory Channels 2

Max Memory Bandwidth 42.6 GB/s

Max # of DIMMs 2

ECC Memory Supported No

Processor Graphics

Processor Graphics Intel UHD Graphics

Integrated Graphics Yes

Graphics Output HDMI 2.0a; USB-C (DP1.2)

Number of Displays Supported 3

Expansion Options

PCI Express Revision Gen3

PCI Express Configurations M.2 slot with PCIe X4 lanes

Removable Memory Card Slot SDXC with UHS-II support

M.2 Card Slot (storage) 22x42/80

I/O Specifications

Number of USB Ports 7

USB Configuration 2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via internal headers

USB Revision 2.0, 3.1 Gen2

USB 2.0 Configuration (External + Internal) 0 + 2

USB 3.0 Configuration (External + Internal) 2B 2F + 0

Total # of SATA Ports 2

Max # of SATA 6.0 Gb/s Ports 2

Audio (back channel + front channel) 7.1 digital (HDMI mDP); L+R mic (F)

Integrated LAN Intel Ethernet Connection I219-V

Integrated Wireless Intel Wi-Fi 6 AX201

Integrated Bluetooth Yes

Consumer Infrared Rx Sensor Yes

Number of Thunderbolt„ 3 Ports 1

Advanced Technologies

Intel Optane„ Memory Supported Yes

Intel Virtualization Technology for Directed I/O (VT-d) Yes

No headphone jack
