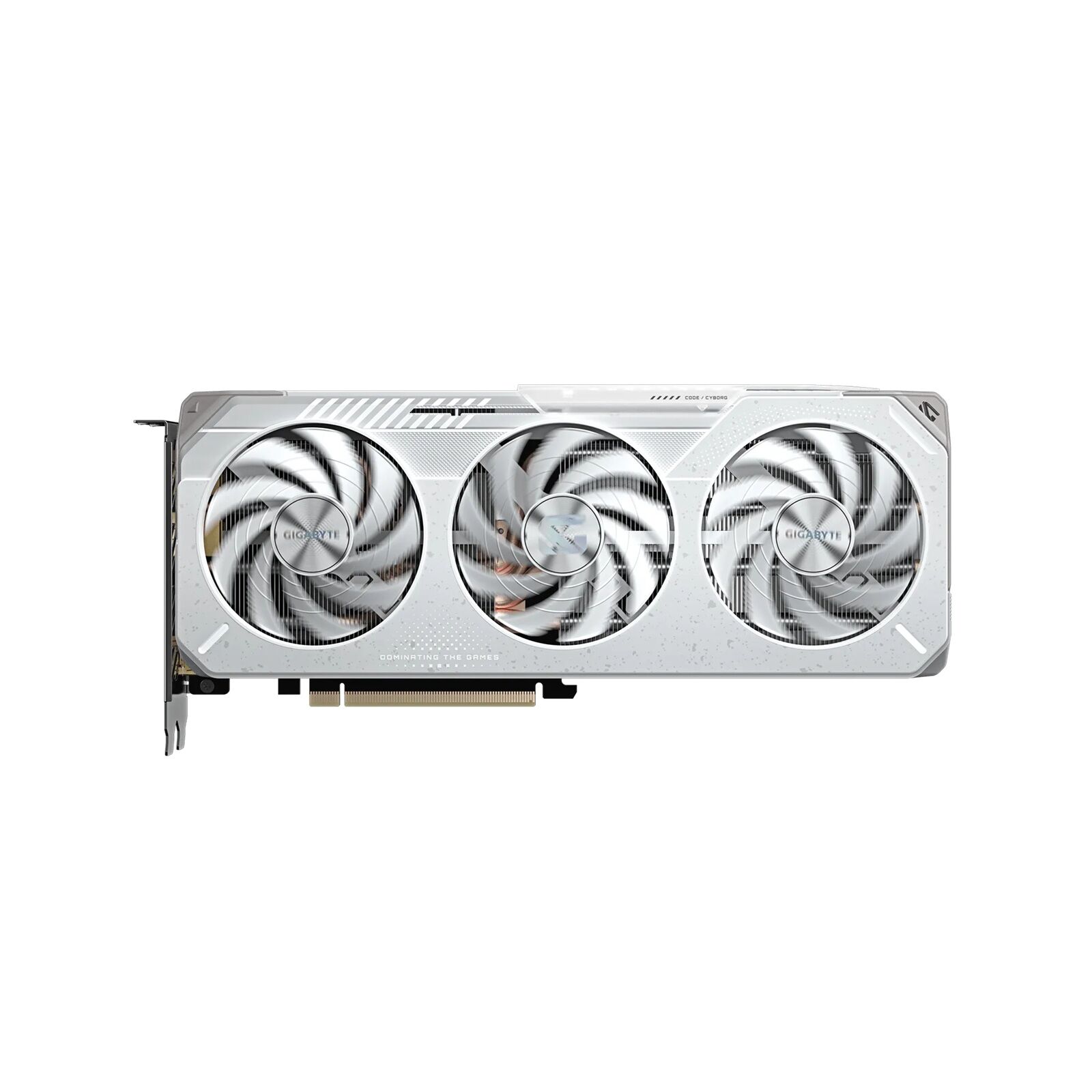

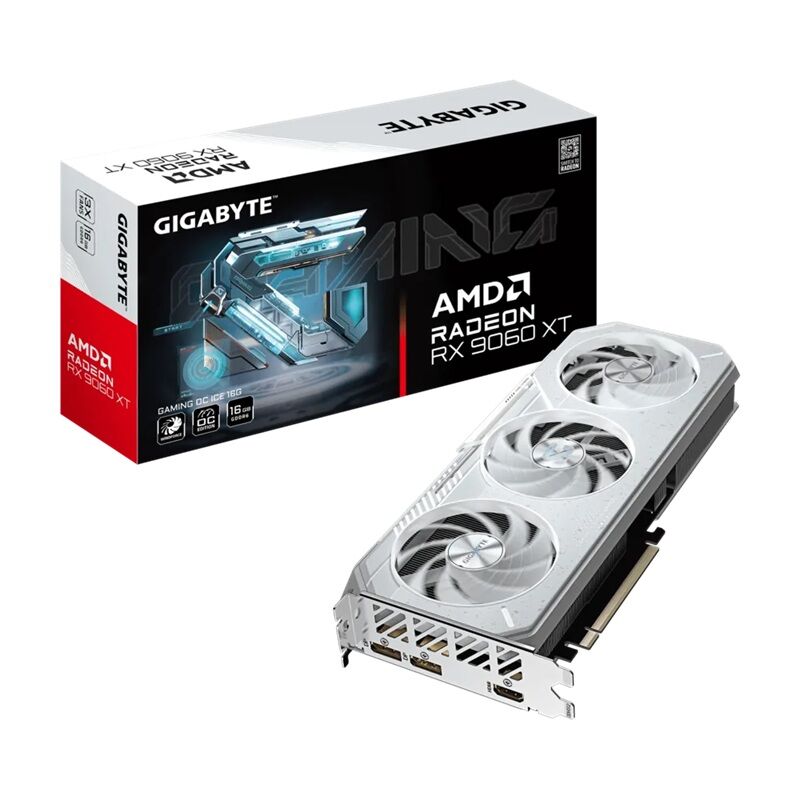

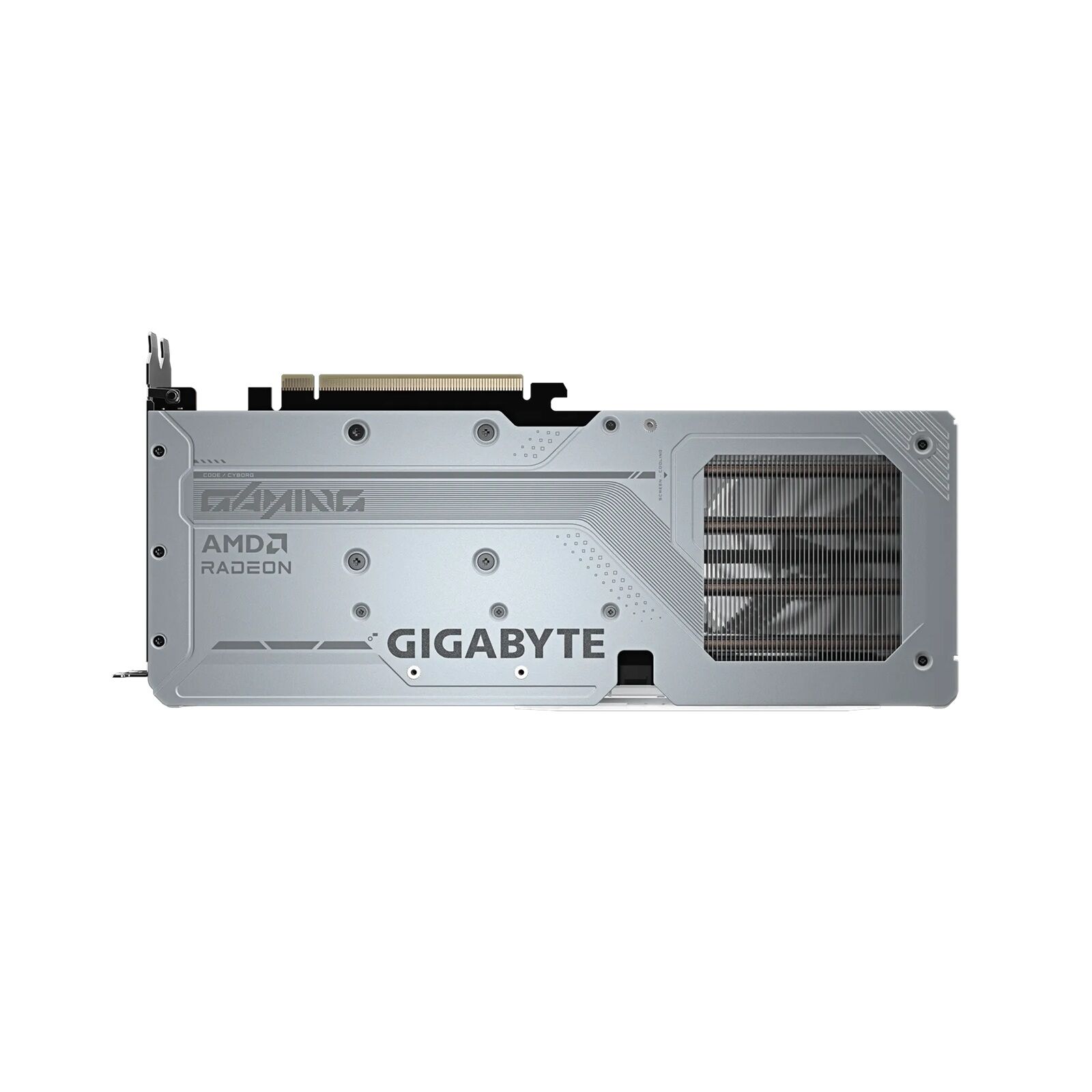

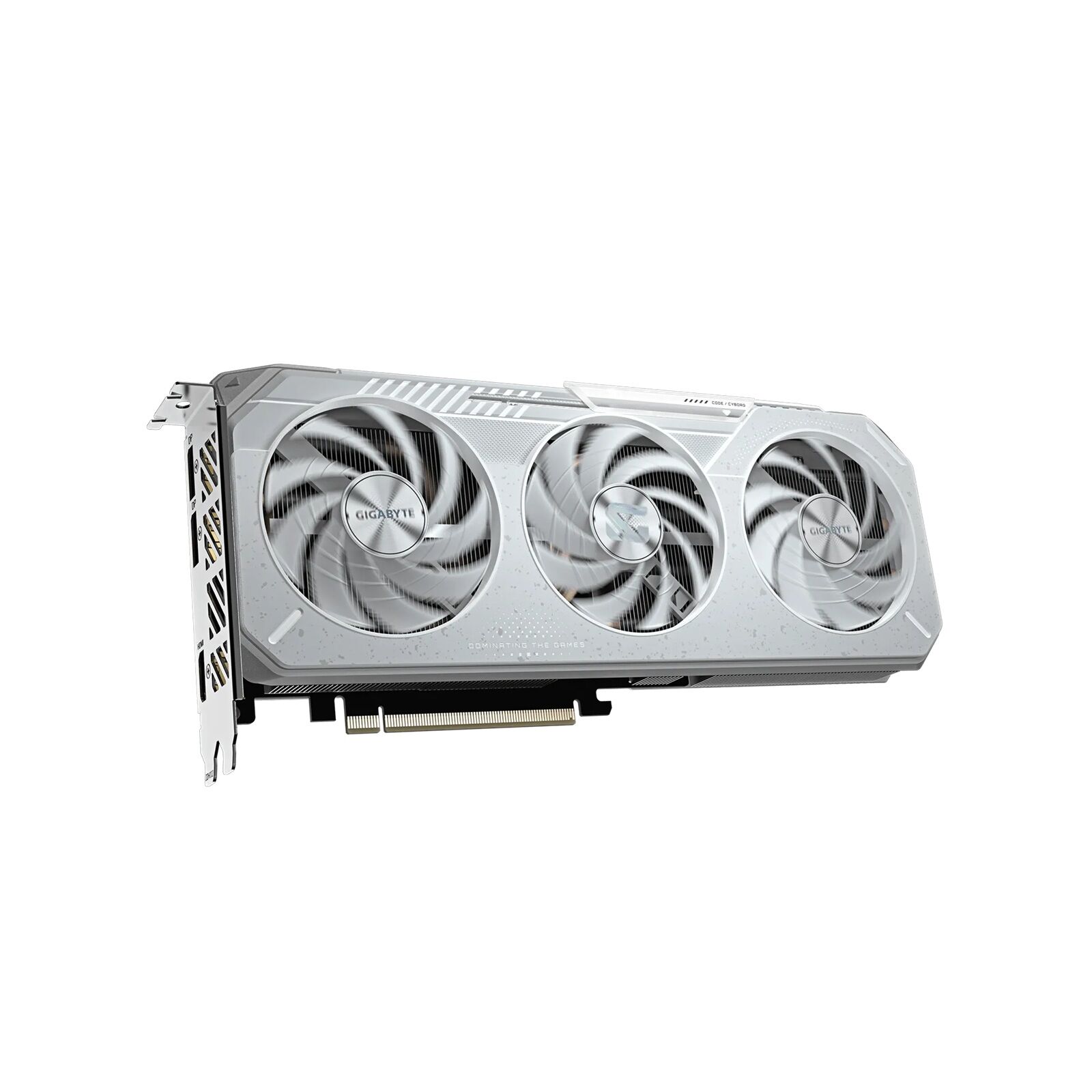

Gigabyte Radeon RX 9060 XT GAMING OC ICE 16G, GDDR6, 3320MHz boost, 2780MHz, 2048 cores, PCIe 5.0, 281mm, 450W, 2x DP 2.1a, HDMI 2.1b

SPECIFICATION

Graphics Processing Radeon RX 9060 XT

Core Clock Boost Clock : up to 3320 MHz (Reference card: 3130 MHz)

Game Clock : up to 2780 MHz (Reference card: 2530 MHz)

Stream Processors 2048

Memory Clock 20 Gbps

Memory Size 16GB

Memory Type GDDR6

Memory Bus 128 bit

Card Bus PCI-E 5.0

Digital max resolution 7680 x 4320

Multi-view 3

Card size L=281 W=118 H=40 mm

PCB Form ATX

DirectX DirectX 12 API

OpenGL OpenGL 4.6

Recommended PSU 450W

Power Connectors 8 pin1

Output DisplayPort 2.1a x2

HDMI 2.1b x1

Accessories VGA manual

Note

œBoost Clock ft is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151

œGame Clock ft is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
