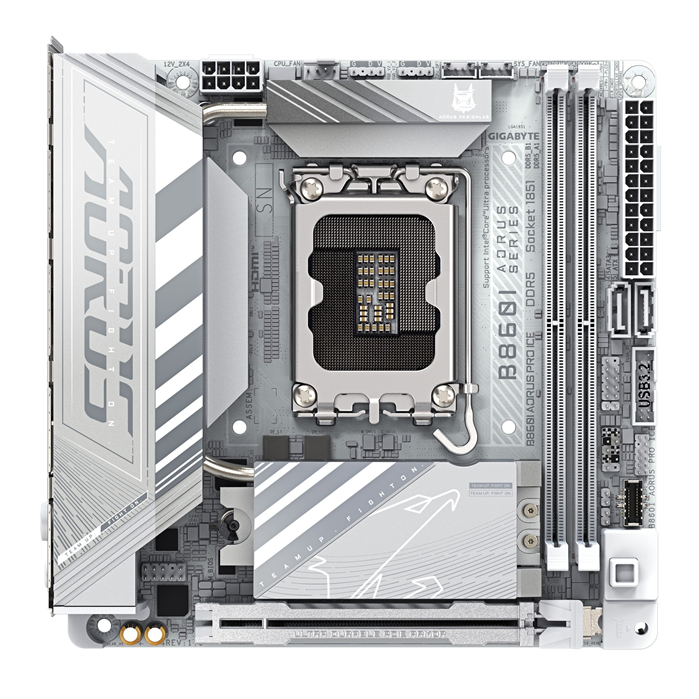

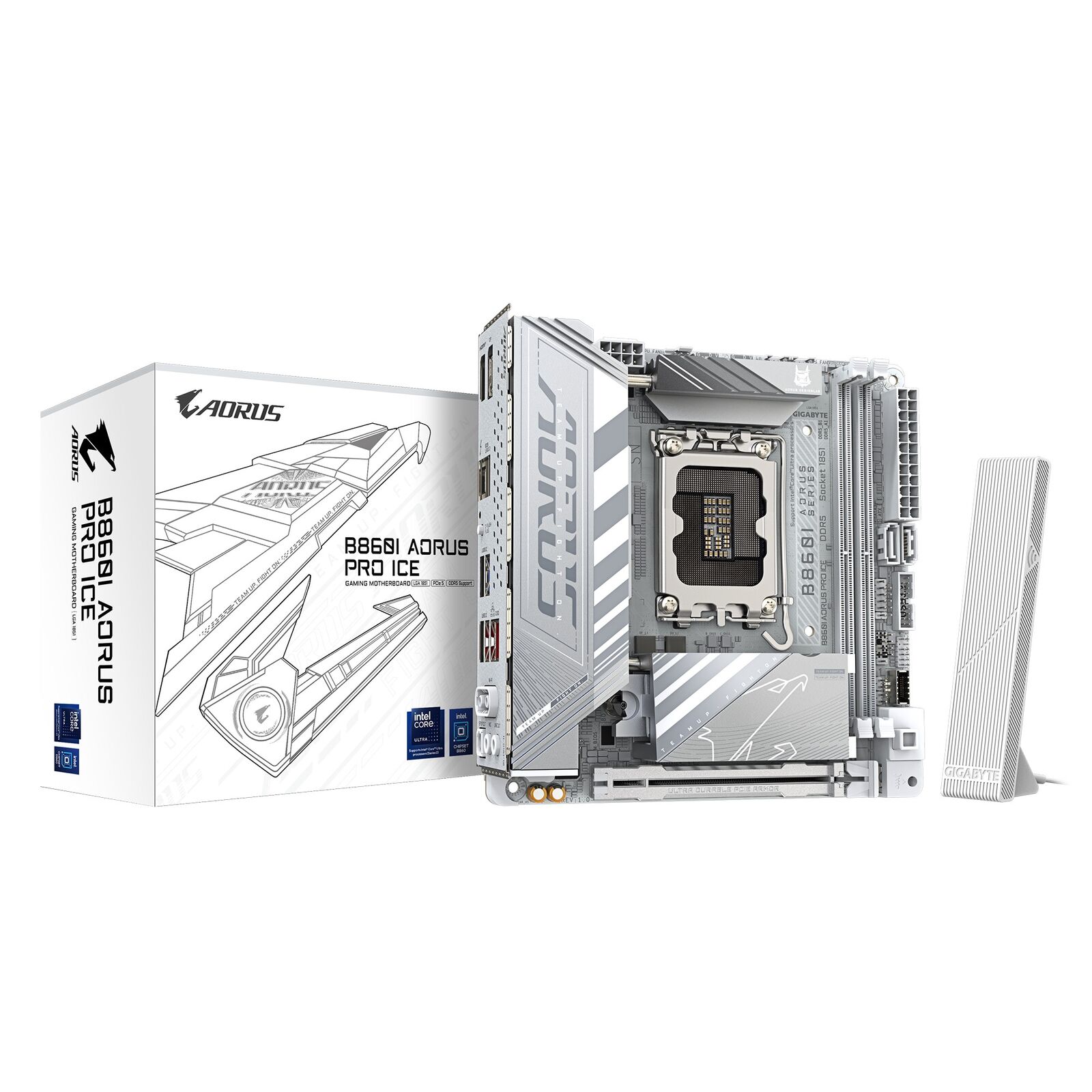

Gigabyte M B B860I AORUS PRO ICE 1.0, Intel B860, 4 x DDR5 up to 128 GB, 1x HDMI, 1 x PCI Express x16, 2 x M.2, 2 x SATA, 8x USB 3.2

CPU

LGA1851 socket: Support for Intel Core„ Ultra Processors

(Go to GIGABYTE fts website for the latest CPU support list.)

L3 cache varies with CPU

Chipset

Intel B860 Express Chipset

Memory

Support for DDR5 9200(O.C) 8800(O.C) 8600(O.C) 8400(O.C) 8266(O.C) 8200(O.C) 8000(O.C) 7950(O.C) 7900(O.C) 7800(O.C) 7600(O.C.) 7400(O.C.) 7200(O.C.) 7000(O.C.) 6800(O.C.) 6600(O.C.) 6400 5600 MT s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8 2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8 2Rx8 1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to ftMemory Support List ft on GIGABYTE fts website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

- 1 x Intel Thunderbolt„ 4 connector (USB4 USB Type-C port),supporting DisplayPort and Thunderbolt„ video outputs When a Thunderbolt„ monitor is installed, the maximum resolutionsupported is 5120x2880 60 Hz with 24 bpp (single display output).When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160 240 Hz (single display output).

Because of the limited I O resources of the PC architecture, the number of Thunderbolt„ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, ftBack Panel Connectors, ft for more information.)

Support for DisplayPort 2.1 version and HDCP 2.3

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160 144 Hz

Support for DisplayPort 2.1 version and HDCP 2.3

- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

Support for HDMI 2.1 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Support for up to triple-display at the same time

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps 1 Gbps 100 Mbps)

Wireless Communication module

Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.0)

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4 x2 SSD support)(M2A_CPU)

Chipset:

- 1 x M.2 connector on the back of the motherboard (Socket 3, M key,type 2280 PCIe 4.0 x4 x2 SSD support) (M2Q_SB)

- 2 x SATA 6Gb s connectors

RAID 0 and RAID 1 support for SATA storage devices

USB

CPU:

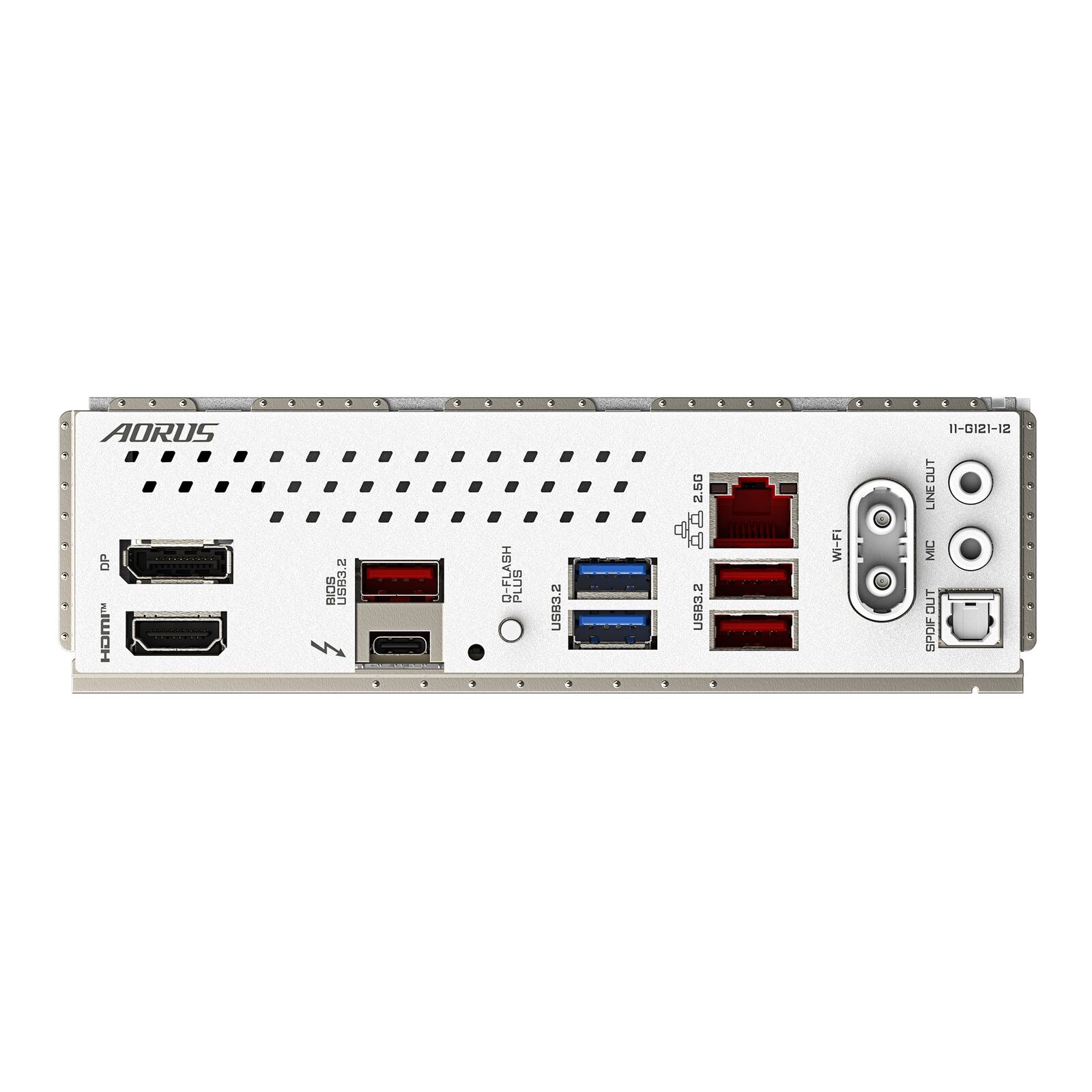

- 1 x USB4 USB Type-C port on the back panel

Chipset:

- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 2 x USB 2.0 1.1 ports available through the internal USB header

ChipsetUSB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
