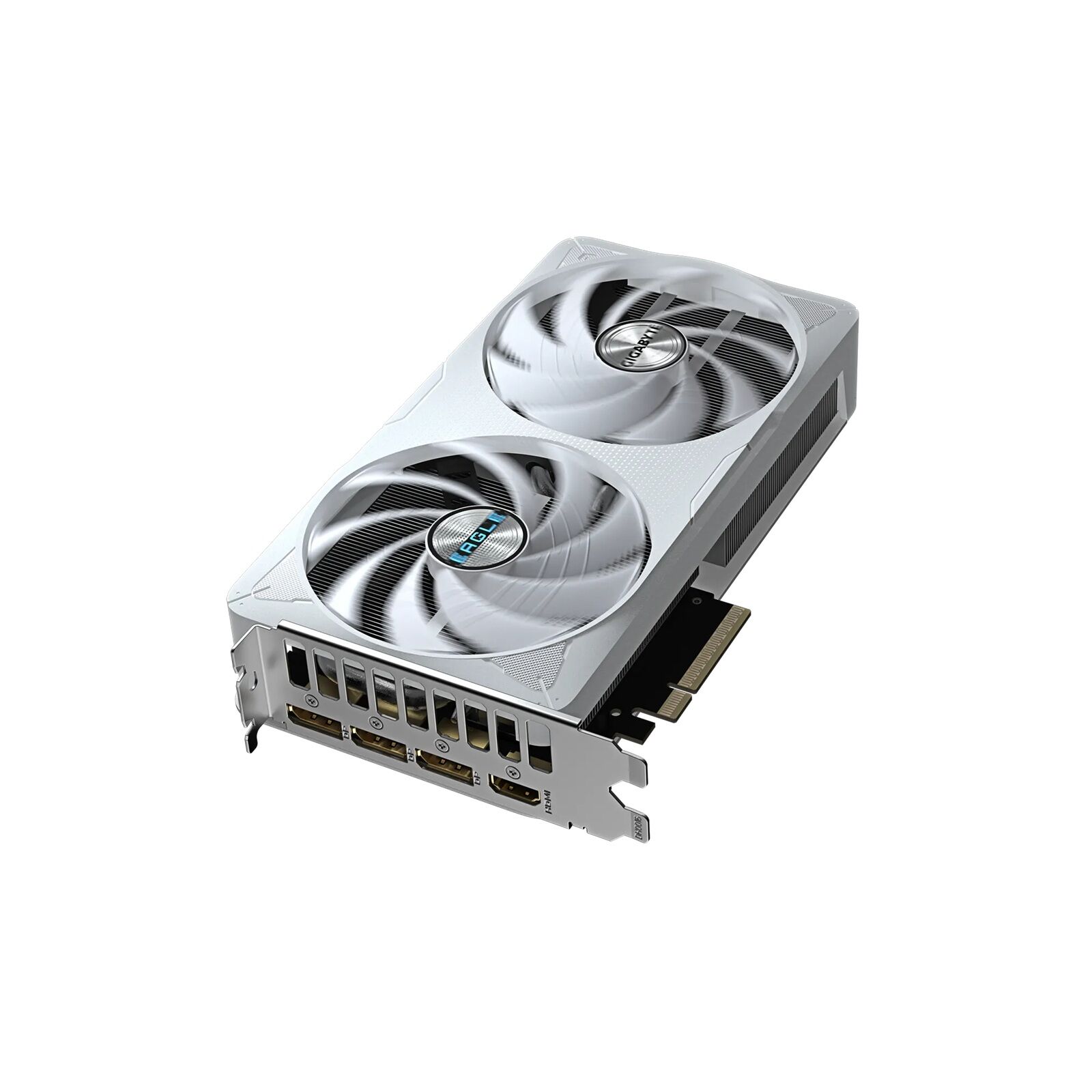

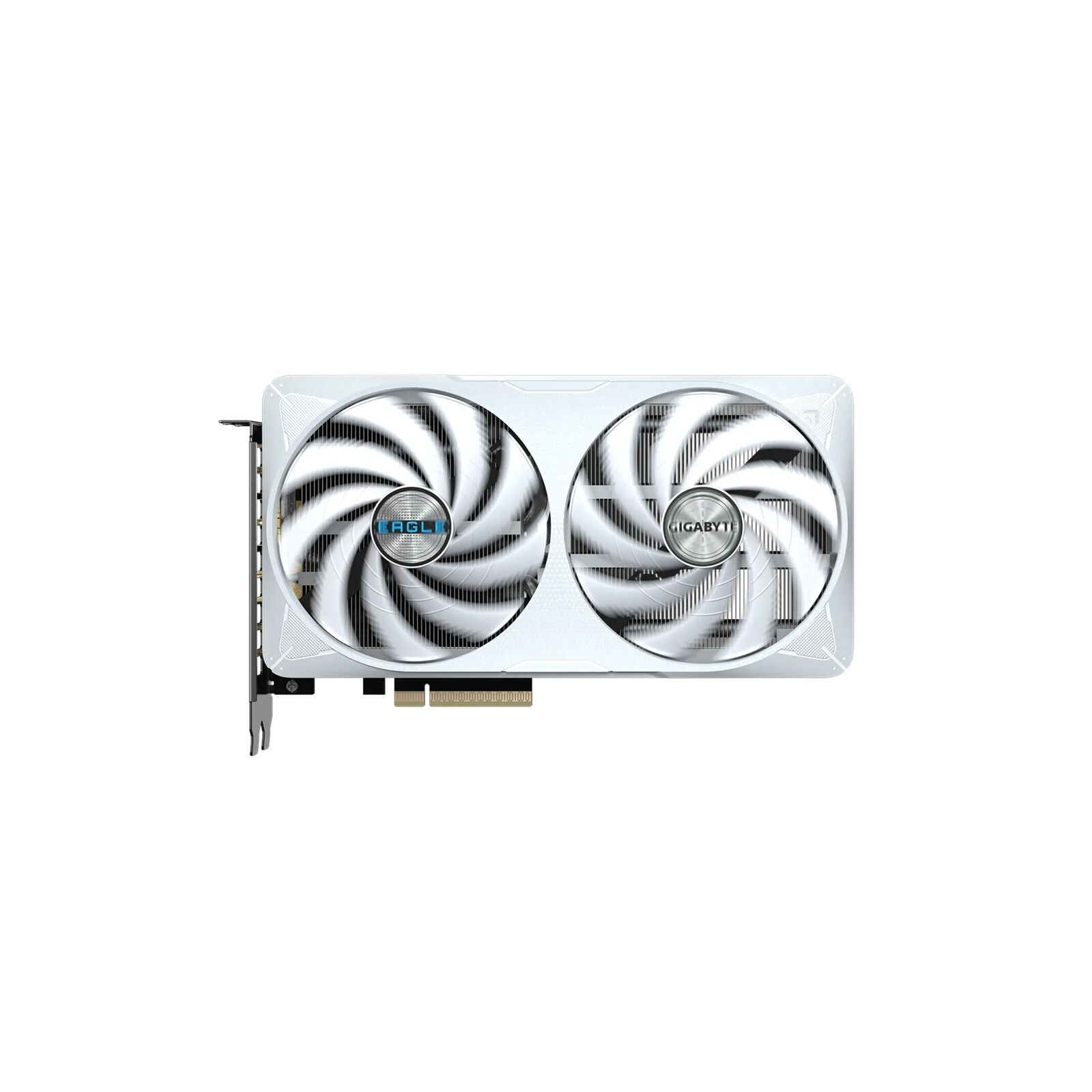

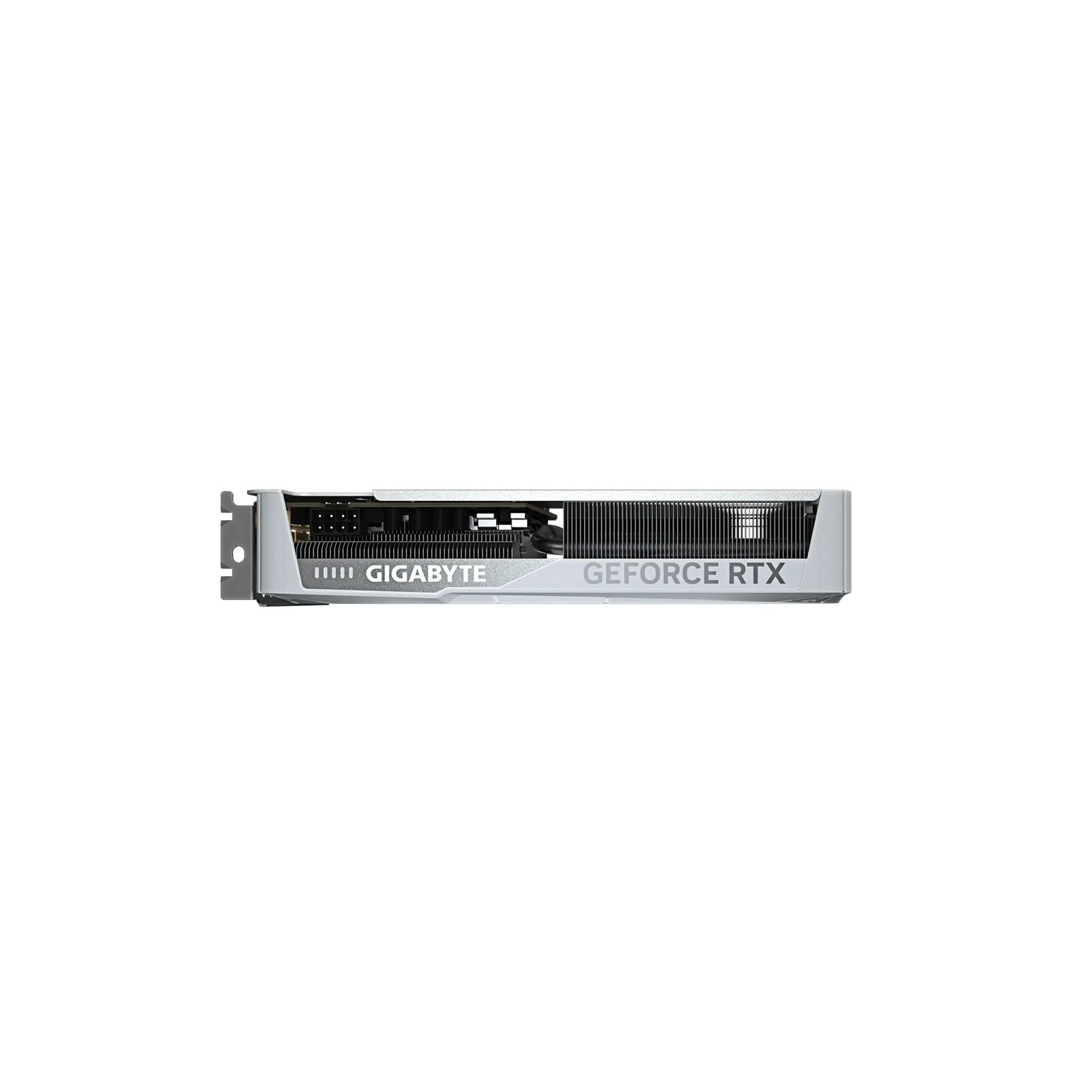

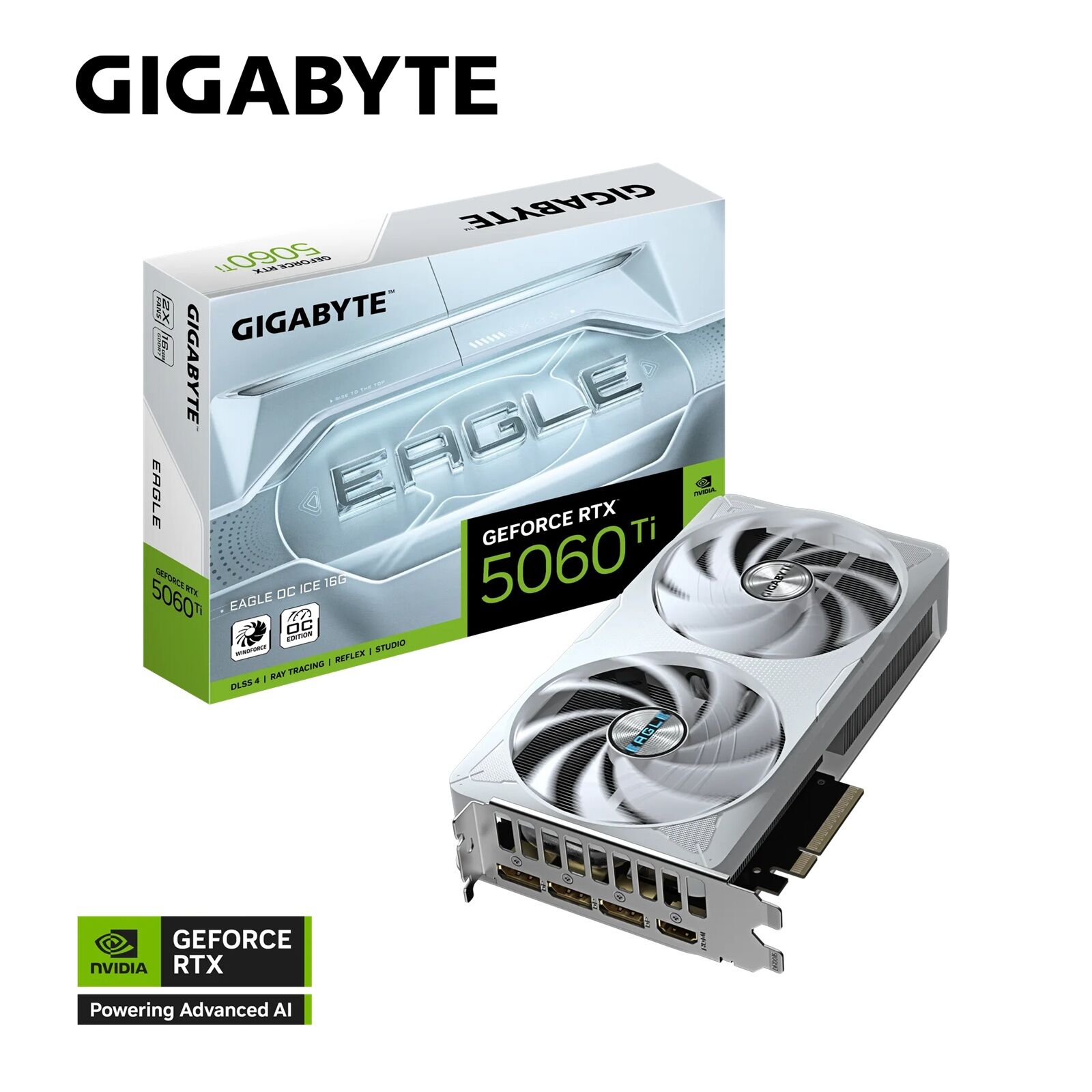

Gigabyte GeForce RTX„ 5060 Ti EAGLE OC ICE 16G, 2617 MHz, CUDA 4608, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b 3 HDMI 2.1b 1

SPECIFICATION

Graphics Processing

GeForce RTX„ 5060 Ti

Core Clock

2617 MHz (Reference card :2572 MHz)

CUDA Cores

4608

Memory Clock

28 Gbps

Memory Size

16 GB

Memory Type

GDDR7

Memory Bus

128 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=215 W=122 H=40 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

650W

Power Connectors

8 Pin1

Output

DisplayPort 2.1b 3

HDMI 2.1b 1

Accessories

Quick guide

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX„ 5060 Ti

Integrated with 16GB GDDR7 128bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade Thermal conductive gel

Reinforced structure

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

WINDFORCE

COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.

SIGNATURE IDENTITY

The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EAGLE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.

EXCELLENCE IN ESSENTIAL

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I O bracket, provides exceptional structural integrity.
