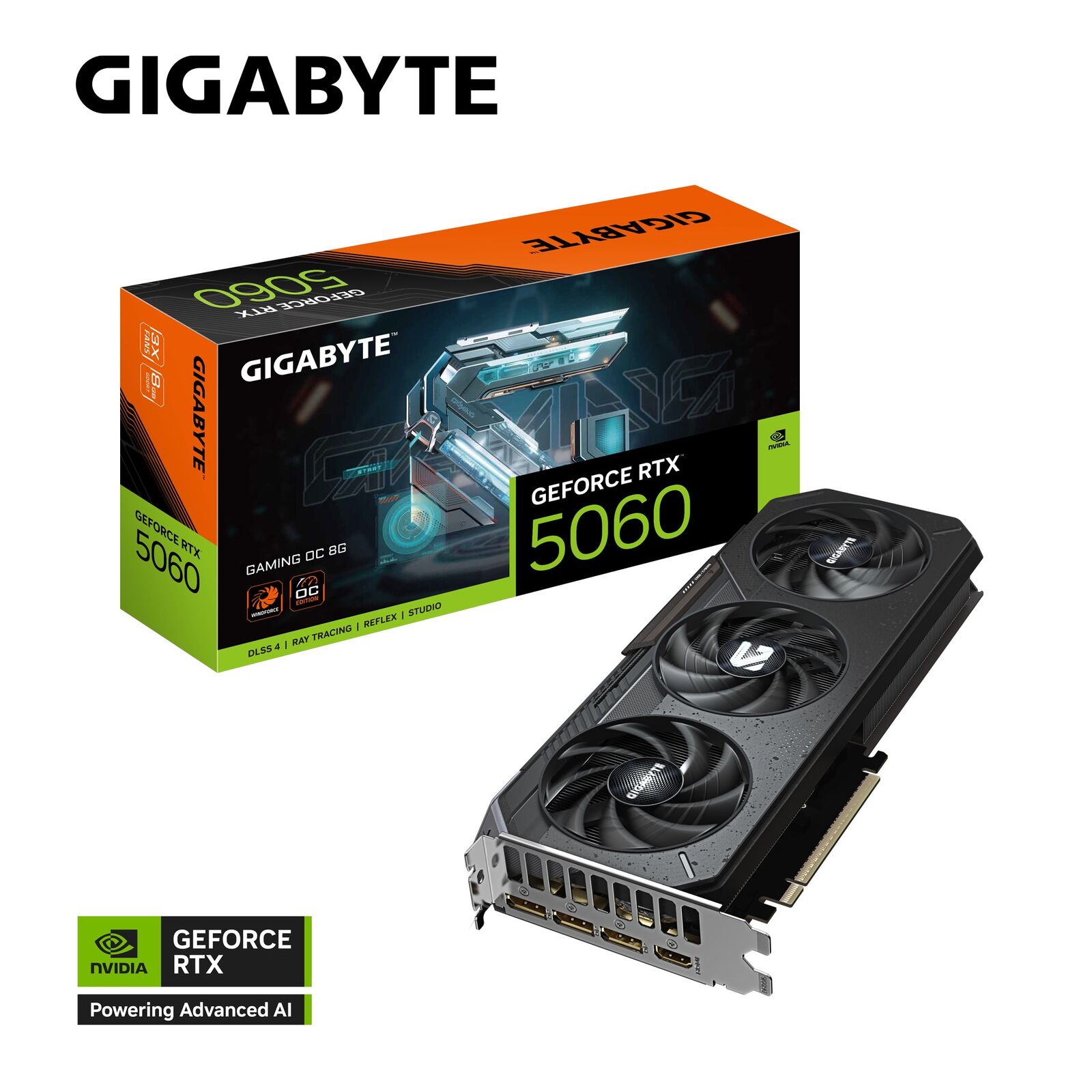

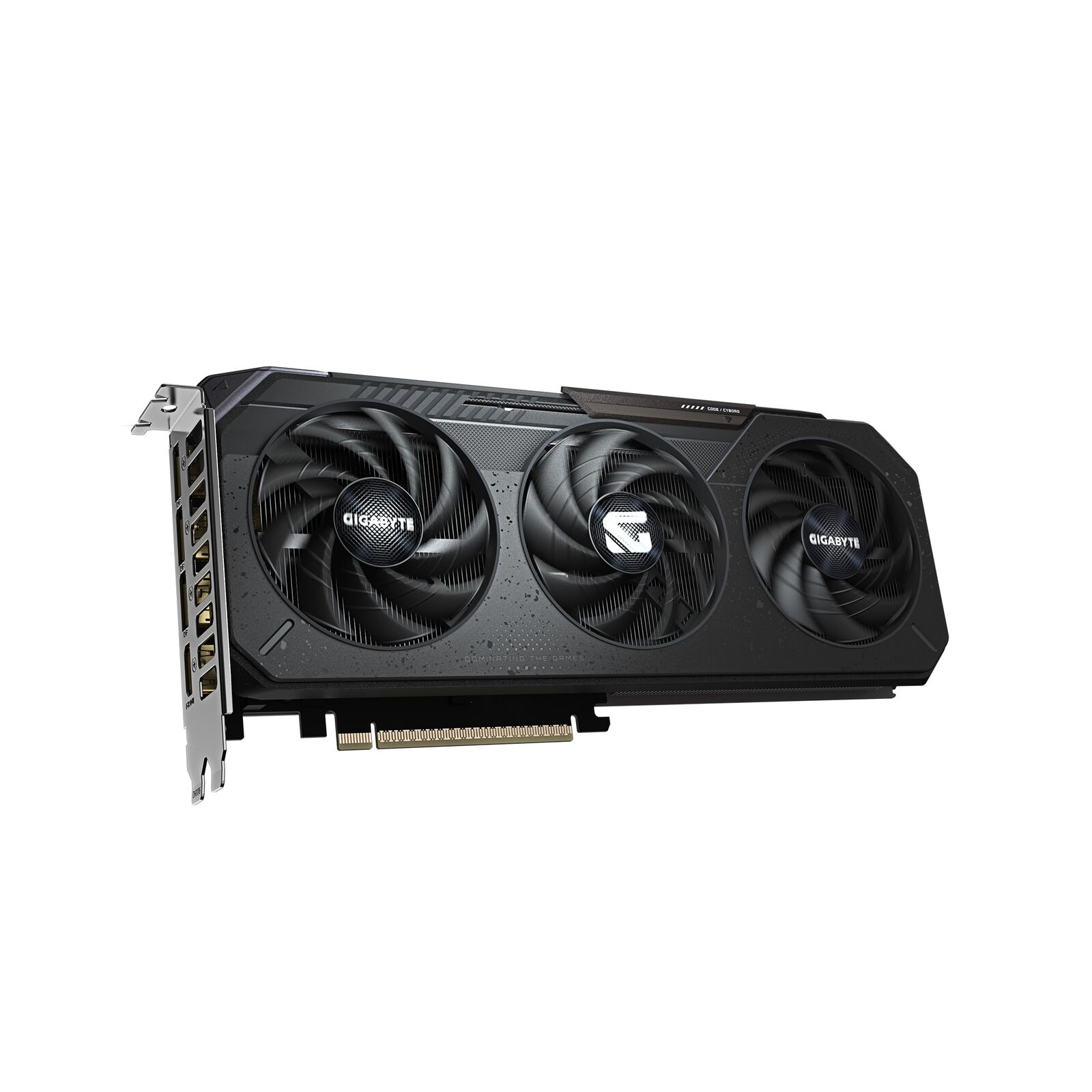

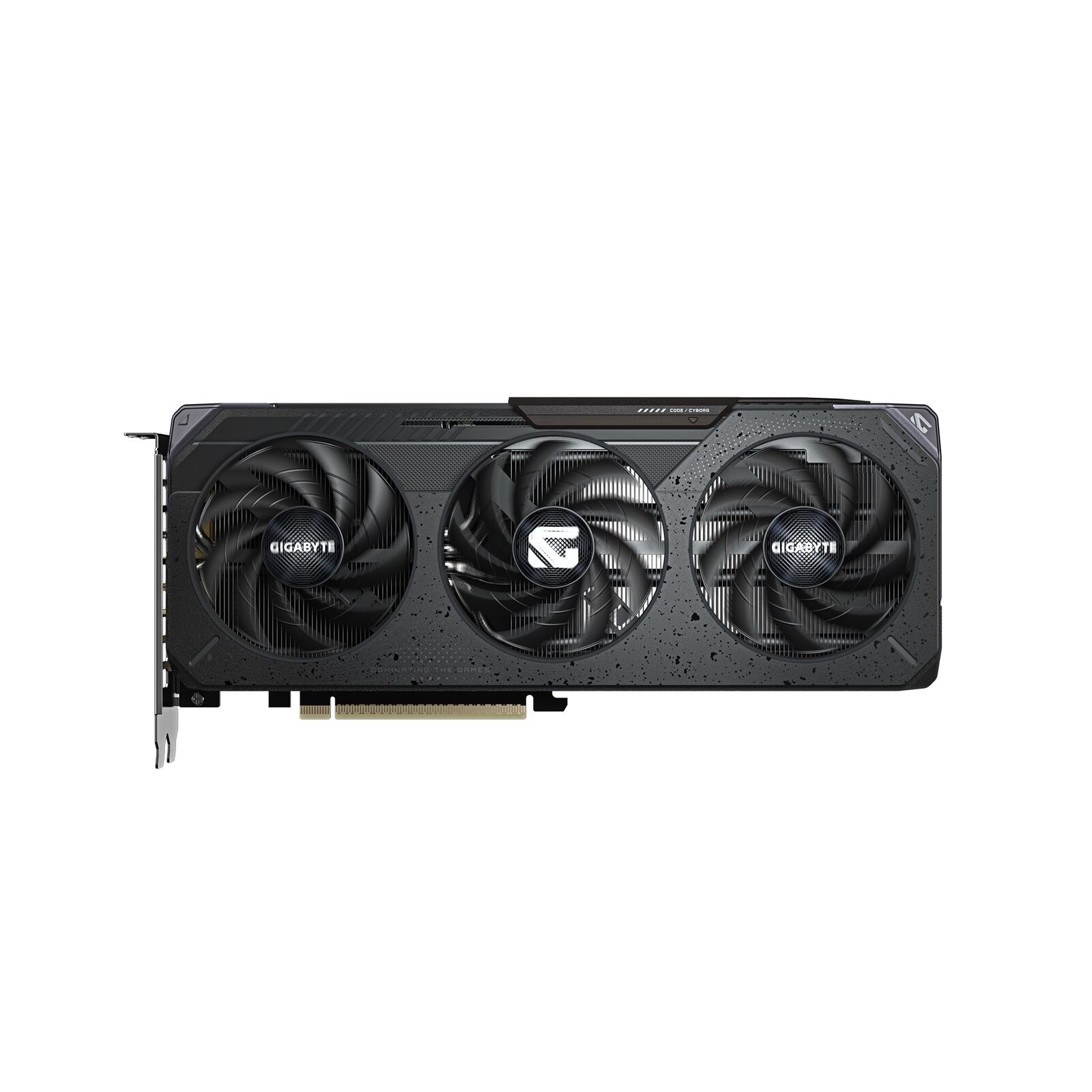

Gigabyte GeForce RTX„ 5060 GAMING OC 8G, 2595 MHz, CUDA 3840, 28 Gbps. GDDR7, 128 bit PCI-E 5.0, PSU 500W, DisplayPort 2.1b 3 HDMI 2.1b x1

SPECIFICATION

Graphics Processing

GeForce RTX„ 5060

Core Clock

2595 MHz (Reference card : 2497MHz)

CUDA Cores

3840

Memory Clock

28 Gbps

Memory Size

8 GB

Memory Type

GDDR7

Memory Bus

128 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=281 W=119 H=40

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

500W

Power Connectors

8 Pin1

Output

DisplayPort 2.1b 3

HDMI 2.1b 1

Accessories

Quick guide

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX„ 5060

Integrated with 8GB GDDR7 128bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade Thermal conductive gel

RGB lighting

Dual BIOS (Performance Silent)

Reinforced structure

The Ultimate Platform for

Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

WINDFORCE

COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

MULTI-LAYERED VISUAL

Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.

UNIQUE TEXTURE

Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.

RGB LIGHTING

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

SLIDING SIDE PLATE

Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

REINFORCED STRUCTURE

The reinforced metal backplate, securely fastened to the I O bracket, provides exceptional structural integrity.
