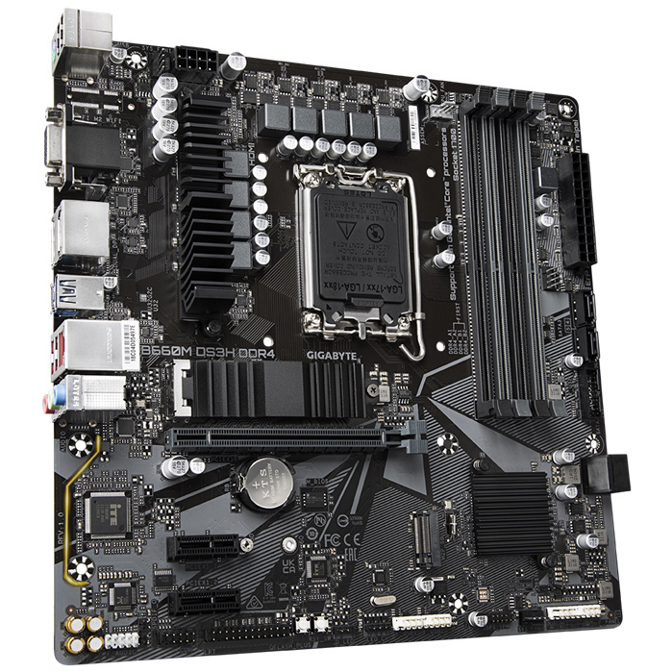

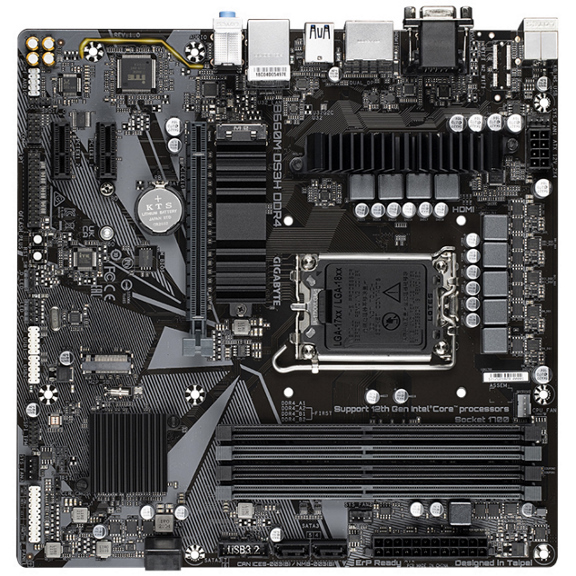

Gigabyte B660M DS3H DDR4 Intel LGA 1700 mATX Motherboard, 4x DDR4 ~128GB, 1x PCI-E x16, 2x PCI-E x1, 2x M.2, 4x SATA, 1x USB-C, 3x USB 3.2, 2x USB 2.0

Intel B660 Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, Rear USB 3.2 Gen 2 Type-C, RGB FUSION 2.0, Q-Flash Plus‹‹‹

Supports 12th Gen Intel Core„ Series Processors‹‹

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

6+2+1 Phases Hybrid Digital VRM with MOS Heatsink‹

Fast 2.5 GbE LAN with Bandwidth Management‹‹

Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard

Rear SuperSpeed USB 3.2 Gen 2 TYPE-C for Fast and Versatile Connections ‹‹

High Quality Audio Capacitors and Audio Noise Guard‹

RGB FUSION 2.0 supports Addressable LED & RGB LED Strips‹‹

Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP‹‹

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card‹‹

CPU

LGA1700 socket: Support for 12th Generation Intel Core„ i9 processors/Intel Core„ i7 processors/Intel Core„ i5 processors

L3 cache varies with CPU

(Please refer to 'CPU Support List' for more information.)

Chipset

Intel B660 Express Chipset

Memory

Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1
