Description

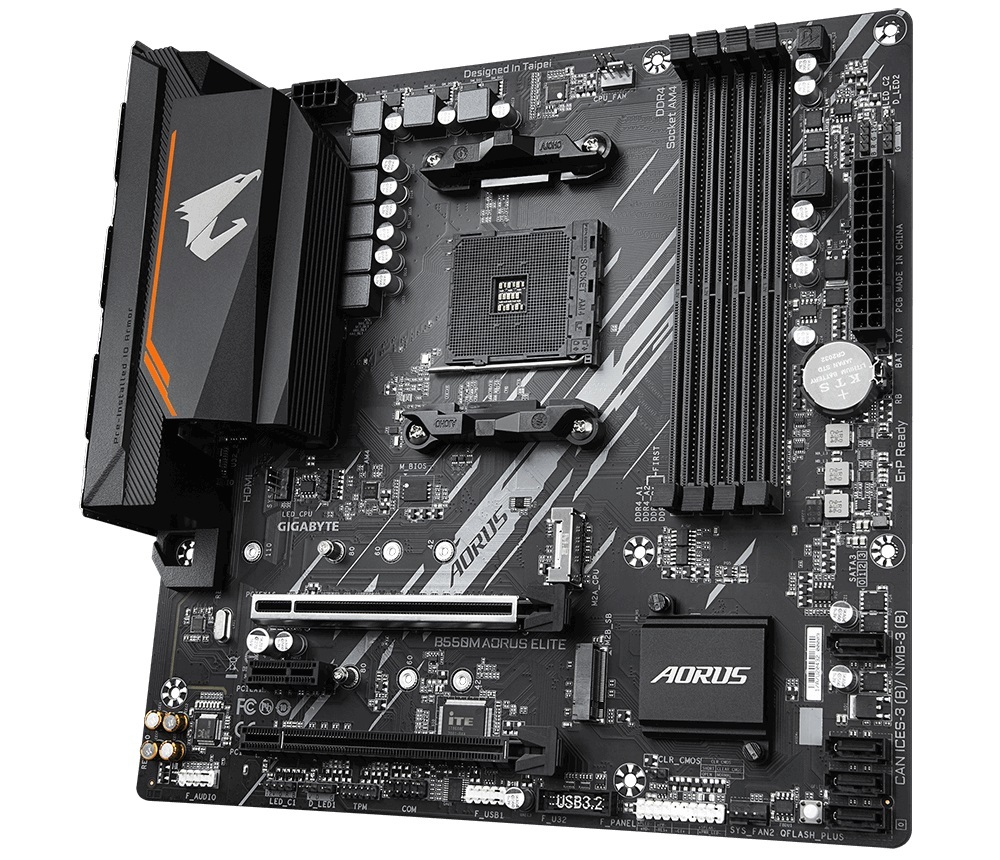

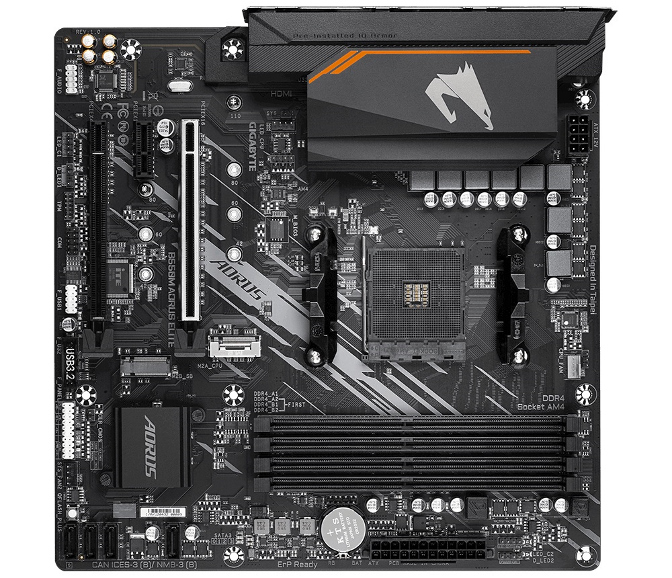

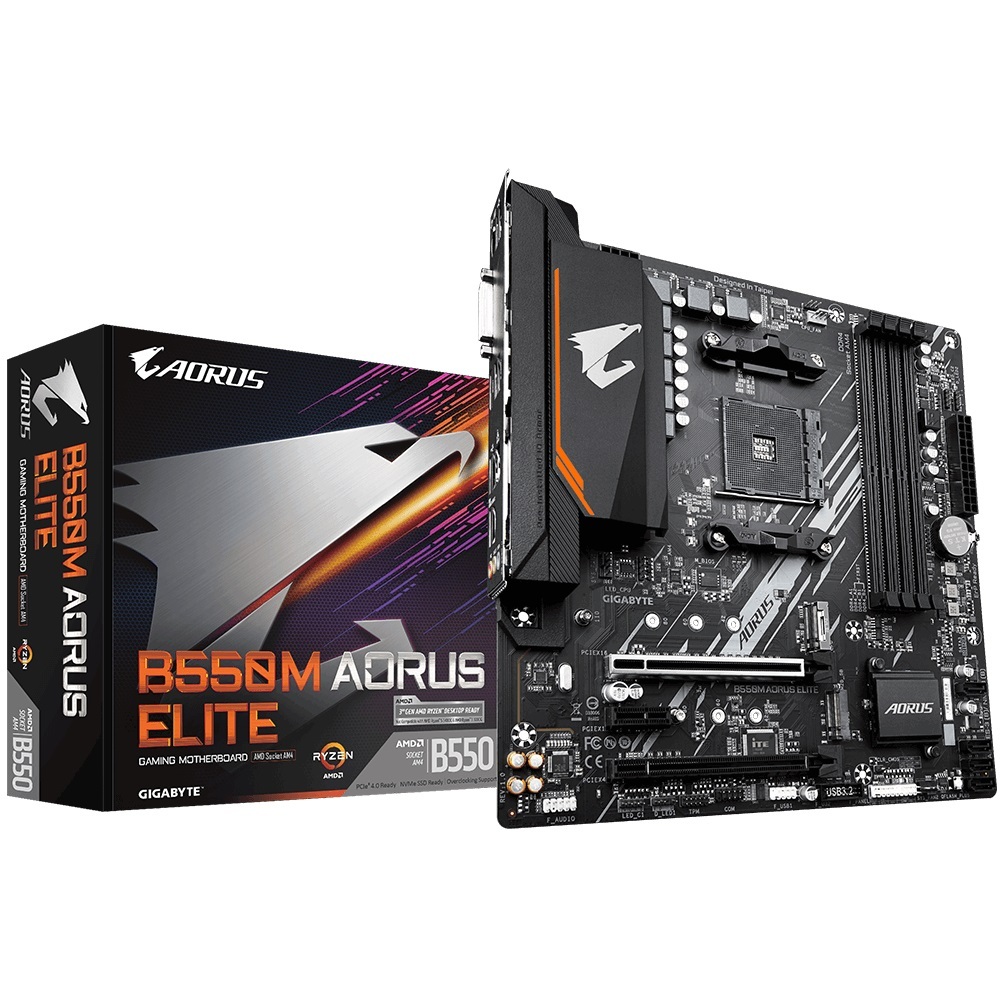

Gigabyte B550M AORUS ELITE AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GIGABYTE 8118 Gaming LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus


Supports 3rd Gen AMD Ryzen„ Processors

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

Ultra Durable„ PCIe 4.0 Ready x16 Slot

Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors

High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality

GIGABYTE Exclusive 8118 Gaming GbE LAN

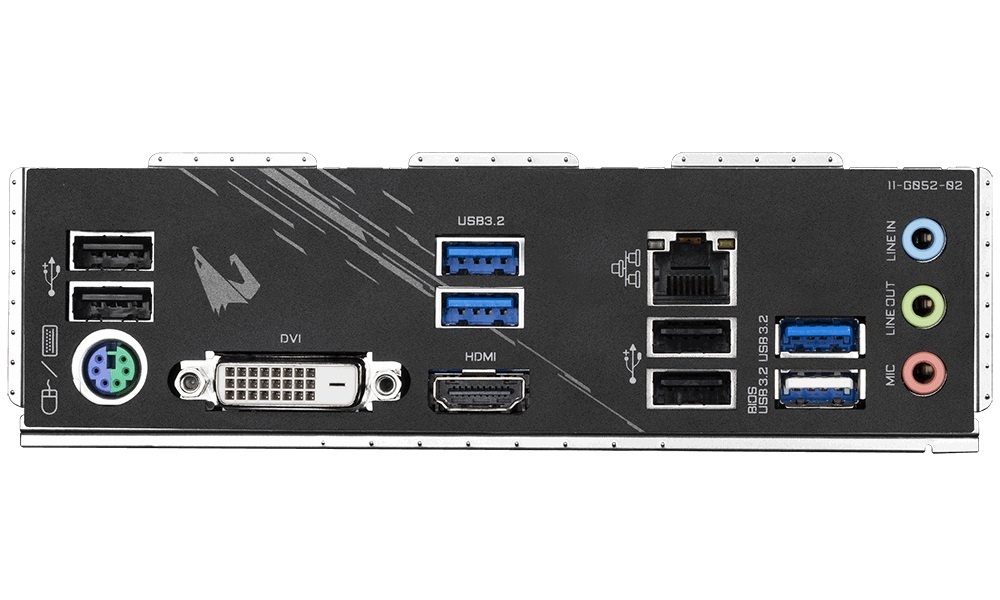

Rear HDMI & DVI Support

RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Anti-Sulfur Resistors Design


CPU

AMD Socket AM4, support for: 3rd Generation AMD Ryzen„ processors/ 3rd Generation AMD Ryzen„ with Radeon„ Graphics processors


Memory

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

3rd Gen AMD Ryzen„ Processors:

Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

New Generation AMD Ryzen„ with Radeon„ Graphics processors:

Support for DDR4

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules


Onboard Graphics

Integrated in the 3rd Generation AMD Ryzen„ with Radeon„ Graphics processors:

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Specifications
SKU MBG-B550MAORUSELITE
Barcode # 4719331809546
Brand Gigabyte
Shipping weight 1.7200kg
Shipping width 0.372m
Shipping height 0.170m
Shipping length 0.376m
Assembled length 2.760m
Assembled height 0.700m
Assembled width 2.720m

Gigabyte B550M AORUS ELITE AMD Ryzen M-ATX Motherboard 4xDDR4 4xSATA 2xM.2 LAN RAID HDMI DVI-D 2xPCIEx16 4xUSB3.2 6xUSB2.0

$232.00
RRP $239.80 save 3%

or 4 payments of $58.00 with Learn more

Only 1 Left!

Product Information

SKU:

MBG-B550MAORUSELITE

Brand:

Gigabyte

Barcode #:

4719331809546

Shipping Weigth:

1.7200kg

Warranty:

36
