Description

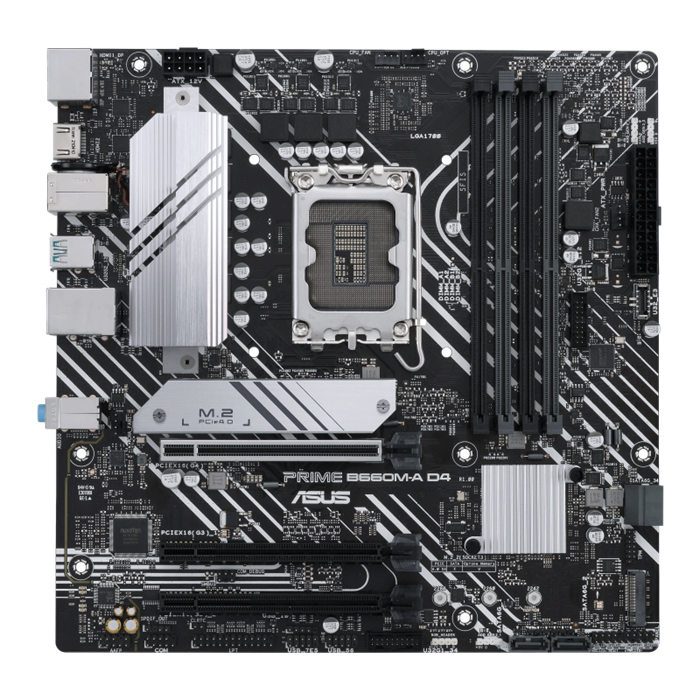

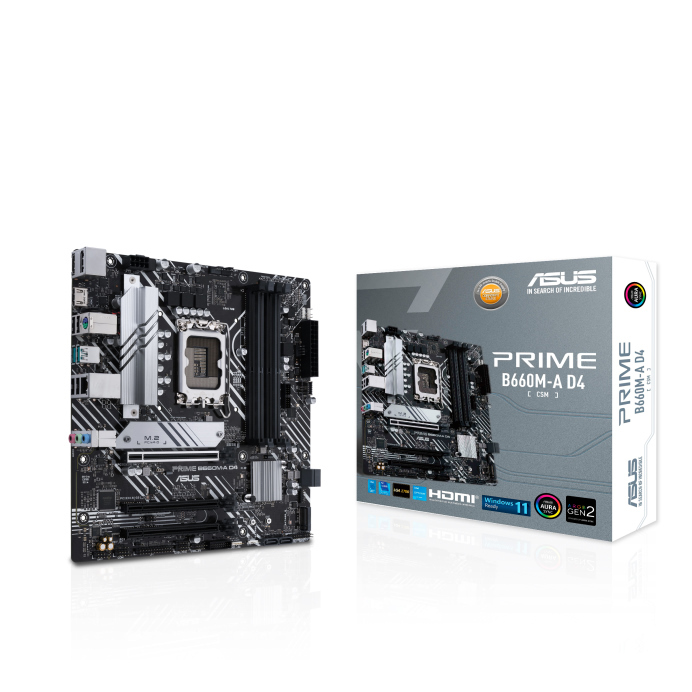

ASUS PRIME B660M-A D4-CSM Intel B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel 1Gb Ethernet, DP,2 x HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync


Intel LGA 1700 socket: Ready for 12th Gen Intel processors

Ultrafast connectivity : PCIe 4.0, Intel 1 Gb Ethernet ,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C

ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking

Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

ASUS Control Center Express(ACCE) to make IT endpoint management easier


CPU

Intel Socket LGA1700 for 12th Gen Intel Core„, Pentium Gold and Celeron Processors

Intel Socket LGA1700 for 12th Gen Intel Core„, Pentium Gold and Celeron Processors*

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**


Chipset Intel B660 Chipset


Memory

4 x DIMM, Max. 128GB, DDR4

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II


Graphics

1 x DisplayPort**

2 x HDMI ports***


Expansion Slots

Intel 12th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

Intel B660 Chipset *

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x16 slot (supports x1 mode)


Storage

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports


Ethernet

1 x Intel 1Gb Ethernet


Form Factor

microATX 24.4cm x 24.4cm

Specifications
SKU MBA-B660M-A-CSM-PRD4
Barcode # 4711081508045
Brand ASUS
Shipping weight 1.0400kg
Assembled length 0.266m
Assembled height 0.054m
Assembled width 0.270m

ASUS PRIME B660M-A D4-CSM Intel LGA 1700 mATX Motherboard PCIe 4.0, 2xM.2, Intel 1Gb Ethernet, DP, 2xHDMI, USB-C, Aura Sync

$234.32
RRP $279.00 save 16%

or 4 payments of $58.58 with Learn more

Sold Out

Product Information

SKU:

MBA-B660M-A-CSM-PRD4

Brand:

ASUS

Barcode #:

4711081508045

Shipping Weigth:

1.0400kg
