Description

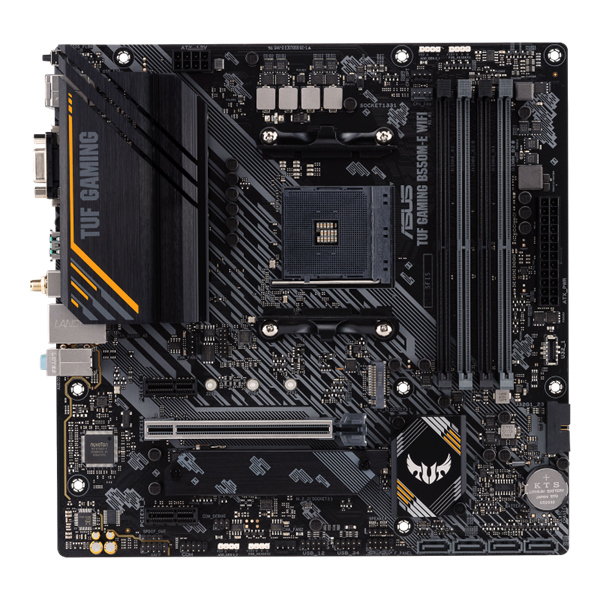

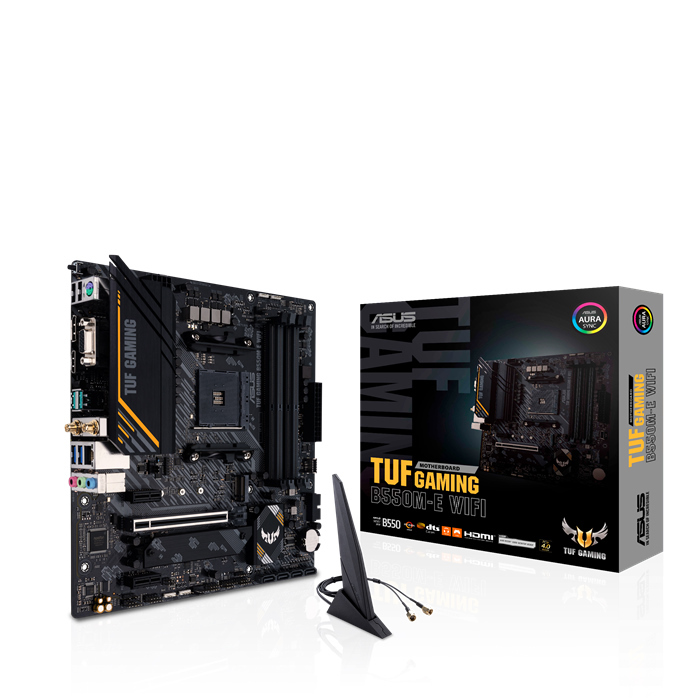

ASUS AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, Intel Wi-Fi 6, DisplayPort, HDMI, D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, front USB 3.2 Gen 1 Type-C, BIOS FlashBack„, and Aura Sync RGB lighting support


AMD AM4 Socket: Ready for Ryzen„ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Enhanced Power Solution: Alloy Chokes, military-grade TUF components, and DIGI+ VRM for maximum durability

Comprehensive Cooling: Large VRM heatsink, M.2 heatsink, PCH fanless heatsink, hybrid fan headers, and Fan Xpert 2+ utility

Ultrafast Connectivity: Dual M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, and front USB 3.2 Gen 1 Type-C support

Made for Online Gaming: Intel Wi-Fi 6, 1 Gb Ethernet, TUF LANGuard and Turbo LAN technology

Aura Sync RGB Lighting: Onboard addressable Gen 2 headers and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware


CPU

AMD Ryzen„ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors


Memory

Max Memory Size:128GB

4 x DIMM, Max. 128GB, DDR4


Graphics

1 x DisplayPort 1.2

1 x D-Sub

1 x HDMI„ 2.1 (4K@60Hz)


Expansion Slots

AMD Ryzen„ 5000 Series/ 3000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen„ 5000 G-Series/ 4000 G-Series Desktop Processors

1 x PCIe 3.0 x16 slot (supports x16 mode)

AMD B550 Chipset

2 x PCIe 3.0 x1 slots


Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports


Ethernet 1 x Realtek 1Gb Ethernet


Wireless & Bluetooth Intel Wi-Fi 6 AX200


mATX Form Factor ( 24.4 cm x 24.4 cm )

Specifications
SKU MBA-B550M-E-TUF-WF
Barcode # 4711081171140
Brand ASUS
Shipping weight 1.3200kg
Assembled length 0.278m
Assembled height 0.070m
Assembled width 0.274m

ASUS AMD B550 TUF GAMING B550M-E WIFI (Ryzen AM4) Micro ATX Gaming Motherboard PCIe 4.0, dual M.2,Intel Wi-Fi 6,DisplayPort,HDMI, D-Sub,SATA 6 Gbps
