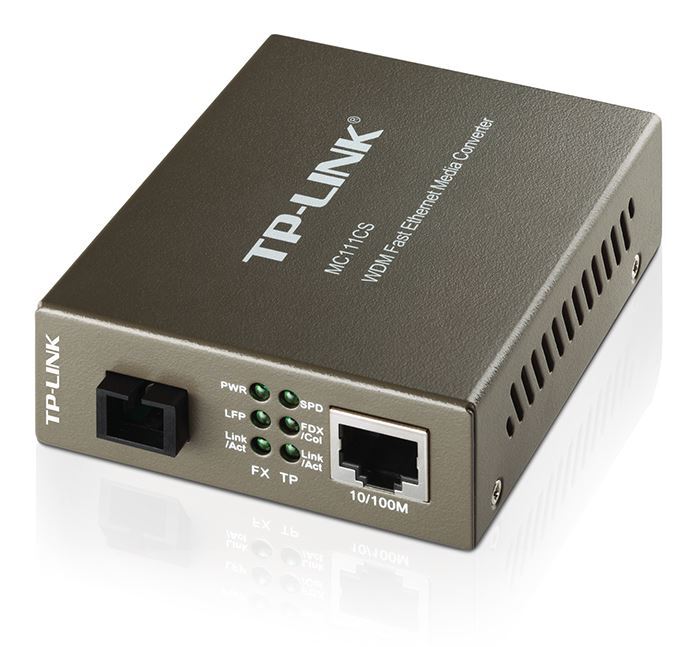

pTP-Link MC111CS 10 100Mbps WDM Media Converter
pp
ppComplies with 802.3u 10 100Base-TX 100Base-FX standards
ppLink Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
ppAdopts WDM technology transmitting and receiving data on one single fiber
pp
ppMEDIA CONVERTER MODULE
ppStandards and Protocols IEEE 802.3 IEEE 802.3u IEEE 802.3x
ppBasic Function Adopts WDM technology
ppHalf Full-Duplex transfer mode for FX port
ppFull Duplex Flow Control (IEEE 802.3x)
ppHalf Duplex Flow Control (Backpressure)
ppLink Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
ppExtends fiber distance up to 20km
ppPorts 1 100M SC UPC port
pp1 100M RJ45 port (Auto MDI MDIX)
ppWave Length 1550nm Tx 1310nm Rx
ppWDM TX 1550nm
ppWDM RX 1310nm
ppNetwork Media 10BASE-T UTP category 3 4 5 cable (maximum 100m)
ppEIA TIA-568 100Ω STP (maximum 100m)
ppNetwork Media 100BASE-T UTP category 5 5e cable (maximum 100m)
ppEIA TIA-568 100Ω STP (maximum 100m)
ppNetwork Media 100BASE-FX Single-mode Fiber
ppLED Indicators PWR FDX Col Link Act SPD
ppDimensions (WDH) 3.72.91.1 in. (94.573.027.0 mm)
ppPower Supply External Power Adapter
ppMax Power Consumption 2.49W
ppSafety Emission FCC CE RoHS
ppEnvironment Operating Temperature: 0„ƒ~40„ƒ (32„‰~104„‰)
ppStorage Temperature: -40„ƒ~70„ƒ (-40„‰~158„‰)
ppOperating Humidity: 10pct~90pct non-condensing
ppStorage Humidity: 5pct~90pct non-condensing
pp
ppWhat This Product Does
pp
ppThe MC111CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology MC111CS takes only one fiber cable to transmit and receive data which will save half cabling cost for you. Designed under IEEE 802.3u 10 100Base-TX and 100Base-FX standards the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving p
